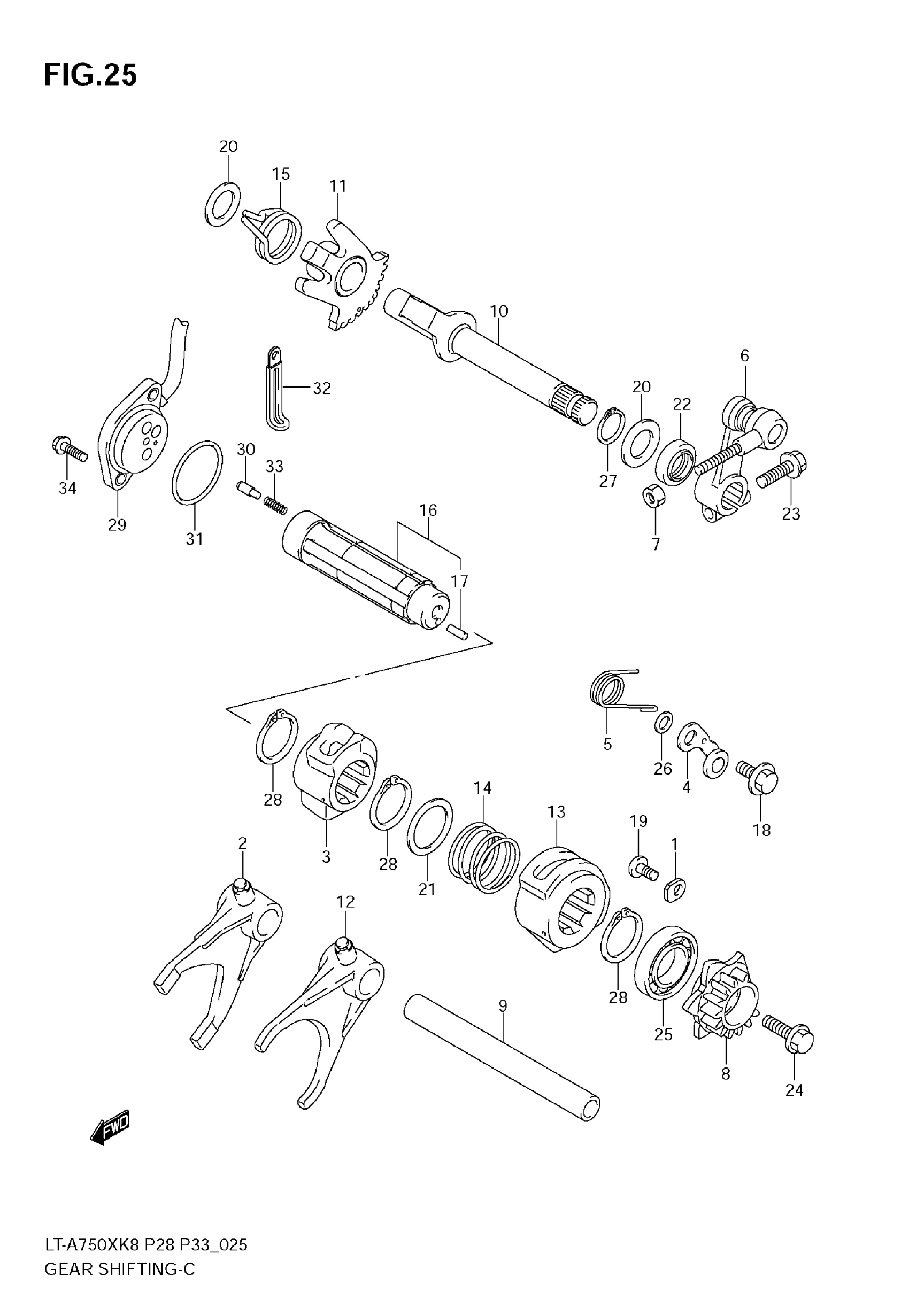

Suzuki LT-A750X (2009) GEAR SHIFTING Diagram

#

Description
Price

1

RETAINER, SUB T/M SHIFT CAM

24741-21A00

$2.80

2

FORK, REVERSE GR SHIFT This part replaces 25240-31G00.

25240-31G10

$67.61

3

CAM,REVERSE GEAR SHIFT

25321-31G00

$92.30

4

STOPPER, SHIFT CAM

25350-31G00

$11.02

5

SPRING,SHIFT

25355-35F01

$3.73

6

ARM,SELECT

25360-31G10

$90.32

7

NUT, GEAR SHIFT LINK

08310-0006B

$2.37

8

PLATE, GR SHIFT CAM STOPPER

25381-31G00

$30.30

9

SHAFT, SUB T/M GEAR SHIFT

25411-38A00

$33.02

10

SHAFT, SUB T/M SHIFT NO.2 This part replaces 25510-31G00.

25510-31G01

$101.72

11

GEAR, SUB T/M SHIFT

25540-31G00

$23.28

12

FORK, SUB T/M GEAR SHIFT This part replaces 29510-31G00.

29510-31G10

$101.90

13

CAM, SUB T/M GEAR SHIFT

29611-31G00

$86.47

14

SPRING, SUB T/M SHIFT FORK

29612-31G00

$3.70

15

SPRING, SHIFT ARM RETURN

29613-31G00

$7.95

16

SHAFT, SUB T/M GEAR SHIFT | Includes Item(s) 17

29620-31G01

Unavailable

17

PIN (4X13.8)

04221-04089

$1.10

18

BOLT, SUB T/M SHIFT CAM | 6X14.3

09111-06041

$2.63

19

SCREW, SHIFT RETAINER | 6X12

09125-06110

$2.13

20

WASHER, SUB T/M SHIFT S | 14X24X1.0

09181-14195

$3.30

21

WASHER, SHIFT CAM SPRING | 25X32X1.0

09181-25139

$2.80

22

SEAL, SUB T/M GEAR SHIFT | 14X22X6

09283-14006

$6.04

23

BOLT, GEAR SHIFT LEVER

01550-0620B

$2.38

24

BOLT, GR SHIFT CAM PLATE

01550-0620B

$2.38

25

BEARING, SUB T/M GEAR SHIFT

08110-69040

$44.68

26

WASHER, SHIFT CAM STOPPER

08211-06121

$1.56

27

CIRCLIP, SUB T/M GR SHIFT

08331-3114A

$1.89

28

CIRCLIP, GEAR SHIFT CAM

08331-3125A

Unavailable

29

BASE ASSY, GEAR SHIFT TERM

37720-31G00

$126.22

30

CONTACT, GEAR SHIFT SW

09209-05011

$2.02

31

O-RING, GEAR SHIFT SW | D:2.4,ID:35.5

09280-35006

$2.80

32

CLAMP, GEAR SHIFT SW LEVER | L:45

09404-06429

$1.82

33

SPRING, GEAR SHIFT SW

09440-04010

$1.52

34

BOLT, GEAR SHIFT SW

07120-0516A

$1.72
