2009 Suzuki LT-A750X Front Fender Diagram

← All diagrams

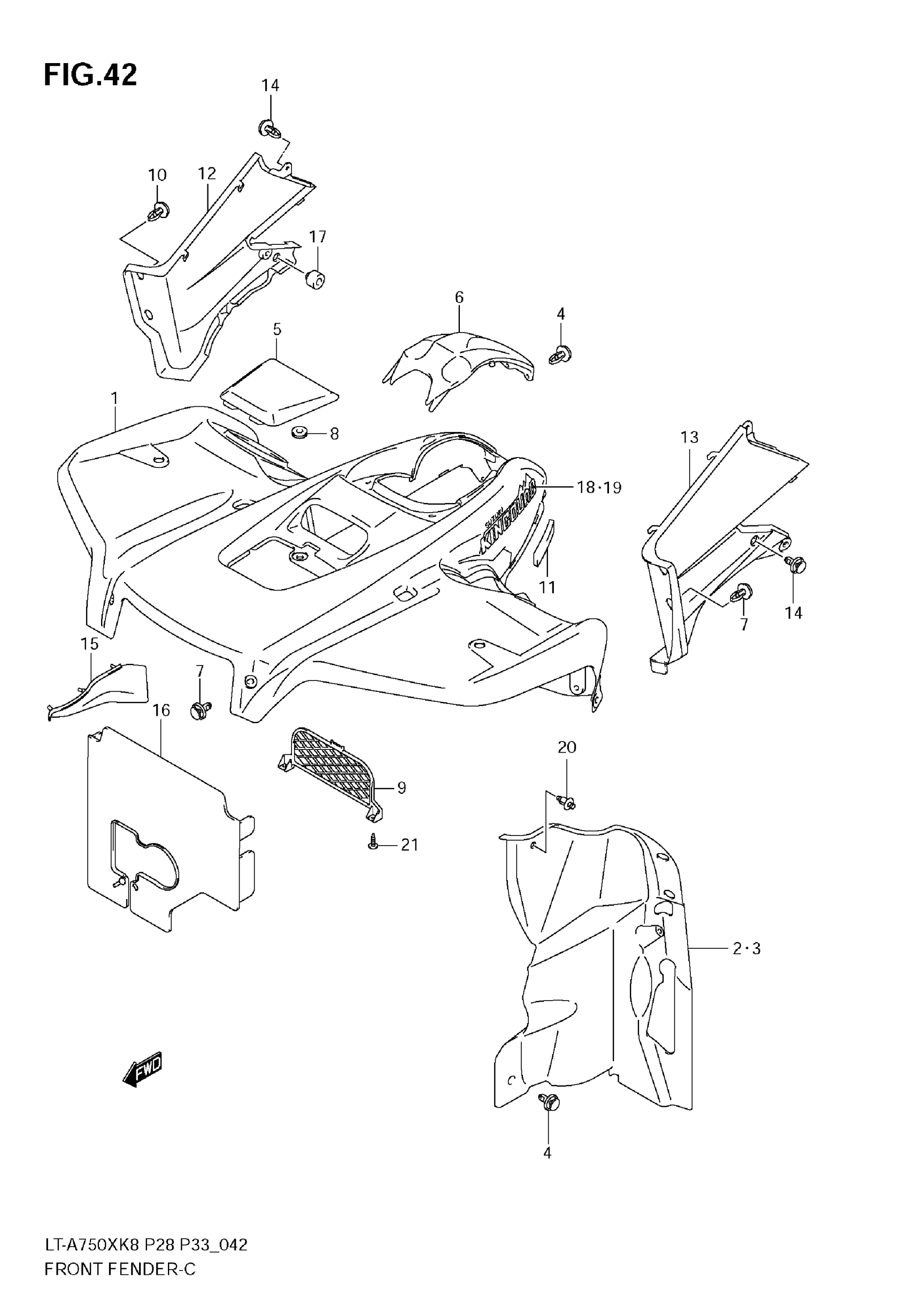

Find the part on the Front Fender diagram for your 2009 Suzuki LT-A750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A750X Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (RED) This part replaces 53111-31G01-YT9.

53111-31G13-YT9

1
Out of stock

1

FENDER, FRONT (BLACK) This part replaces 53111-31G01-YLZ.

53111-31G03-YLZ

1
Out of stock

1

FENDER, FRONT (GREEN) This part replaces 53111-31G01-YLG.

53111-31G03-YLG

1
Out of stock

1

FENDER, FRONT (YELLOW) | MODEL K8 P28 This part replaces 53111-31G01-YU1.

53111-31G03-YU1

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 53111-31GC1-YKL.

53111-31GC3-YKL

1
Out of stock

1

FENDER, FRONT (CAMOUFLAGE) | MODEL K9 This part replaces 53111-31GC1-YVA.

53111-31GC3-YVA

1
Out of stock

1

NO DESCRIPTION AVAILABLE | LT-A750XZK8/XZK9 This part replaces 53111-31G20-YUW.

53111-31G32-YUW

1
Out of stock

2

MUD FLAP,FENDER This part replaces 53421-31G00.

53421-31G03

1
Out of stock

3

MUDFLAP, FENDER INNER RH This part replaces 53411-31G00.

53411-31G02

1
Out of stock

4

CLIP

09409-08335

4
Out of stock

5

LID, FENDER FRONT (RED) This part replaces 53341-31G00-YT9.

53341-31G06-YT9

1
Out of stock

5

LID,FENDER FRON This part replaces 53341-31G00-YLZ.

53341-31G05-YLZ

1
Out of stock

5

LID, FENDER FRONT (GREEN) This part replaces 53341-31G00-YLG.

53341-31G06-YLG

1
Out of stock

5

LID,FRONT FENDE | MODEL K8 E28 This part replaces 53341-31G00-YU1.

53341-31G04-YU1

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 53341-31GC0-YKL.

53341-31GC1-YKL

1
Out of stock

5

LID,FR FENDER | MODEL K9 This part replaces 53341-31GC0-YVA.

53341-31GC3-YVA

1
Out of stock

5

NO DESCRIPTION AVAILABLE | LT-A750XZK8/XZK9 This part replaces 53341-31G10-YUW.

53341-31G11-YUW

1
Out of stock

6

FENDER,CENTER This part replaces 53119-31G00-YT9.

53119-31G05-YT9

1
Out of stock

6

FENDER,CENTER This part replaces 53119-31G00-YLZ.

53119-31G05-YLZ

1
Out of stock

6

FENDER,CENTER This part replaces 53119-31G00-YLG.

53119-31G05-YLG

1
Out of stock

6

FENDER,CENTER | MODEL K8 E28 This part replaces 53119-31G00-YU1.

53119-31G03-YU1

1
Out of stock

6

FENTER,CENTER(C This part replaces 53119-31GC0-YKL.

53119-31GC2-YKL

1
Out of stock

6

FENDER, CENTER (CAMOUFLAGE) | MODEL K9 This part replaces 53119-31GC0-YVA.

53119-31GC2-YVA

1
Out of stock

6

FENDER,CNTR(SP | LT-A750XZK8/XZK9 This part replaces 53119-31G10-YUW.

53119-31G12-YUW

1
Out of stock

7

CLIP

09409-08335

8
Out of stock

8

CUSHION

09320-08018

1
Out of stock

9

COVER,INNER This part replaces 53212-31G00.

53212-31G03

1
Out of stock

10

CLIP

09409-08335

2
Out of stock

11

CUSHION, FENDER SIDE

53145-07G01

2
Out of stock

12

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

1
Out of stock

13

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

1
Out of stock

14

CLIP

09409-08335

3
Out of stock

15

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

1
Out of stock

16

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

1
Out of stock

17

CUSHION

09321-10019

1
Out of stock

18

EMBLEM,FR FENDE This part replaces 68151-31G50-ETA.

68151-31GC1-EFG

1
Out of stock

19

EMBLEM,LH This part replaces 68152-31G50-ETA.

68152-31GC1-EFG

1
Out of stock

20

CLIP

09409-07333

2
Out of stock

21

SCREW

03241-0516B

2
Out of stock
