2009 Suzuki LT-A750X Cylinder Head Diagram

← All diagrams

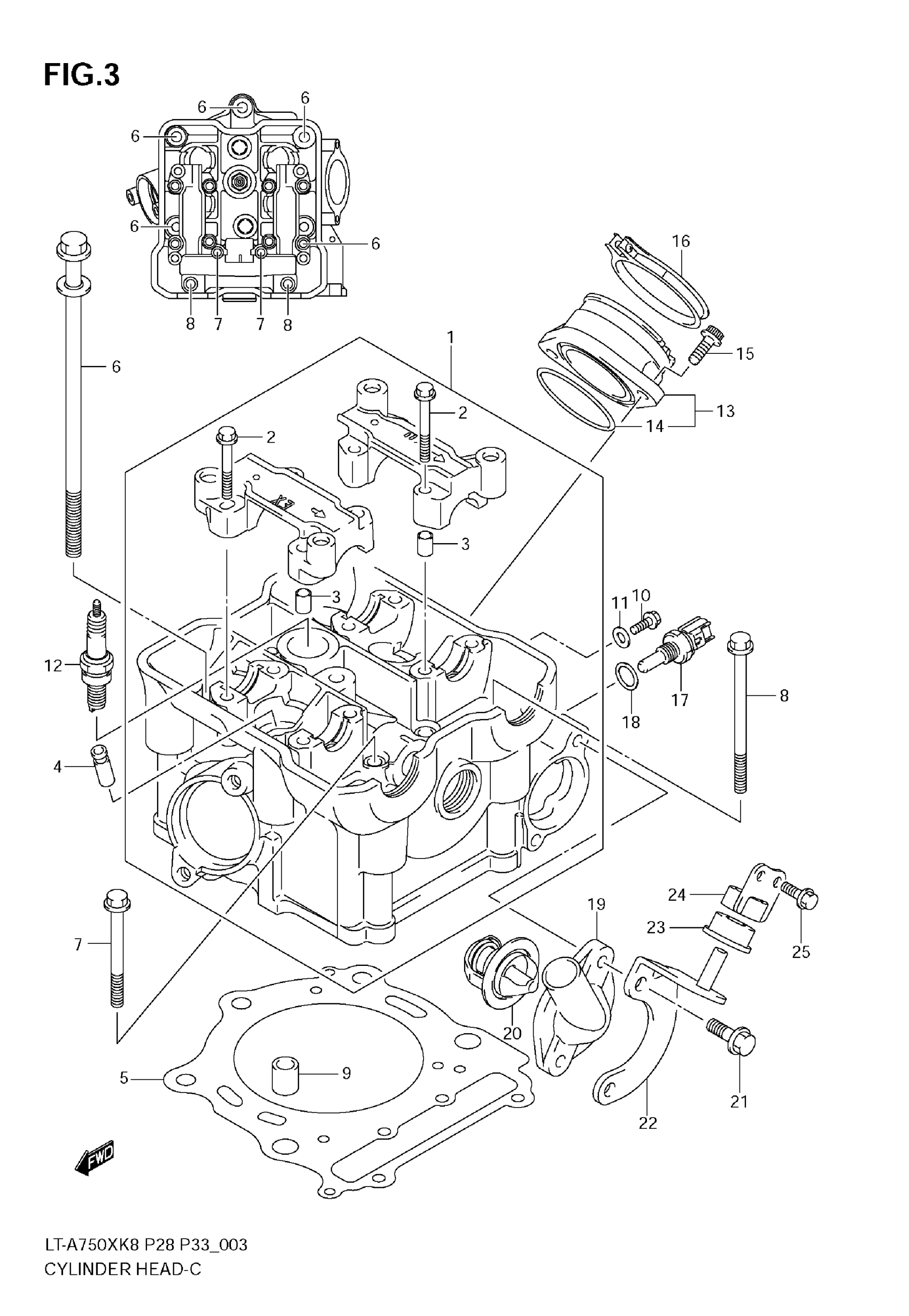

Find the part on the Cylinder Head diagram for your 2009 Suzuki LT-A750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A750X Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,599.55

In stock

2

BOLT, 6X40

09103-06266

8
Out of stock

3

PIN, 6.2X8X11

09206-08001

4
Out of stock

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

4
Out of stock

5

GASKET, CYLINDER HEAD

11141-31G50

1

$44.25

In stock

6

5

$15.50

In stock

7

BOLT, 6X100

09103-06060

2
Out of stock

8

BOLT, 6X70

09103-06103

2
Out of stock

9

PIN

04211-13189

2
Out of stock

10

PLUG

07120-0612B

1

$3.00

In stock

11

GASKET, 5.8X13X1.2

09168-06023

1
Out of stock

12

PLUG, SPARK (CR6E)

09482-00528

1

$6.17

In stock

12

1

$7.93

In stock

12

1

$6.43

In stock

12

1

$6.03

In stock

12

1

$6.17

In stock

12

1

$5.91

In stock

12

1

$6.17

In stock

12

1

$6.03

In stock

12

PLUG, SPARK (CR6EIA-9) | OPT

09482-00590

1
Out of stock

14

O RING

13118-31G00

1

$5.29

In stock

15

BOLT, INTAKE PIPE

09106-06105

2

$2.92

In stock

16

CLAMP, INTAKE PIPE

09402-62208

1

$6.47

In stock

17

SENSOR, WATER PUMP

13650-10G00

1

$86.96

In stock

18

GASKET, WATER TEMP SENSOR

09168-12017

1
Out of stock

19

COVER

17661-31G00

1

$53.58

In stock

20

1

$25.68

In stock

21

BOLT

01550-0825A

2

$2.48

In stock

22

1

$22.87

In stock

23

DAMPER, ENG MTG

11654-31G00

1

$3.33

In stock

24

1

$19.68

In stock

25

BOLT (8X12)

01550-0812A

2
Out of stock
