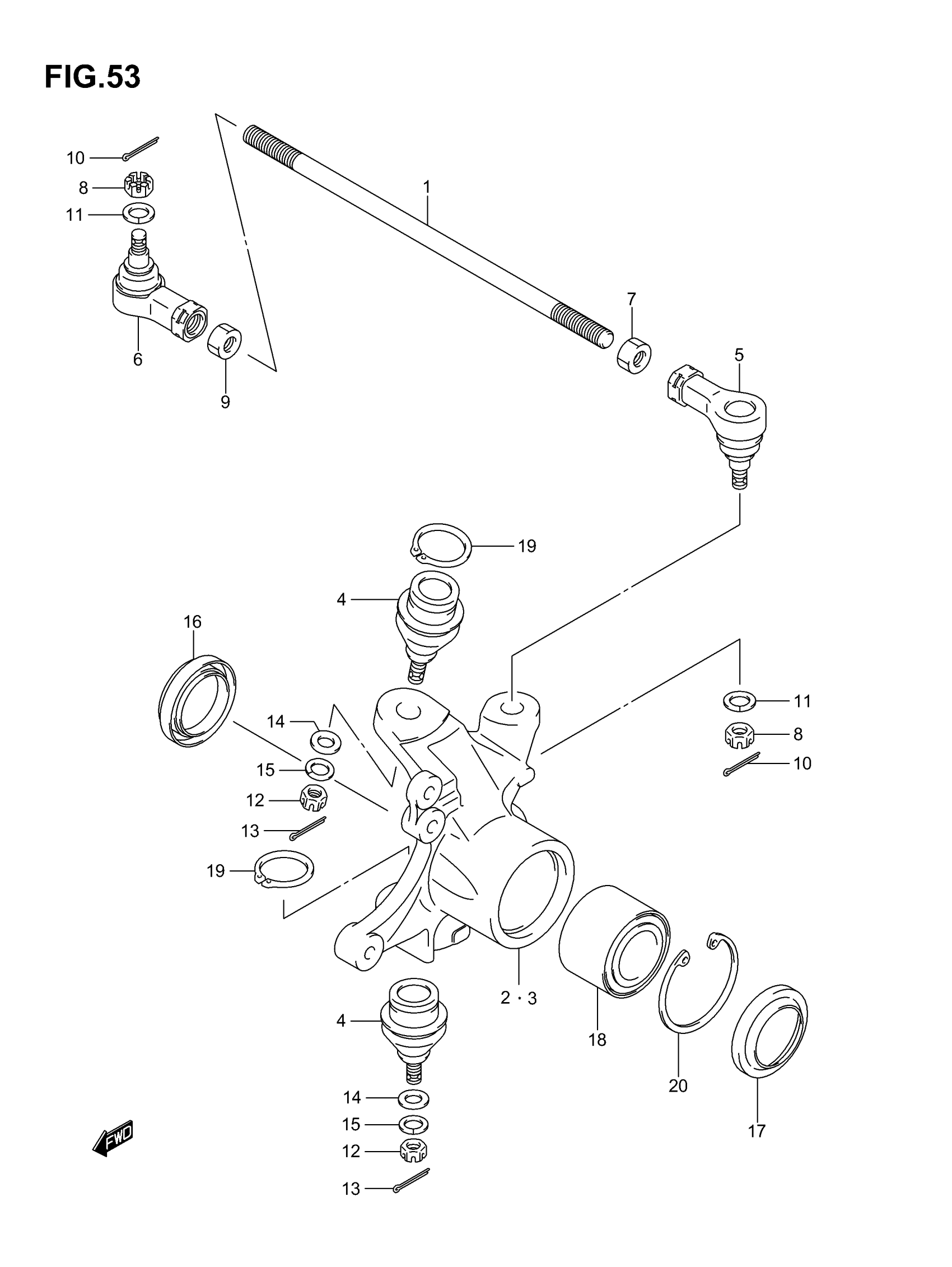

Suzuki LT-A700X (2007) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-31G01

$43.52

2

KNUCKLE, STEERING RH | %F.NO.5SAAP41A67110000

51231-31G00

$405.58

2

KNUCKLE, STEERING RH | F.NO.5SAAP41A67110001% This part replaces 51231-31G10.

51231-31G00

$405.58

3

KNUCKLE, STEERING LH | %F.NO.5SAAP41A67110000

51241-31G00

$386.95

3

KNUCKLE, STEERING LH | F.NO.5SAAP41A67110001% This part replaces 51241-31G10.

51241-31G00

$386.95

4

END, KNUCKLE STEERING | %F.NO.5SAAP41A67110000 This part replaces 51210-31G00.

51210-31G10

$60.19

4

END, KNUCKLE STEERING | F.NO.5SAAP41A67110001%

51210-31G10

$60.19

5

ROD, END RH | %F.NO.5SAAP41A67110000 This part replaces 51260-31G00.

51260-31G10

$51.15

5

ROD, END, R | F.NO.5SAAP41A67110001%

51260-31G10

$51.15

6

ROD, END LH | %F.NO.5SAAP41A67110000 This part replaces 51270-31G00.

51270-31G10

$49.73

6

ROD, END, L | F.NO.5SAAP41A67110001%

51270-31G10

$49.73

7

NUT, TIE ROD (RH THREAD)

09140-12030

$2.80

8

NUT This part replaces 08314-40103.

08314-4010B

$2.50

9

NUT, TIE ROD (LH THREAD)

09140-12035

$2.80

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

11

WASHER, ROD END | MODEL K6

09162-10008

$2.80

11

WASHER, ROD END | MODEL K7

09162-10010

$4.03

12

NUT This part replaces 08314-40103.

08314-4010B

$2.50

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

14

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.83

15

WASHER, KNUCKLE END LOCK | MODEL K6

09162-10008

$2.80

15

WASHER, KNUCKLE END LOCK | MODEL K7

09162-10010

$4.03

16

DUST SEAL, INNER (38X55X8)

09283-38012

$13.30

17

DUST SEAL, OUTER (38X55X6)

09285-38002

$12.53

18

BEARING This part replaces 51259-31G00.

51259-31G10

$93.53

19

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.59

20

CLIP

08331-41559

$3.38
