2007 Suzuki LT-A700X Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2007 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

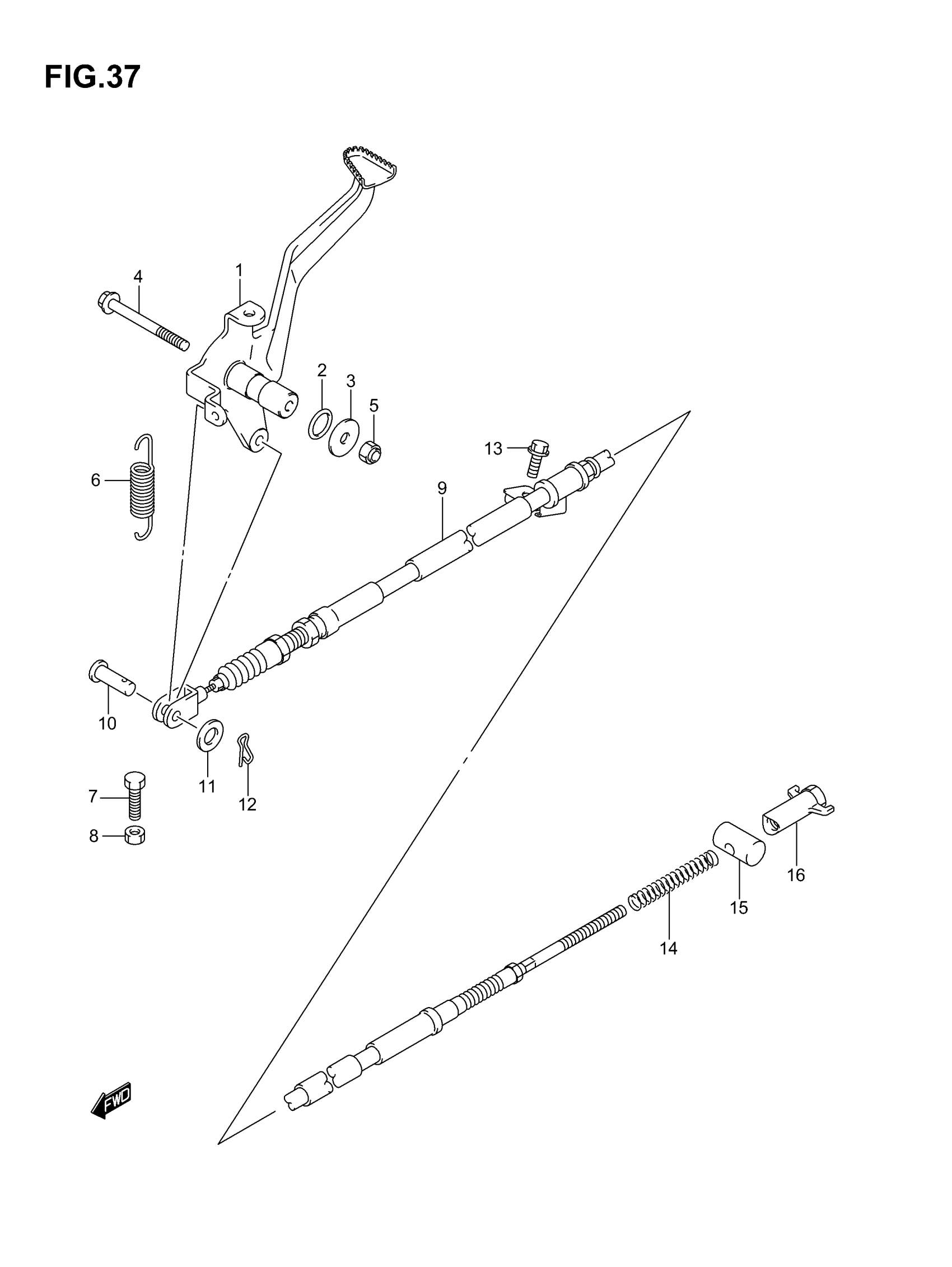

2007 Suzuki LT-A700X Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-31G00

1
Out of stock

2

O RING

09280-14011

2
Out of stock

3

WASHER

09160-06138

1
Out of stock

4

1

$3.13

In stock

5

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

6

SPRING, RETURN

09443-12019

1
Out of stock

7

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

8

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

9

CABLE, REAR BRAKE

58510-31G00

1
Out of stock

10

PIN, FRONT

09200-05001

1
Out of stock

11

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

12

COTTER PIN

09385-06012

1
Out of stock

13

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

14

SPRING

09440-08042

1
Out of stock

15

PIN

09209-13006

1
Out of stock

16

NUT

09150-06015

1
Out of stock
