Description

Price

1

PIPE ASSY, EXH

14100-31G01

$372.52

2

GASKET, EXH PIPE

14181-29E02

$15.68

3

STUD BOLT | MODEL K6 This part replaces 01421-08203.

01421-0820A

$1.99

3

BOLT, STUD | MODEL K7

01421-0820B

$1.98

4

NUT This part replaces 08319-31083.

08319-3108A

$2.38

5

BODY, MUFFLER

14310-31G02

$897.87

6

CONNECTOR, MUFFLER JOINT This part replaces 14771-31G00.

14771-45G00

$24.63

7

BOLT This part replaces 07120-08353.

07120-0835B

$4.98

8

WASHER, 8.5X30X2.3

09160-08503

$2.61

9

SPACER, 8.6X12X24.2

09180-08152

$5.42

10

CUSHION, MUF SPRT

09320-12071

$8.67

11

BOLT This part replaces 07120-08403.

07120-0840A

$3.19

12

COVER, MUFFLER

14880-31G00

$215.27

13

WASHER, MUF COVER

14184-07G00

$1.93

14

SPACER, MUF COVER

14185-07G00

$3.70

15

CUSHION

09320-08069

$7.93

16

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

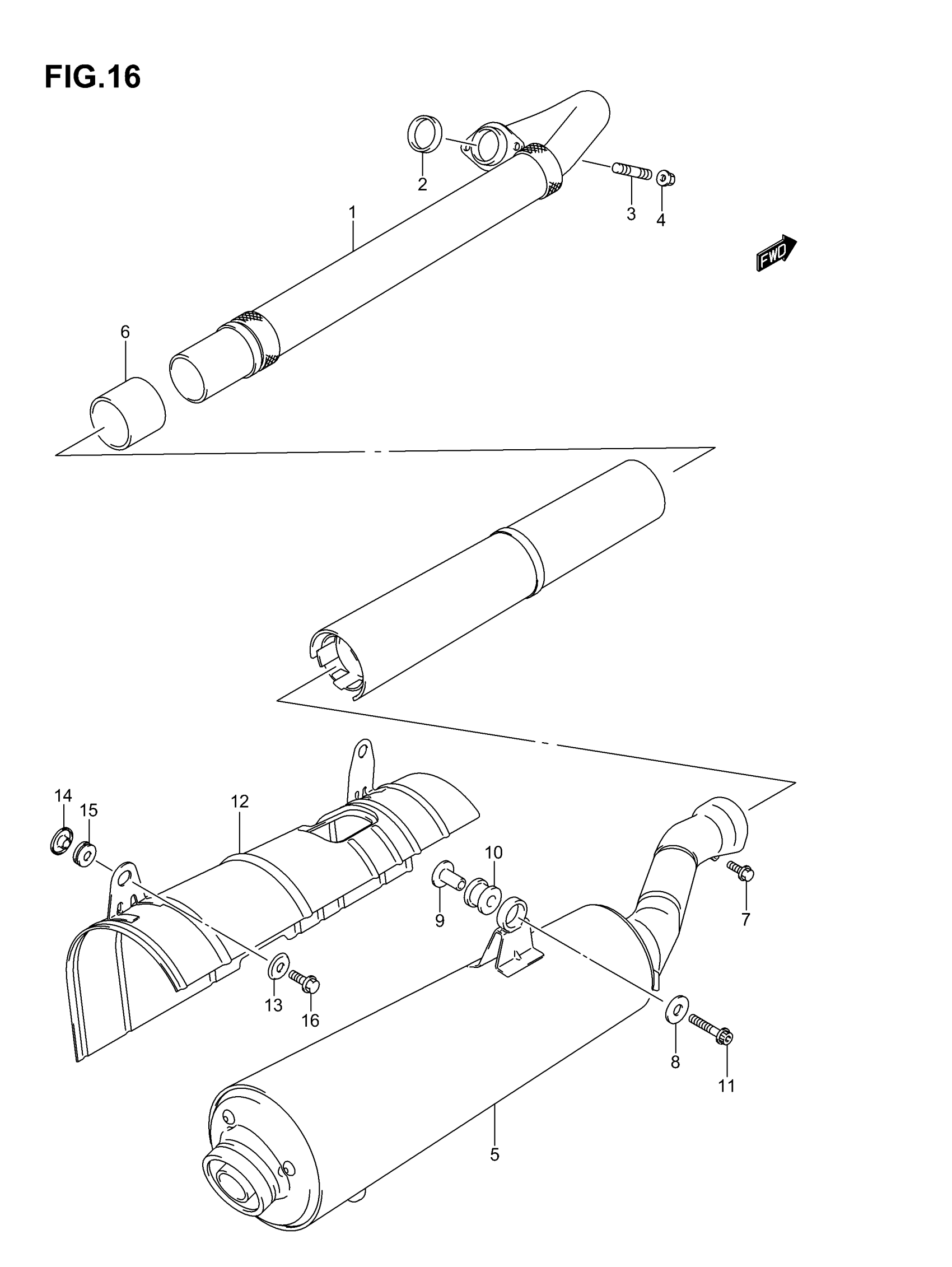

Suzuki LT-A700X (2007) MUFFLER Diagram
