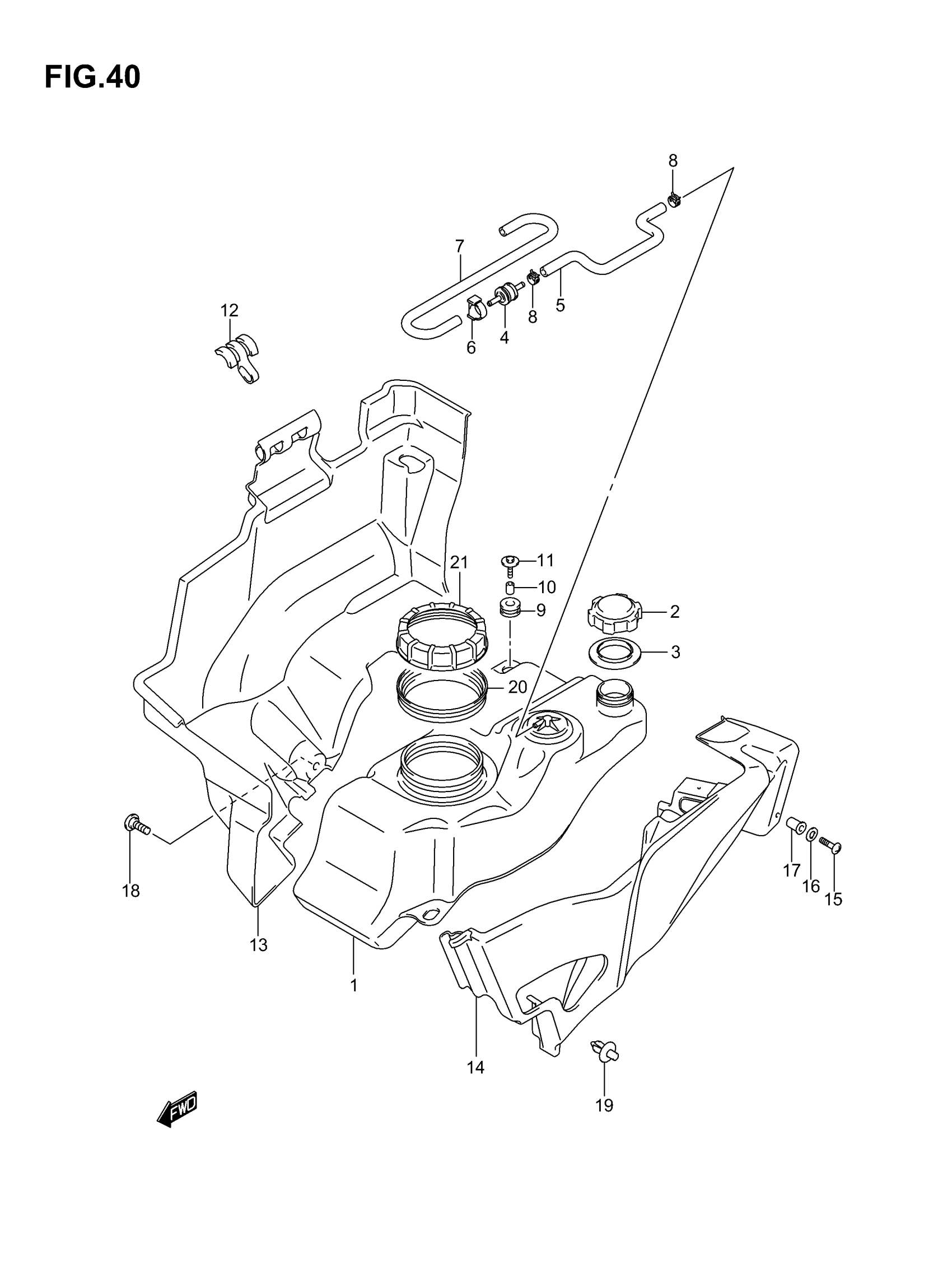

Find the part on the Fuel Tank diagram for your 2007 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A700X Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL

44100-31G00

1
Out of stock

2

CAP ASSY, FUEL TANK

44200-31G00

1
Out of stock

3

RUBBER,FUEL TAN This part replaces 44261-31G00.

44261-31G01

1
Out of stock

4

VALVE,2 WAY CHECK

85451-75100

1
Out of stock

5

HOSE,CHECK VALV This part replaces 44425-31G00.

44425-31G01

1
Out of stock

6

CUSHION, CHECK VALVE This part replaces 44881-31G00.

44881-31G01

1
Out of stock

7

HOSE,FUEL TANK This part replaces 44434-31G00.

44434-31G01

1
Out of stock

8

CLIP

09401-08409

3
Out of stock

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

3
Out of stock

10

SPACER

09180-06293

3
Out of stock

11

BOLT

09116-06050

3
Out of stock

12

CUSHION, SIDE

44541-31G00

1
Out of stock

13

COVER, LOWER | %F.NO.5SAAP41A67110000 This part replaces 44390-31G00.

44390-31G10

1
Out of stock

13

COVER, LOWER | F.NO.5SAAP41A67110001%

44390-31G10

1
Out of stock

14

COVER, OUTER

44391-31G00

1
Out of stock

15

SCREW, REAR This part replaces 02142-05203.

02142-0520B

1
Out of stock

16

WASHER

09160-05046

1
Out of stock

17

NUT

09159-05019

1
Out of stock

18

SCREW

09139-06137

1
Out of stock

19

CLIP

09409-07333

2
Out of stock

20

PACKING,FUEL PU This part replaces 44596-10G00.

44596-10G01

1
Out of stock

21

RETAINER, FUEL PUMP

44597-10G00

1
Out of stock
