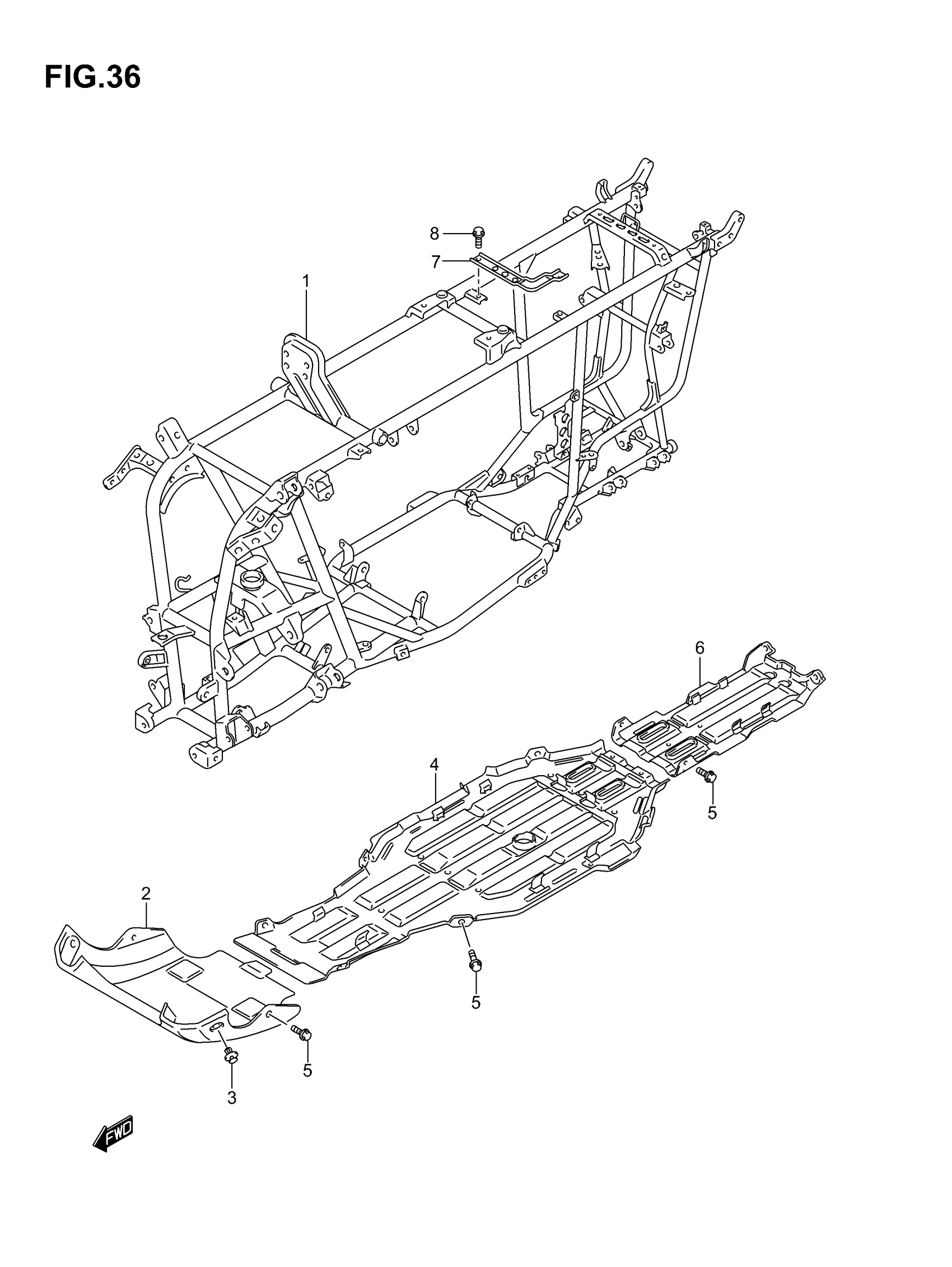

Suzuki LT-A700X (2007) FRAME Diagram

#

Description

Price

1

FRAME (BLACK) | %F.NO.5SAA41A67110000 This part replaces 41100-31G10-019.

41100-31GD0-019

$1,879.15

1

FRAME (BLACK) | F.NO.5SAAP41A67110001% This part replaces 41100-31GA0-019.

41100-31GD0-019

$1,879.15

1

FRAME (BLACK) | MODEL K7 This part replaces 41100-31GA1-019.

41100-31GD0-019

$1,879.15

2

PROTECTOR, FRONT (BLACK)

42521-31G00-291

$57.52

3

CLIP

09409-08335

$2.44

4

PROTECTOR, ENGINE This part replaces 42511-31G01.

42511-31G04

$43.30

5

SCREW, PROTECTOR

09111-06085

$4.16

6

PROTECTOR, REAR This part replaces 42531-31G00.

42531-31G01-291

$29.74

7

PLATE, BATTERY This part replaces 41561-31G00.

41561-31G01

$7.82

8

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
