Description

Price

1

PIPE ASSY, EXH This part replaces 14100-31G00.

14100-31G01

$372.52

2

GASKET, EXH PIPE

14181-29E02

$15.00

3

STUD BOLT This part replaces 01421-08203.

01421-0820A

$1.92

4

NUT This part replaces 08319-31083.

08319-3108A

$2.31

5

BODY, MUFFLER This part replaces 14310-31G00.

14310-31G02

$897.87

6

CONNECTOR, MUFFLER JOINT This part replaces 14771-31G00.

14771-45G00

$23.57

7

BOLT This part replaces 07120-08353.

07120-0835B

$4.98

8

WASHER, 8.5X30X2.3

09160-08503

$2.53

9

SPACER, 8.6X12X24.2

09180-08152

$5.26

10

CUSHION, MUF SPRT

09320-12071

$8.37

11

BOLT This part replaces 07120-08403.

07120-0840A

$3.08

12

COVER, MUFFLER

14880-31G00

$215.27

13

WASHER, MUF COVER

14184-07G00

$1.93

14

SPACER, MUF COVER

14185-07G00

$3.53

15

CUSHION

09320-08069

$7.67

16

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

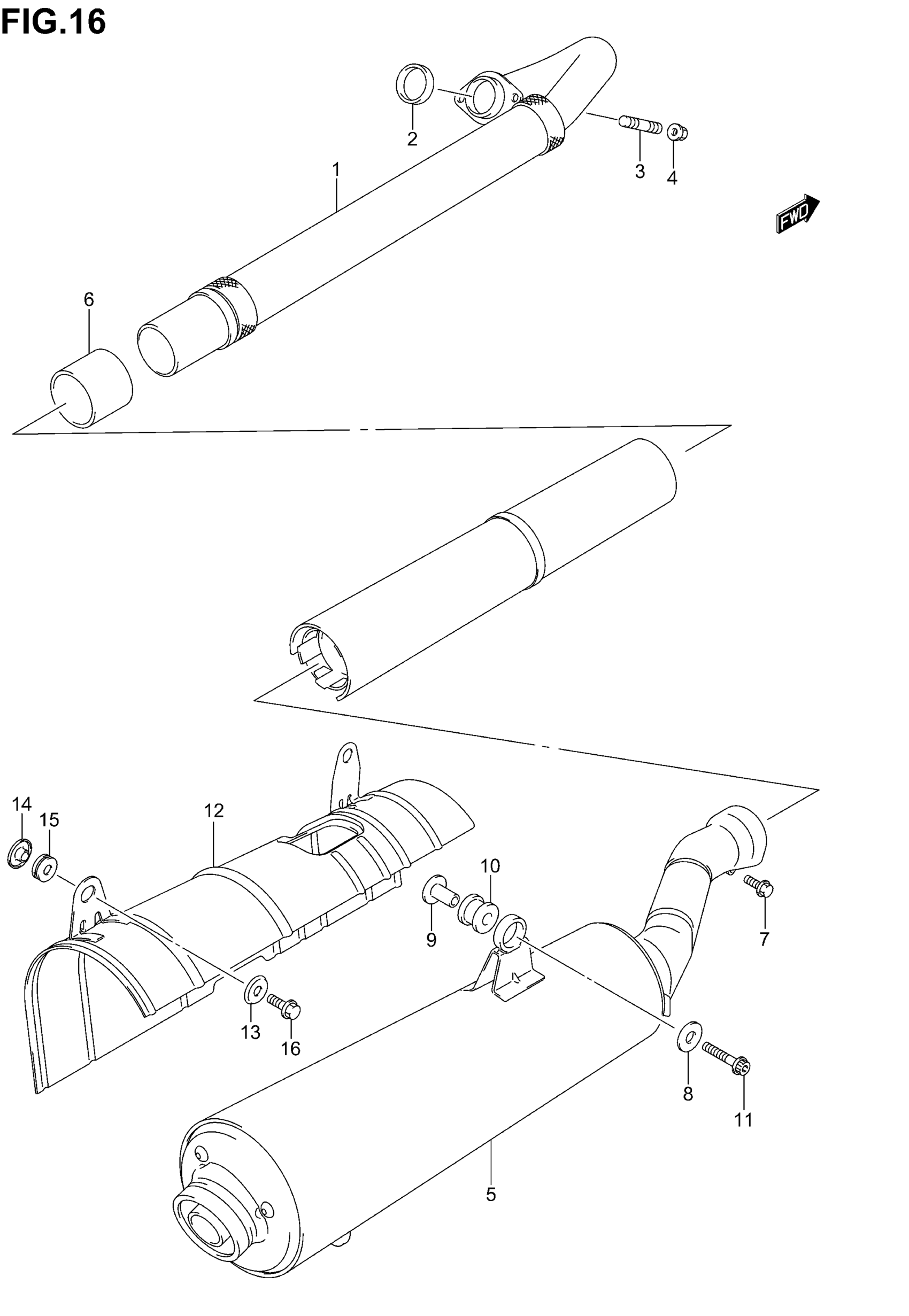

Suzuki LT-A700X (2005) MUFFLER Diagram
