2012 Suzuki LT-A500XPZL2 Throttle Body Diagram

← All diagrams

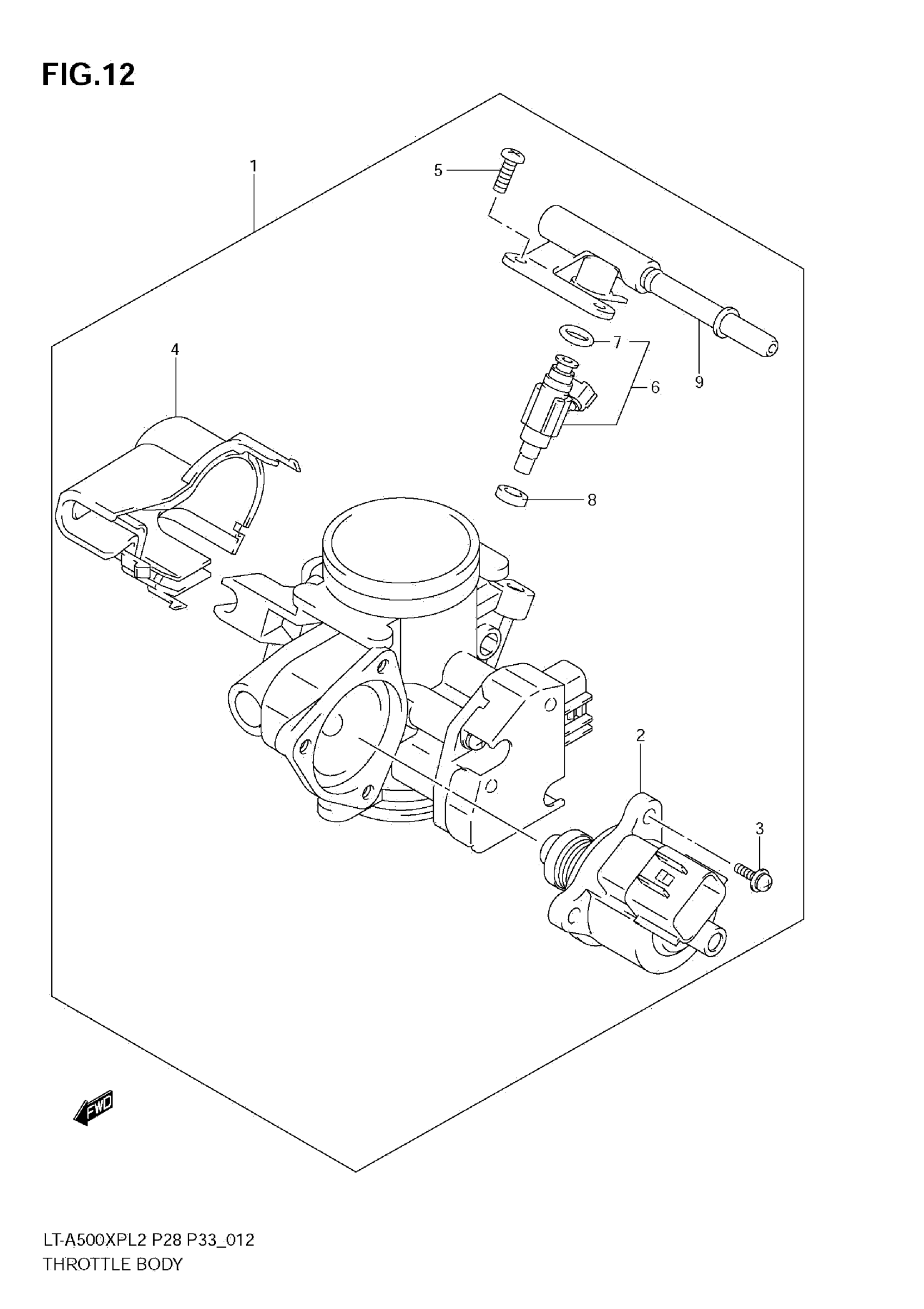

Find the part on the Throttle Body diagram for your 2012 Suzuki LT-A500XPZL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A500XPZL2 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROT This part replaces 13400-31H00.

13400-31H03

1
Out of stock

2

MOTOR, ISC STEPPING

13520-31G00

1
Out of stock

3

SCREW

13601-13G00

3
Out of stock

4

COVER

13578-31G00

1
Out of stock

5

SCREW

13602-06128

2
Out of stock

6

INJECTOR ASSY, FUEL

15710-11H00

1
Out of stock

7

O RING

15717-16G00

1
Out of stock

8

SEAL

15722-29G00

1
Out of stock

9

DELIVERY PIPE

15731-31G00

1
Out of stock
