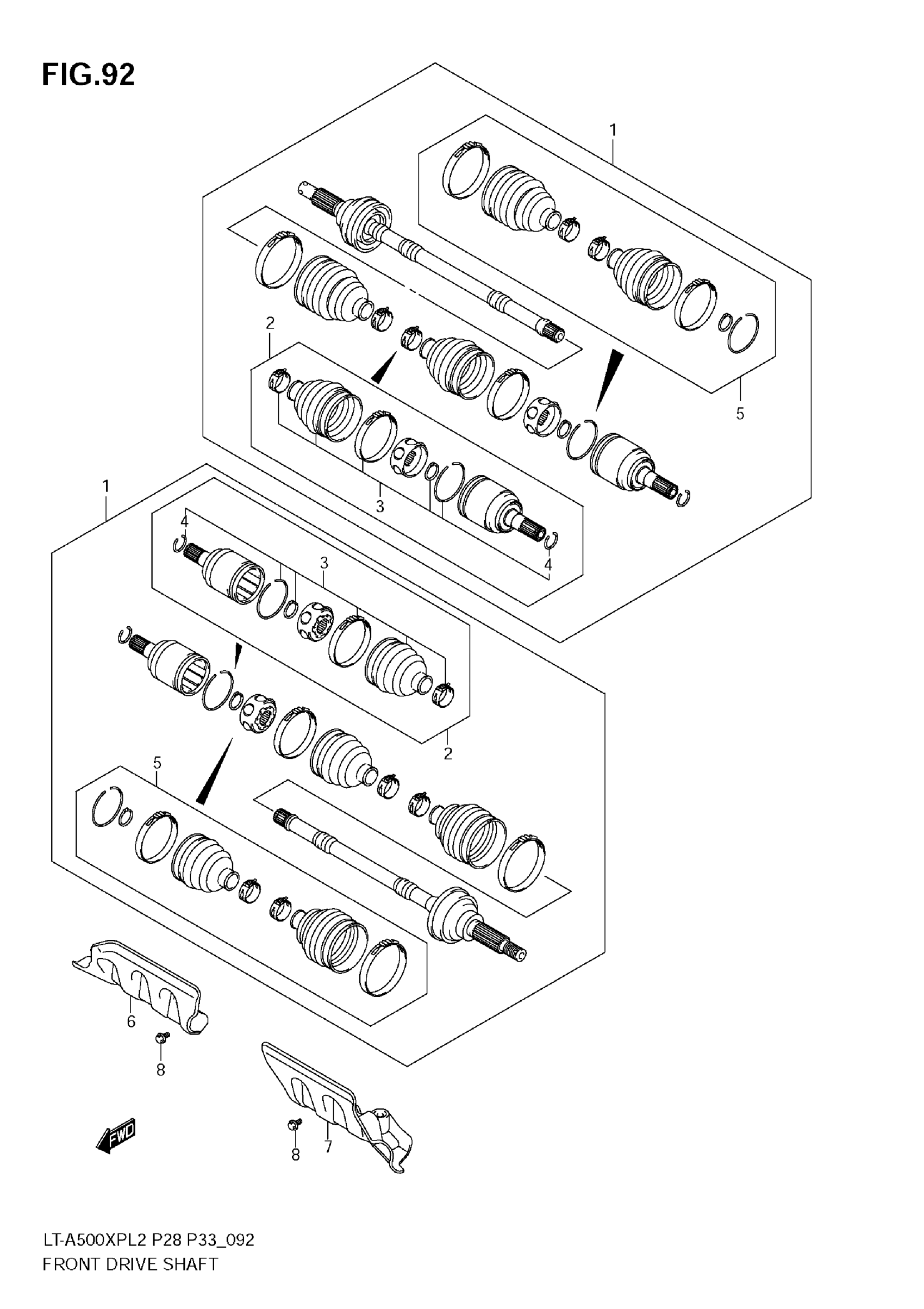

Suzuki LT-A500XPZL2 (2012) FRONT DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY, FRONT DRIVE This part replaces 54901-31G30.

54901-31G31

$368.83

2

.JOINT SET This part replaces 54933-31G20.

54933-31G21

$300.88

3

..BOOT SET, INNER This part replaces 54931-31G12.

54931-31G13

$87.33

4

CIRCLIP

54925-19B01

$7.22

5

.BOOT SET, OUTER This part replaces 54930-31G20.

54930-31G21

$152.95

6

PROTECTOR,FR DRIVE SHAFT,R This part replaces 54903-31G00.

54903-31G01

$20.59

7

PROTECTOR,FR DRIVE SHAFT,L This part replaces 54904-31G00.

54904-31G01

$29.42

8

BOLT (6X12)

09111-06085

$4.16
