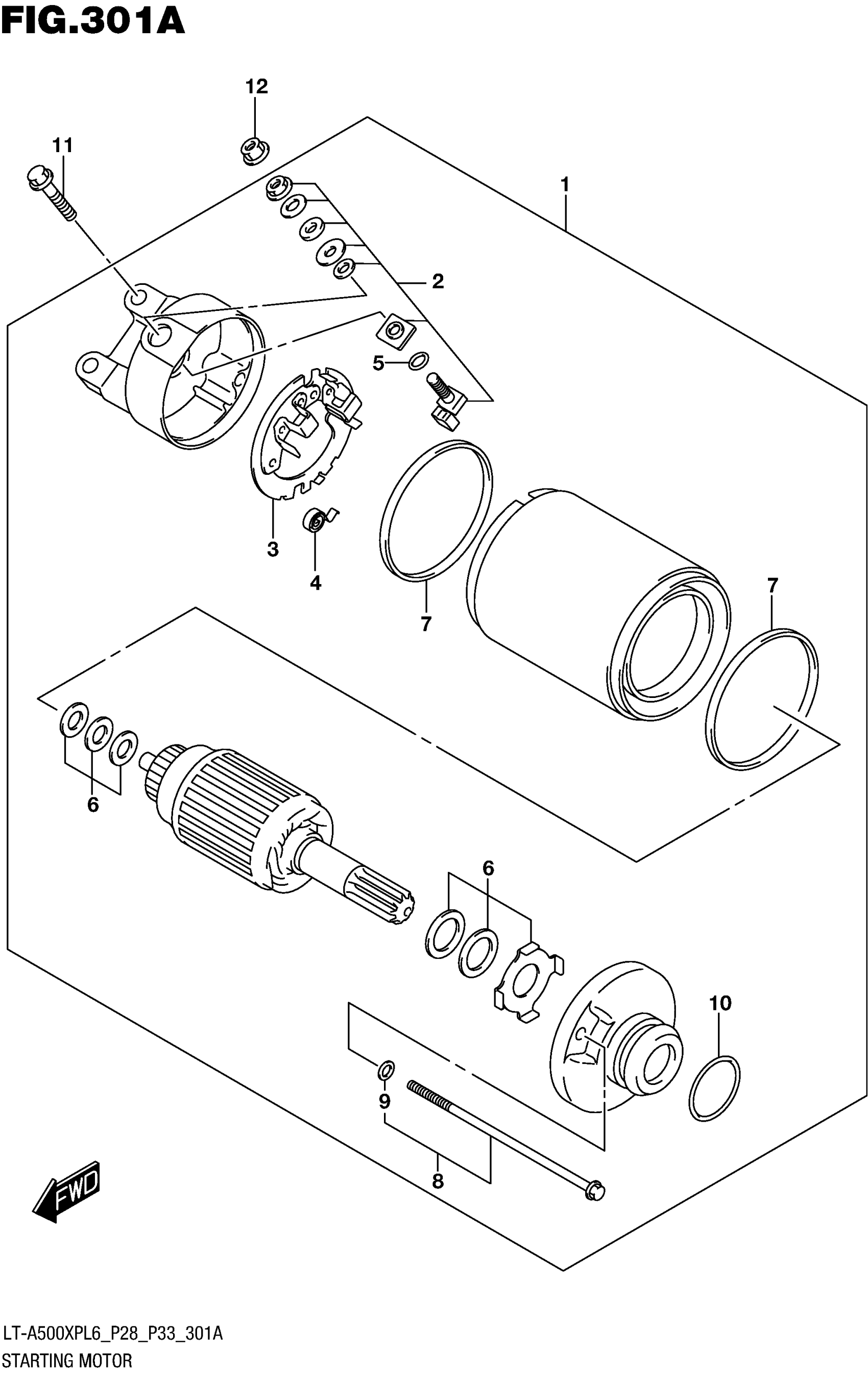

Suzuki LT-A500XPL6 (2016) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-11H00

$602.92

2

.TERMINAL SET, BRUSH

31130-13E00

$42.27

3

.HOLDER SET, BRUSH

31132-13E00

$54.28

4

.SPRING, BRUSH

31135-31300

$6.57

5

.O RING

31143-49040

$4.92

6

.WASHER SET

31170-19B10

$14.18

7

.O RING

31264-13E00

$6.57

8

.SET BOLT

31280-19F00

$23.08

9

..O RING

31156-13E00

$4.92

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.61

11

BOLT

01547-0625A

$2.09

12

NUT

08361-3506A

$1.88
