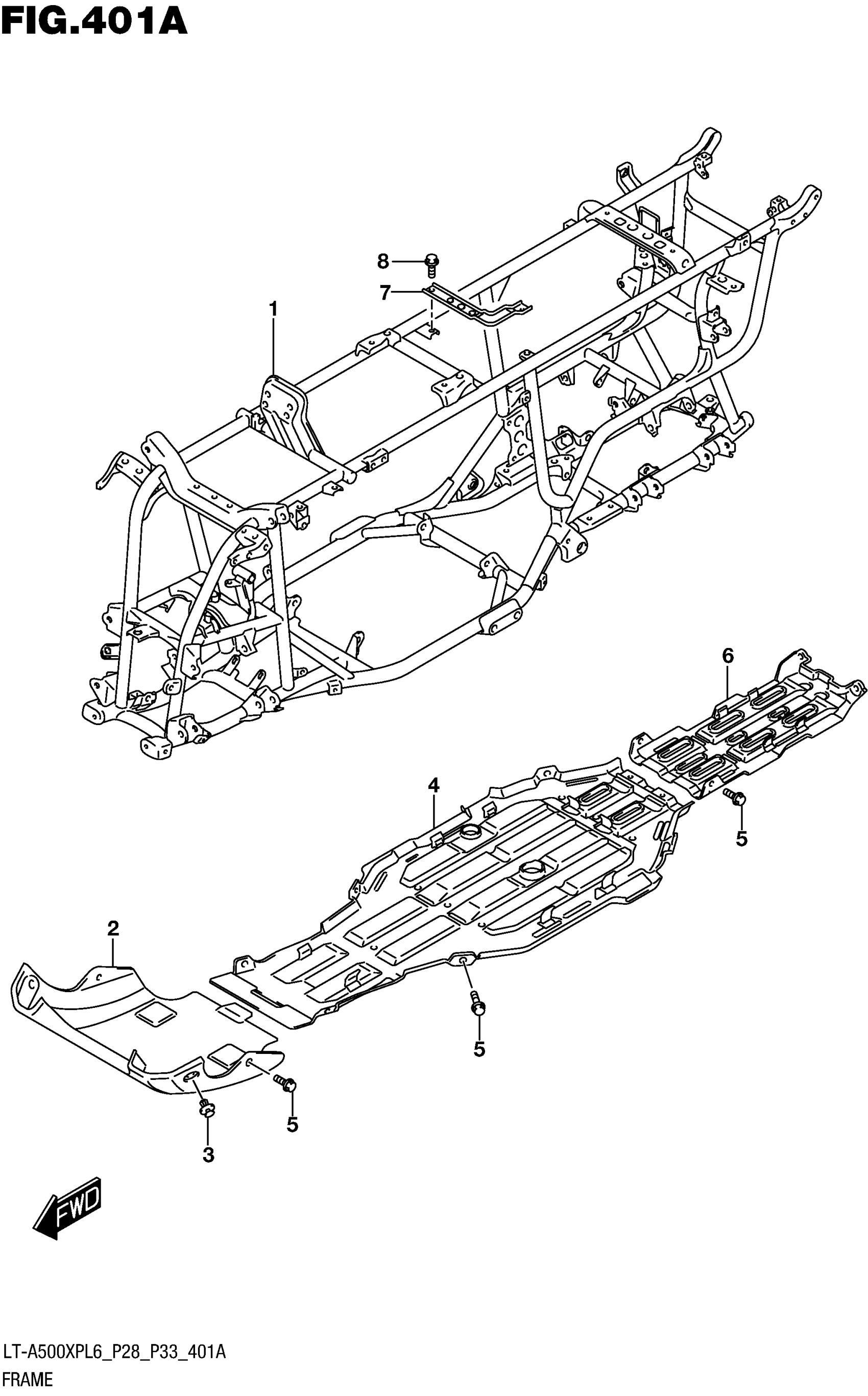

Suzuki LT-A500XPL6 (2016) FRAME Diagram

#

Description

Price

1

FRAME (BLACK) This part replaces 41100-31GE0-019.

41100-31GE2-019

$2,957.55

2

PROTECTOR, FRONT (BLACK)

42521-31G00-291

$60.11

3

CLIP

09409-08335

$2.44

4

PROTECTOR, ENGINE This part replaces 42511-31G02.

42511-31G04

$45.25

5

BOLT (6X12)

09111-06085

$4.28

6

PROTECTOR, REAR

42531-31GB0

$63.12

7

PLATE, BATTERY This part replaces 41561-31G00.

41561-31G01

$8.17

8

BOLT (6X16)

09103-06283

$2.80
