2016 Suzuki LT-A500XPL6 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2016 Suzuki LT-A500XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

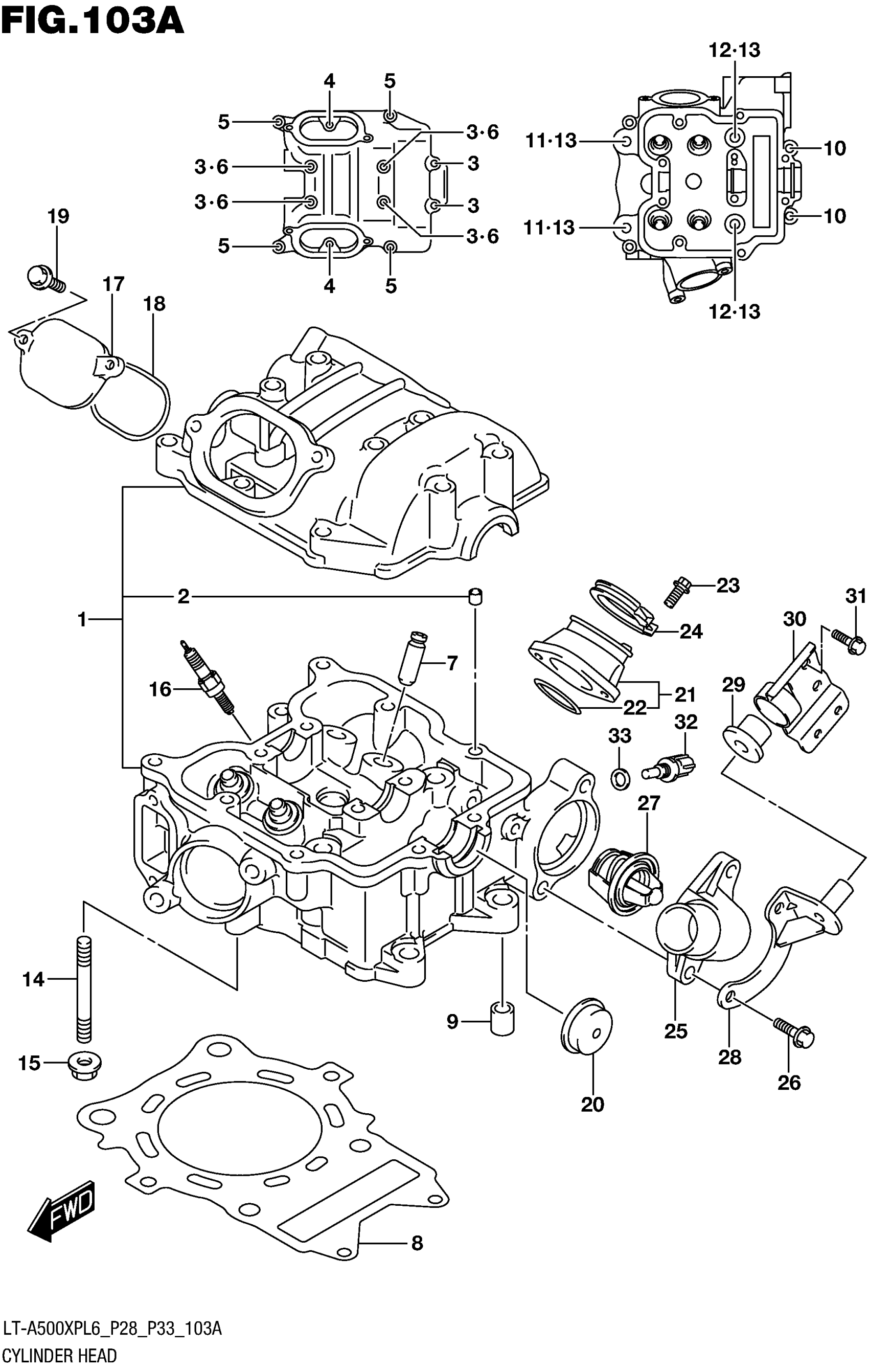

2016 Suzuki LT-A500XPL6 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-11H50

1
Out of stock

2

.PIN (8X11)

09206-08001

2
Out of stock

3

.BOLT (6X60)

09103-06064

6
Out of stock

4

.BOLT

01550-0625A

2
Out of stock

5

BOLT

01550-0635A

4
Out of stock

6

GASKET (5.8X13X1.2)

09168-06023

4
Out of stock

7

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

4
Out of stock

8

GASKET, CYLINDER HEAD

11141-31H00

1
Out of stock

9

PIN

04211-13189

2
Out of stock

10

BOLT (8X135)

09103-08212

2
Out of stock

11

BOLT (10X190)

09103-10179

2
Out of stock

12

BOLT (L:200)

09103-10180

2
Out of stock

13

.GASKET (10.2X20X2.3)

09168-10031

4
Out of stock

14

STUD BOLT

01421-0850A

2

$3.33

In stock

15

NUT

08316-1008A

2
Out of stock

16-1

SPARK PLUG (LMAR6A-9) | NGK

09482-00623

2
Out of stock

16-2

SPARK PLUG (LMAR8A-9) | OPT

09482-00625

—
Out of stock

16-2

SPARK PLUG (LMAR8A-9) | NGK

09482-00625

—
Out of stock

17

CAP,INSPECTION

11175-47D00

2
Out of stock

18

.O RING,INSPECTION CAP

11177-14D01

2
Out of stock

19

BOLT

01550-0620A

4
Out of stock

20

PLUG (OD:30)

09241-25007

1
Out of stock

21

PIPE ASSY, INTAKE This part replaces 13101-31H00.

13101-31H01

1
Out of stock

22

.O RING

13118-11H00

1

$7.30

In stock

23

BOLT (6X18)

09106-06105

2
Out of stock

24

CLAMP

09402-56901

1
Out of stock

25

COVER, THERMOSTAT

17661-31G00

1
Out of stock

26

BOLT

07130-0825A

2
Out of stock

27

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

1
Out of stock

28

PLATE, ENG MTG DAMPER

11653-11H01

1
Out of stock

29

DAMPER, ENG MTG

11654-31G00

1
Out of stock

30

STOPPER, ENG MTG

11655-31G10

1
Out of stock

31

BOLT (8X12)

01550-0812A

2
Out of stock

32

SENSOR, WATER TEMP

13650-10G00

1
Out of stock

33

GASKET (12X17X1)

09168-12017

1
Out of stock
← Cylinder Gasket SET →
