2015 Suzuki LT-A500XPL5 Rear BOX Diagram

← All diagrams

Find the part on the Rear BOX diagram for your 2015 Suzuki LT-A500XPL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

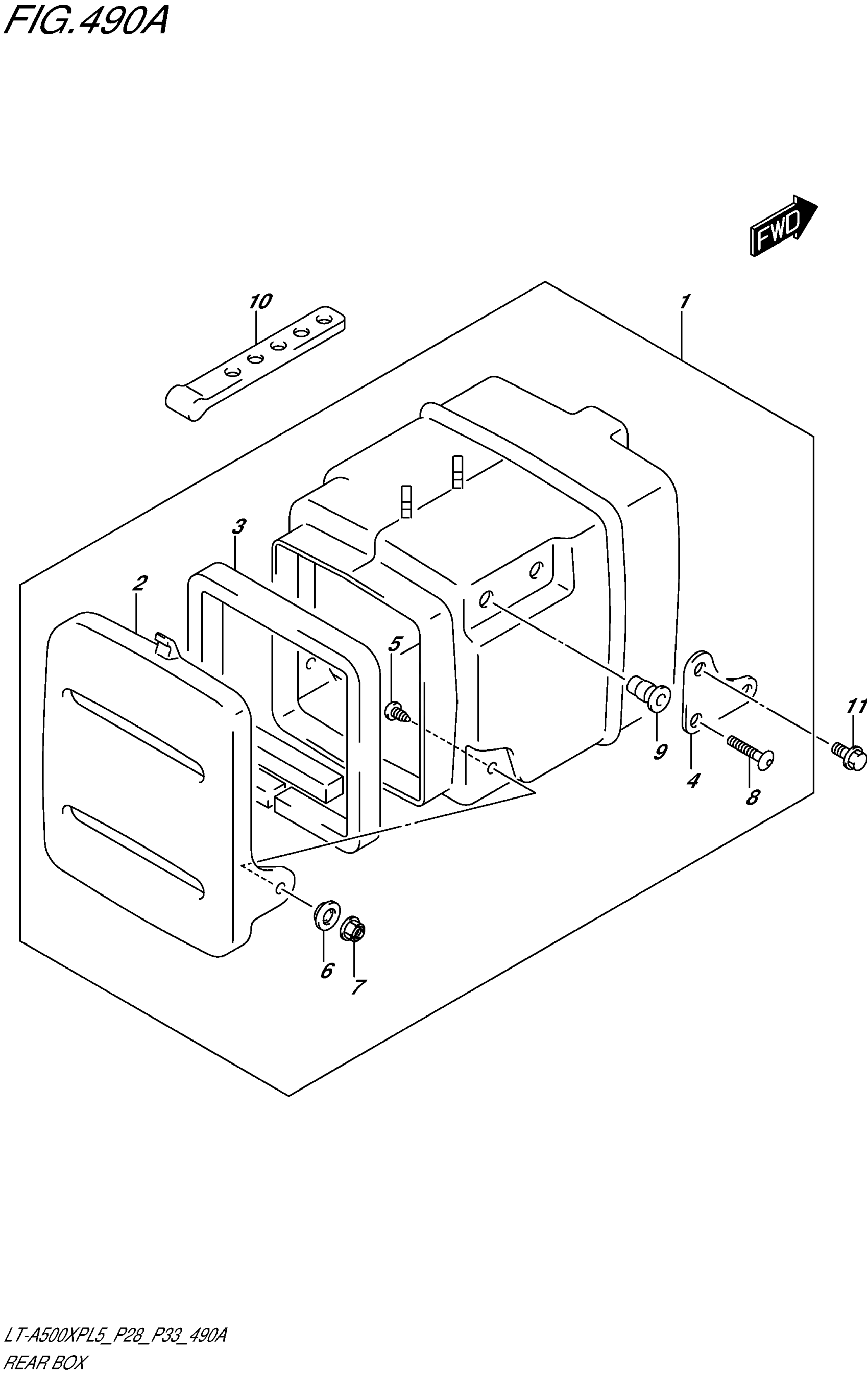

2015 Suzuki LT-A500XPL5 Rear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX ASSY,REAR This part replaces 93100-31G00.

93100-31GA2

1
Out of stock

2

LID

93112-31G00

1
Out of stock

3

.CUSHION, REAR BOX This part replaces 93114-31G00.

93114-31GA1

1
Out of stock

4

BRACKET

93113-31G00

1
Out of stock

5

SCREW

02142-0616B

2
Out of stock

6

WASHER This part replaces 09169-06045.

09169-06055

2
Out of stock

7

NUT

08319-3106A

2
Out of stock

8

SCREW

02142-0520B

2
Out of stock

9

NUT

09159-05019

2
Out of stock

10

BAND, BOX

93191-09F20

1
Out of stock

11

BOLT

01547-0610B

1
Out of stock
