2011 Suzuki LT-A500XPL1 Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2011 Suzuki LT-A500XPL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

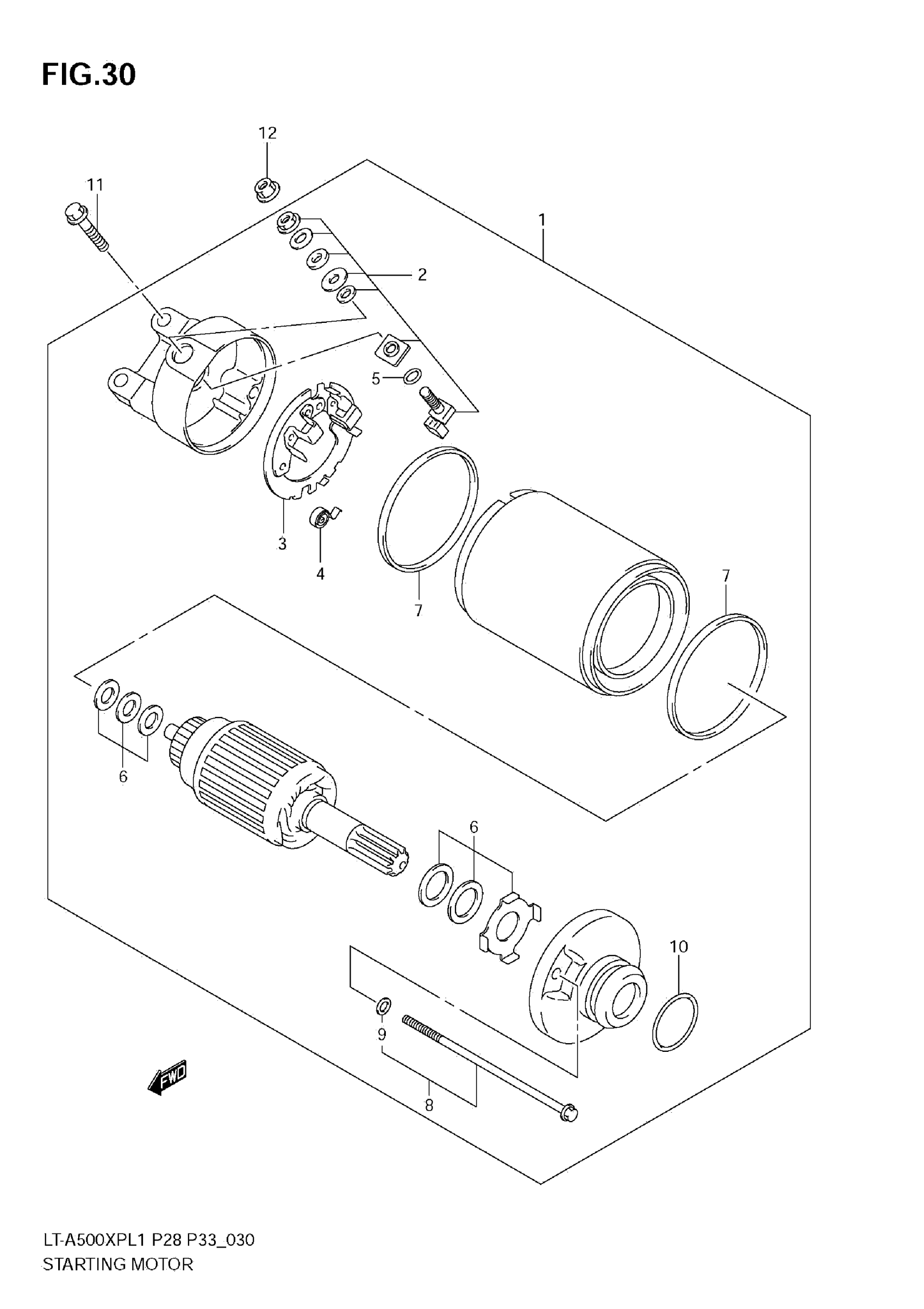

2011 Suzuki LT-A500XPL1 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING

31100-11H00

1
Out of stock

2

BRUSH TERMINAL SET

31130-13E00

1
Out of stock

3

BRUSH HOLDER SET

31132-13E00

1
Out of stock

4

SPRING, BRUSH

31135-31300

2
Out of stock

5

O RING

31143-49040

1
Out of stock

6

WASHER SET

31170-19B10

1
Out of stock

7

O RING

31264-13E00

2
Out of stock

8

SET BOLT

31280-19F00

1
Out of stock

9

O RING

31156-13E00

2
Out of stock

10

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

11

BOLT (6X25)

09103-06212

2
Out of stock

12

NUT

08361-3506A

1
Out of stock
