2011 Suzuki LT-A500XPL1 Speedometer Diagram

← All diagrams

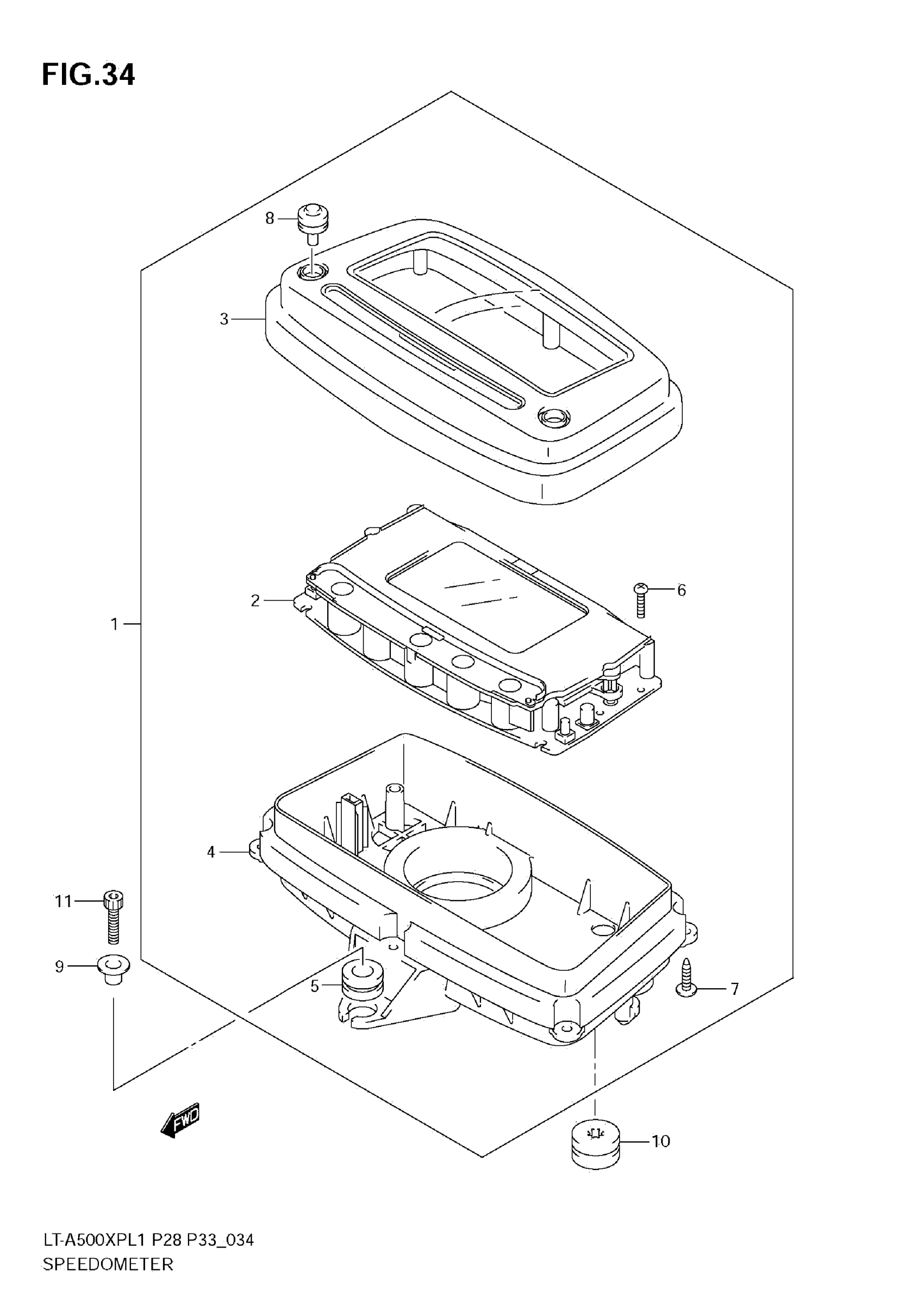

Find the part on the Speedometer diagram for your 2011 Suzuki LT-A500XPL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LT-A500XPL1 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

34100-11H50

1
Out of stock

2

SPEEDOMETER

34120-11H50

1
Out of stock

3

CASE, UPPER

34150-31G30

1
Out of stock

4

CASE, LOWER

34111-31G30

1
Out of stock

5

CUSHION, METER

34995-31G30

1
Out of stock

6

SCREW (3X10)

34147-31G30

9
Out of stock

7

SCREW (3X12)

34149-31G30

6
Out of stock

8

SWITCH RUBBER

34124-31G30

2
Out of stock

9

SPACER, SPEEDOMETER

34187-47F00

1
Out of stock

10

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

2
Out of stock

11

BOLT

07130-0520B

1
Out of stock
