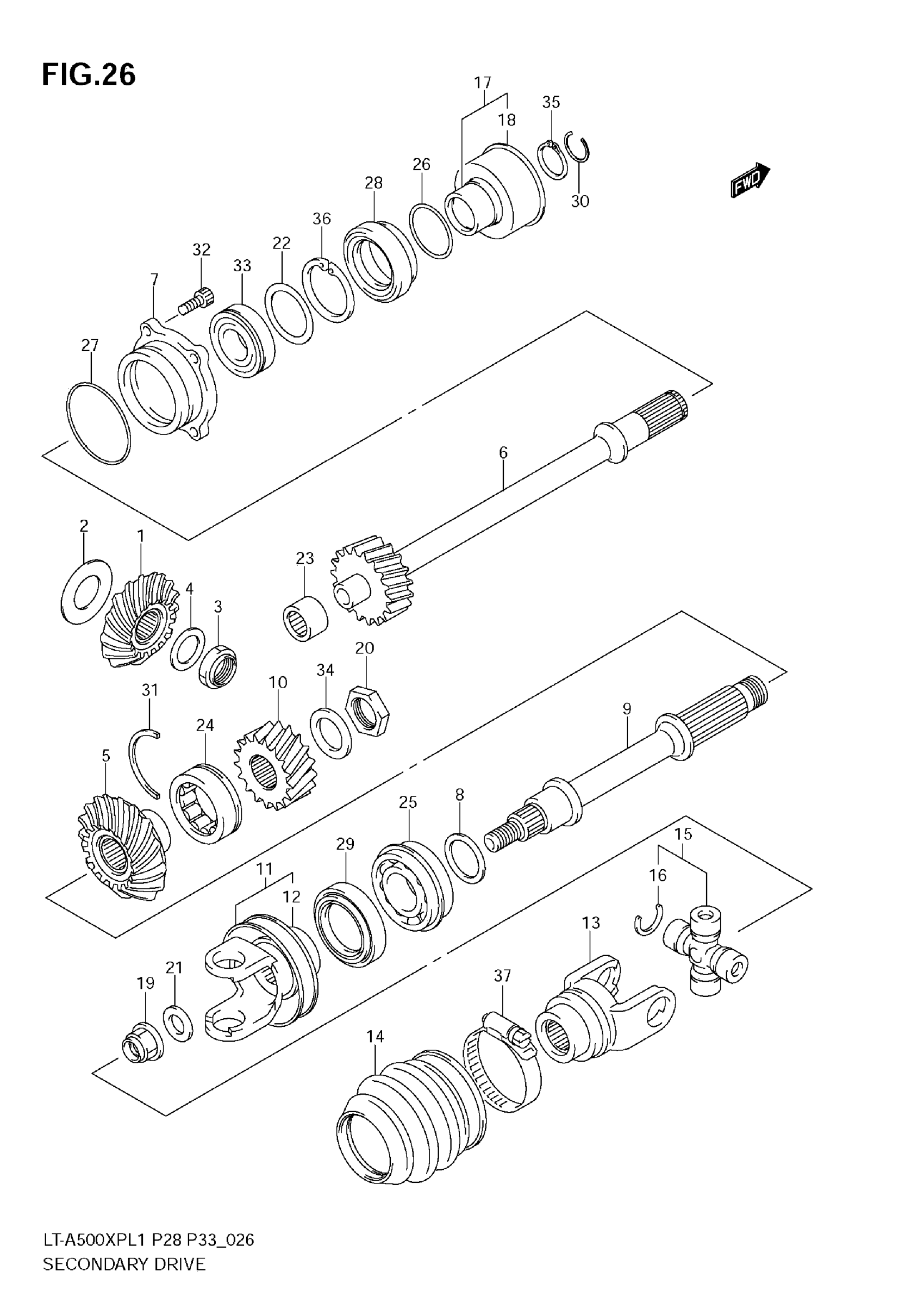

Suzuki LT-A500XPL1 (2011) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL

24911-11H00

Unavailable

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55 0.58/0.60/0.63/0.65 0.68/0.70/0.73/0.75 0.78/0.80/0.83/0.85 0.88/0.90/0.93/0.95 0.98/1.00/1.03/1.05 1.08/1.10/1.13/1.15 1.18/1.20/1.23/1.25 1.28/1.30

24935-03811

$150.17

3

NUT | SEC DRIVE BEVEL

09140-20012

$4.70

4

SHIM (20X32X1) | SEC DRIVE BEVEL

09181-20223

$2.80

5

GEAR, SEC DRIVEN BEVEL

24921-11H00

Unavailable

6

SHAFT,SEC DRIVEN OUTPUT FR This part replaces 24961-31H00.

24961-31H10

$175.33

7

HOUSING, FR OUTPUT SHAFT BRG

24965-31G00

$51.22

8

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.58/0.60/0.63 0.65/0.68/0.70/0.73 0.75/0.78/0.80/0.83 0.85/0.88/0.90/0.93 0.95/0.98/1.00/1.03 1.05/1.08/1.10/1.13 1.15/1.18/1.20/1.23 1.25/1.28/1.30/1.33 1.35/1.38/1.40

24945-03811

$125.93

9

SHAFT, SEC DRIVEN OUTPUT, RR

24971-11H00

Unavailable

10

GEAR, SEC DRIVEN OUTPUT SHAFT

24972-31G20

$120.15

11

YOKE, RR DRIVE OUT

27130-31G10

Unavailable

12

FLANGE, OUTPUT YOKE BOOT

27592-31G30

Unavailable

13

YOKE, PROP SHAFT JOINT RR

27141-31G00

Unavailable

14

BOOT, REAR OUTPUT JOINT This part replaces 27153-31G00.

27153-31G01

$13.97

15

JOINT SET, UNIVERSAL RR This part replaces 27200-73813.

27200-73814

$46.36

16

CIRCLIP

09380-25005

$1.68

17

COLLAR, FRONT DRIVE OUTPUT

27590-31G00

$70.33

18

PLATE, OUTPUT OIL SEAL

27592-31G00

$16.58

19

NUT | RR DRIVE OUTPUT YOKE

09159-16003

$4.33

20

NUT | SEC DRIVEN OUTPUT GEAR

09159-22005

$30.17

21

WASHER (16X30X3) | RR DRIVE OUTPUT

09160-16026

$5.43

22

SHIM (40X52X1) | FR DRIVE OUTPUT

09181-40195

$7.28

23

BEARING (25X37X17) | FRONT OUTPUT, RR

09263-25068

$58.43

24

BEARING (30X50X17) | SEC DRIVEN GEAR

09263-30050

$62.02

25

BEARING (25X52X20.6) | REAR OUTPUT

09267-25014

$135.30

26

O RING (D:1.9,ID:24.5) | FR DRIVE OUTPUT

09280-25005

$2.03

27

O RING (D:3.5,ID:65.2) | FR BRG HOUSING

09280-57002

$2.43

28

OIL SEAL (34X52X9) | FR OUTPUT SHAFT

09283-34008

$18.71

29

OIL SEAL (34X52X9) | RR OUTPUT SHAFT

09283-34008

$18.71

30

CIRCLIP | SEC DRIVEN OUTPUT

09381-21002

$1.48

31

C RING | SEC DRIVEN GEAR

09390-50002

$3.30

32

BOLT | FR BRG HOUSING

07130-0620A

$2.50

33

BEARING (25X52X15) | FR OUTPUT

09262-25003

$22.40

34

WASHER | OUTPUT SHAFT GEAR

08211-22365

$6.48

35

CIRCLIP | FR DRIVE OUTPUT

08331-3125A

Unavailable

36

CIRCLIP | FR OUTPUT SHAFT This part replaces 08331-4152A.

08331-41529

$4.83

37

CLAMP

09402-00512

$16.92
