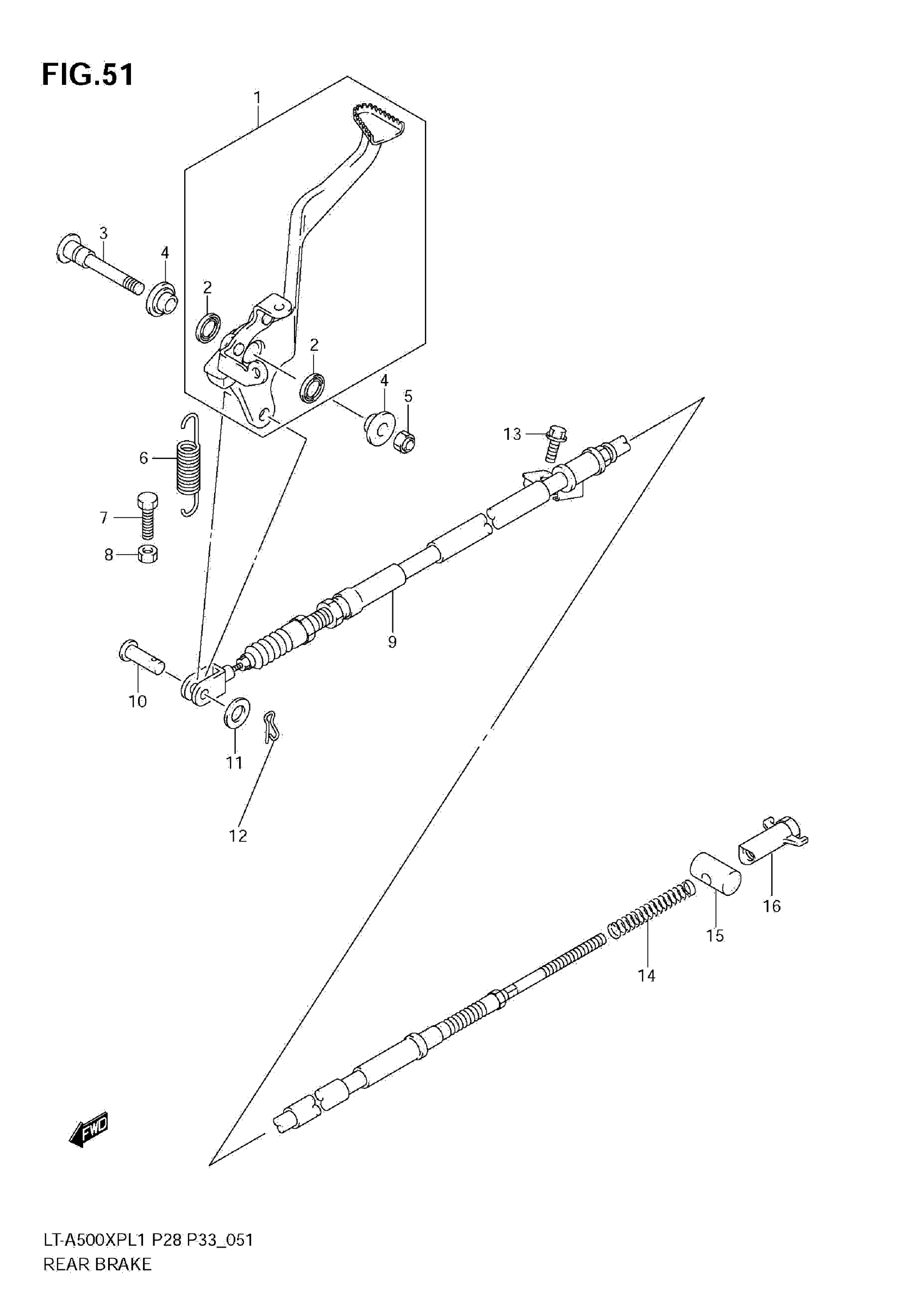

Suzuki LT-A500XPL1 (2011) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43100-31GB0

Unavailable

2

OIL SEAL (15X21X3)

09284-15006

$3.21

3

SHAFT, BRAKE PEDAL

43142-31GB0

Unavailable

4

WASHER

43212-31GB0

Unavailable

5

NUT

09159-10115

$3.21

6

SPRING

09443-11036

$5.36

7

BOLT

01500-0620A

$1.77

8

NUT

08310-0006A

$1.83

9

CABLE, REAR BRAKE

58510-31G00

$79.43

10

PIN

09200-05001

$1.52

11

WASHER

08322-0106B

$2.24

12

CLIP

09385-06012

$1.89

13

BOLT

01547-0616A

$2.01

14

SPRING

09440-08042

$2.80

15

PIN

09209-13006

$4.73

16

NUT

09150-06015

$3.26
