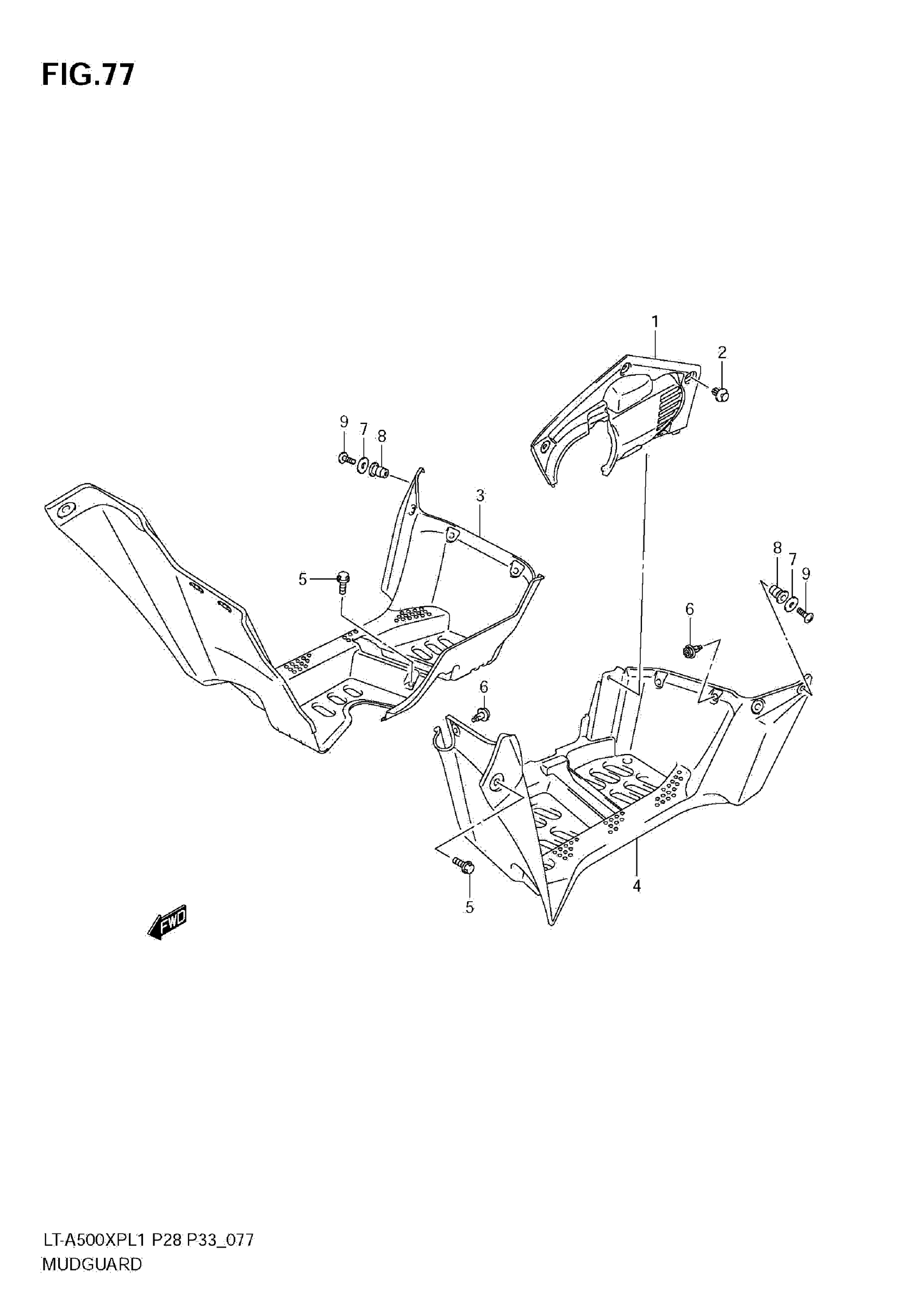

Suzuki LT-A500XPL1 (2011) MUDGUARD Diagram

LID (BLACK) This part replaces 63342-31G01-291.

63342-31G02-291

$95.21

CLIP

09409-08335

$2.44

MUDGUARD,FRONT This part replaces 63331-31G01-291.

63331-31G03-291

$42.72

MUDGUARD,FRONT This part replaces 63341-31G01-291.

63341-31G03-291

$142.94

BOLT (6X13.5)

09111-06088

$2.19

CLIP

09409-10306

$2.80

WASHER (5.5X20X1.4)

09160-05046

$1.90

NUT

09159-05019

$6.44

SCREW

02142-0520B

$1.77
