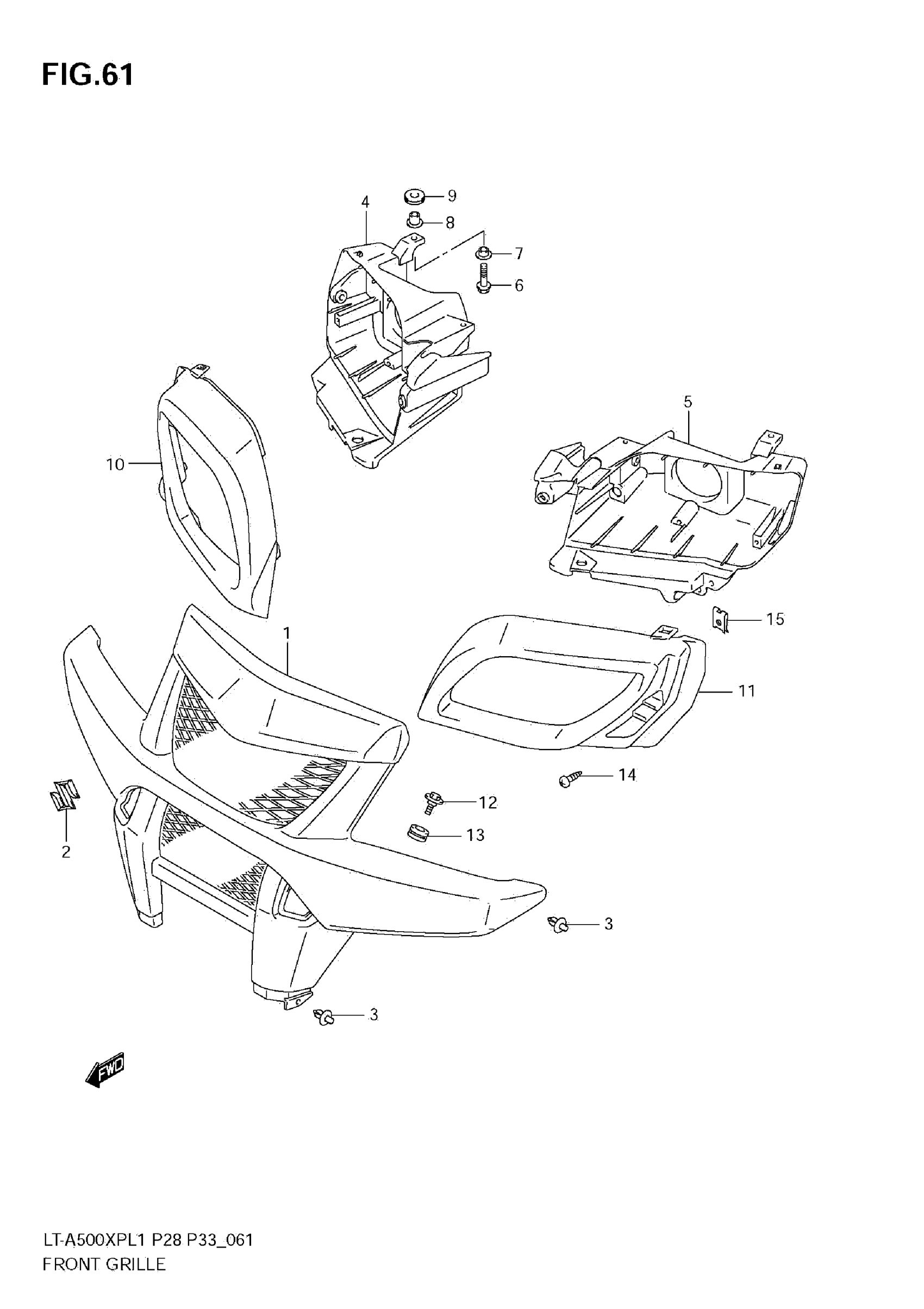

Suzuki LT-A500XPL1 (2011) FRONT GRILLE (LT-A500XPZ L1 E33) Diagram

#

Description

Price

1

GRILLE,FRONT This part replaces 53118-31G00-291.

53118-31G05-291

$152.76

2

EMBLEM, "S"

68151-03G40

$15.59

3

CLIP, FRONT

09409-08335

$2.44

4

HOUSING,FRONT L This part replaces 53281-31G00-291.

53281-31G04-291

$85.33

5

HOUSING, FRONT LH (BLACK) This part replaces 53284-31G00-291.

53284-31G01-291

$51.72

6

BOLT

01547-0630B

$2.73

7

WASHER

09169-06073

$3.08

8

WASHER

09169-06074

$7.49

9

CUSHION (11.5X32X12.2)

09320-11021

$3.77

10

COVER,FRONT LAM This part replaces 53282-31G00-291.

53282-31G03-291

$17.55

11

COVER,FRONT LAM This part replaces 53283-31G00-291.

53283-31G03-291

$27.75

12

SCREW (6X22.5)

09139-06118

$3.05

13

CUSHION

09320-10501

$4.85

14

SCREW

03241-0516A

$1.23

15

NUT

09148-05038

$1.97
