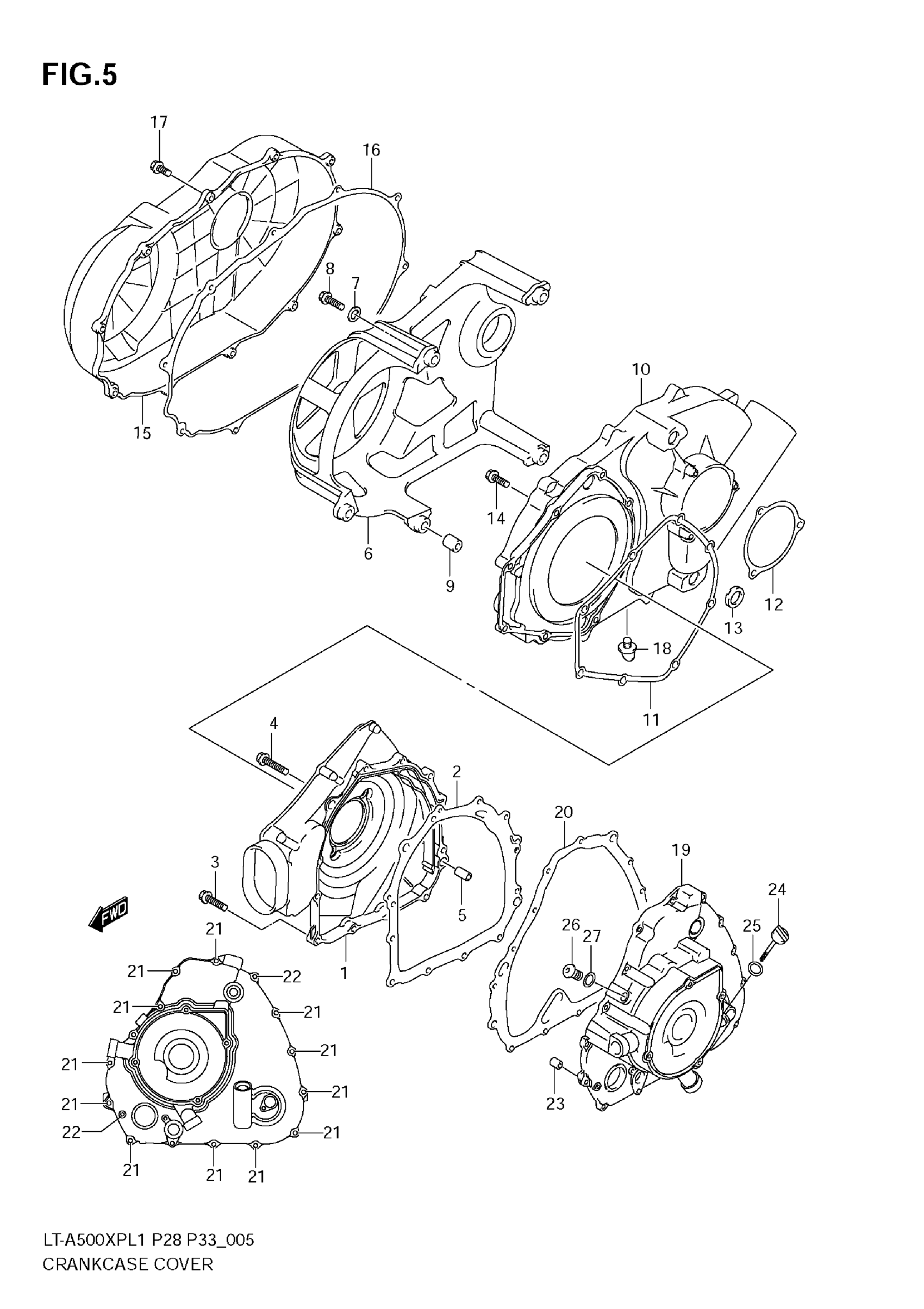

Find the part on the Crankcase Cover diagram for your 2011 Suzuki LT-A500XPL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LT-A500XPL1 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-11H00

1
Out of stock

2

GASKET, CLUTCH COVER

11482-11H00

1
Out of stock

3

BOLT

01547-0625B

11
Out of stock

4

BOLT

01547-0635B

1
Out of stock

5

PIN

04211-11169

2
Out of stock

6

HOUSING, V-BELT BEARING

11342-11H00

1
Out of stock

7

GASKET, V-BELT BEARING HOUSIN This part replaces 11488-11H00.

11488-11H01

2
Out of stock

8

BOLT

01547-0635B

5
Out of stock

9

PIN

04211-09149

2
Out of stock

10

COVER, V-BELT INNER

11370-11H00

1
Out of stock

11

GASKET, V-BELT COVER INNER FR This part replaces 11484-11H00.

11484-11H01

1
Out of stock

12

GASKET, V-BELT COVER INNER RR

11485-31G00

1
Out of stock

13

GASKET, V-BELT COVER INNER This part replaces 11487-11H00.

11487-11H01

2
Out of stock

14

BOLT

01547-0625B

11
Out of stock

15

COVER, V-BELT OUTER

11380-11H00

1
Out of stock

16

GASKET, V-BELT COVER OUTER This part replaces 11486-11H00.

11486-11H01

1
Out of stock

17

BOLT

01547-0625B

10
Out of stock

18

PLUG, WATER DRAIN

11375-31G00

1
Out of stock

19

COVER, MAGNETO

11350-11H10

1
Out of stock

20

GASKET, MAGNETO COVER

11483-11H00

1
Out of stock

21

BOLT

01547-0625B

12
Out of stock

22

BOLT

01547-0635B

2
Out of stock

23

PIN

04211-11169

2
Out of stock

24

GAUGE,OIL LEVEL

11971-09F50

1
Out of stock

25

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

26

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

1
Out of stock

27

GASKET (14X18X1.5)

09168-14014

1
Out of stock
