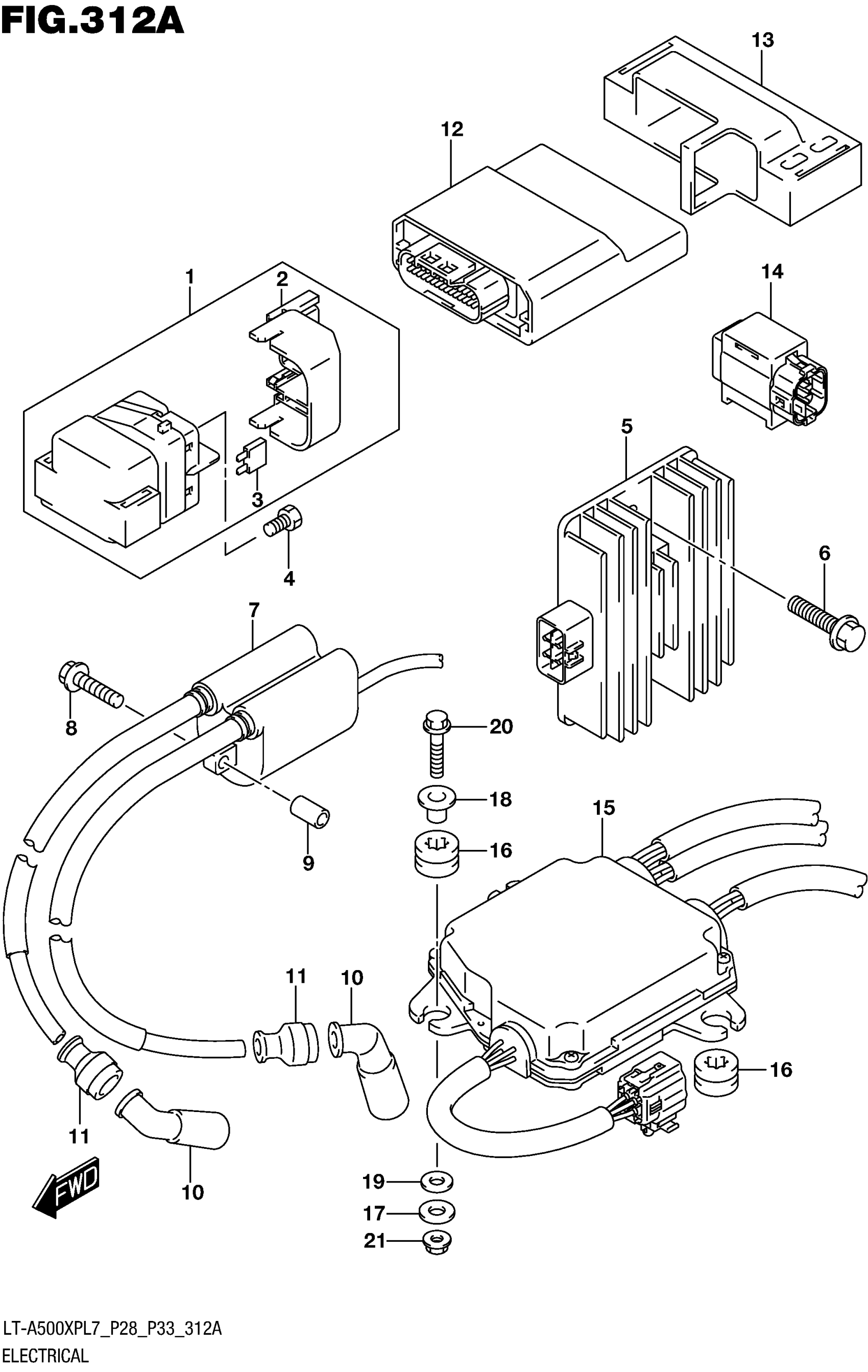

Suzuki LT-A500XPCL7 AXI, (XD3 CAMO) (2017) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$88.15

2

.COVER, STARTER RELAY

31861-38G00

$5.52

3

.FUSE (30A)

09481-30501

$2.42

4

SCREW (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY

32800-42F10

$227.26

6

BOLT

01550-0620A

$2.01

7

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$104.36

8

BOLT

01547-0640A

$2.38

9

SPACER (6.4X10X18)

09180-06195

$4.70

10

CAP ASSY,SPARK PLUG

33510-31G10

$31.51

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

12

CONTROL UNIT,FI This part replaces 32920-31HB0.

32920-31HB1

$1,029.10

13

HOLDER, FI CONTROL UNIT

32980-31GA0

$48.30

14

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01

15

CONTROL UNIT,EP This part replaces 32910-31H00.

32910-31H01

$1,014.38

16

CUSHION, EPS

32912-31G00

Unavailable

17

WASHER (6.5X15X1.5)

09160-06094

$1.46

18

WASHER

09169-06075

$4.00

19

WASHER

09169-06076

$2.97

20

BOLT

01550-0630A

$2.38

21

NUT

08316-1006A

$2.25
