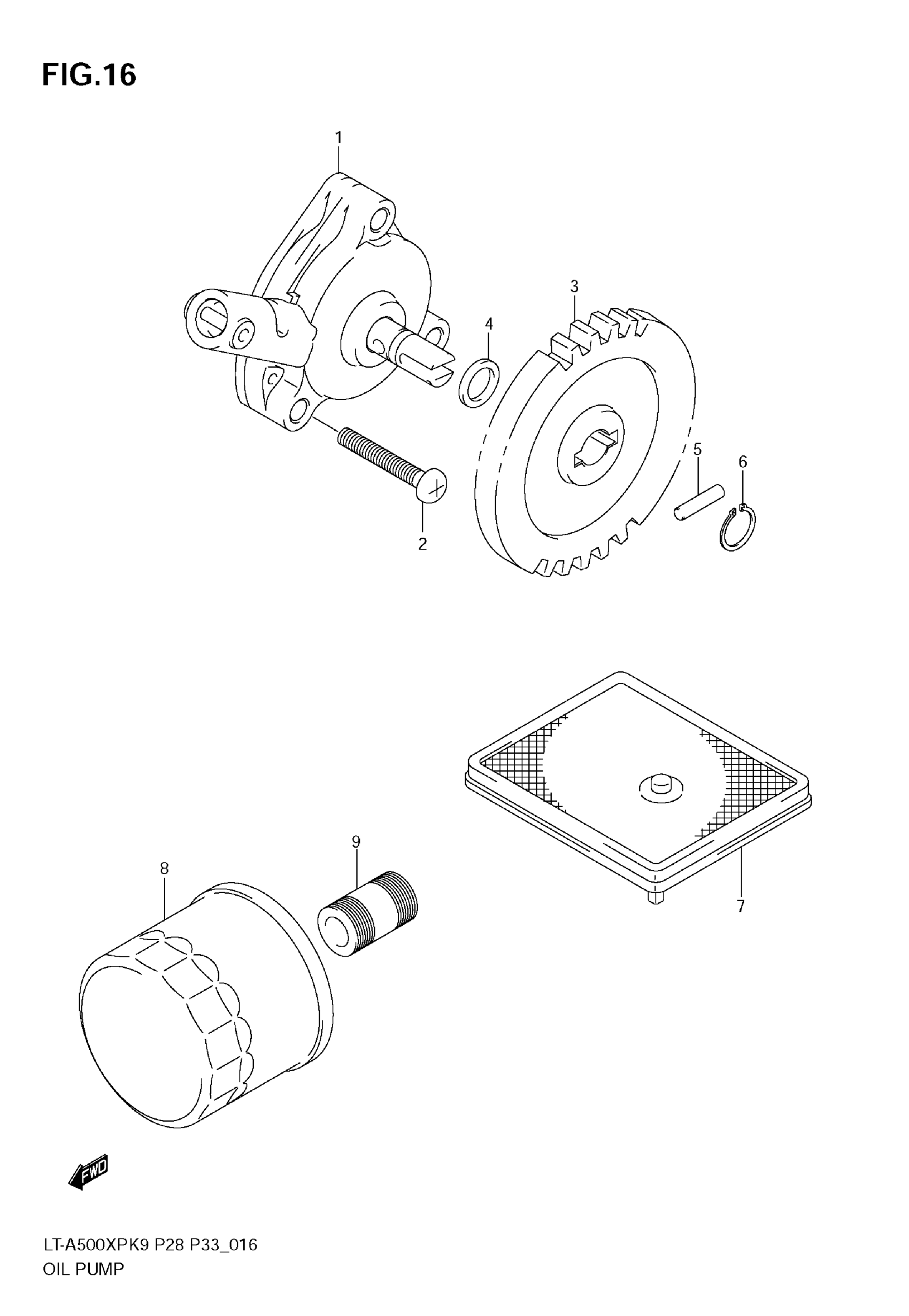

Suzuki LT-A500XP (2009) OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY, ENGINE OIL

16400-11H00

$204.80

2

SCREW (6X30)

09125-06119

Unavailable

3

SPROCKET, OIL PUMP DRIVE

16331-31H00

$55.05

4

WASHER, 10X18X0.5

09181-10158

$1.97

5

PIN, 4X15.8

09261-04009

$1.50

6

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77

7

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$12.33

8

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$11.99

9

UNION,OIL STAND

16591-06B01

$6.45
