2009 Suzuki LT-A500XP AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2009 Suzuki LT-A500XP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

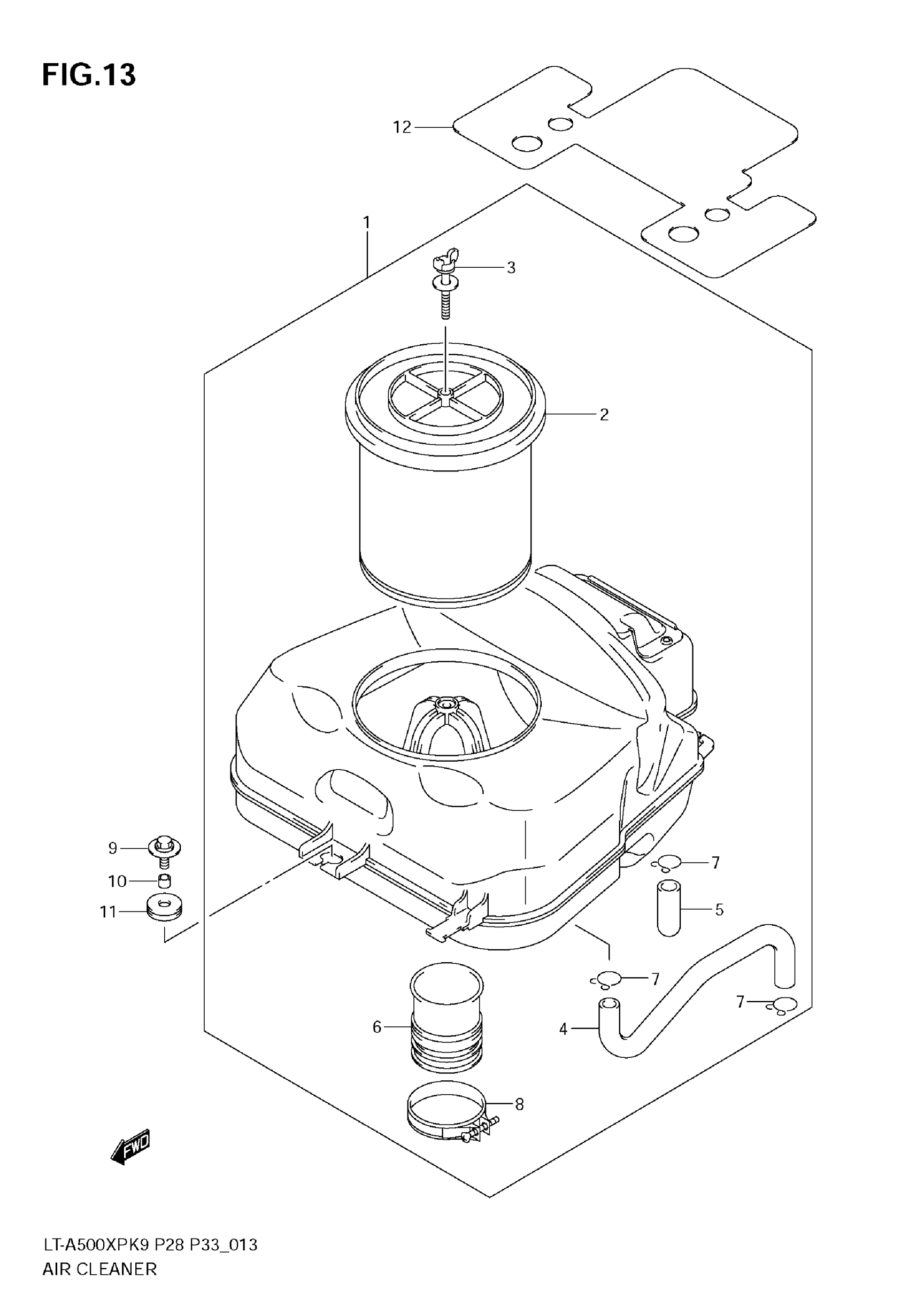

2009 Suzuki LT-A500XP AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 8 This part replaces 13700-11H10.

13700-11H21

1
Out of stock

2

FILTER ASSY This part replaces 13780-31G20.

13780-31G30

1
Out of stock

3

BOLT, WING

13831-31G00

1
Out of stock

4

.TUBE, BREATHER This part replaces 13853-31G00.

13853-31G01

1
Out of stock

5

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

1
Out of stock

6

.TUBE, OUTLET This part replaces 13881-11H01.

13881-11H02

1
Out of stock

7

CLIP

09401-14301

3
Out of stock

8

CLAMP

09402-52208

1
Out of stock

9

BOLT, 6X20

09116-06149

3
Out of stock

10

SPACER, 6.1X8X7

09180-06248

3
Out of stock

11

CUSHION

09320-08028

3
Out of stock

12

SHEET, AIR CLEANER INLET

13841-11H00

1
Out of stock
