2023 Suzuki LT-A500XM3 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2023 Suzuki LT-A500XM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

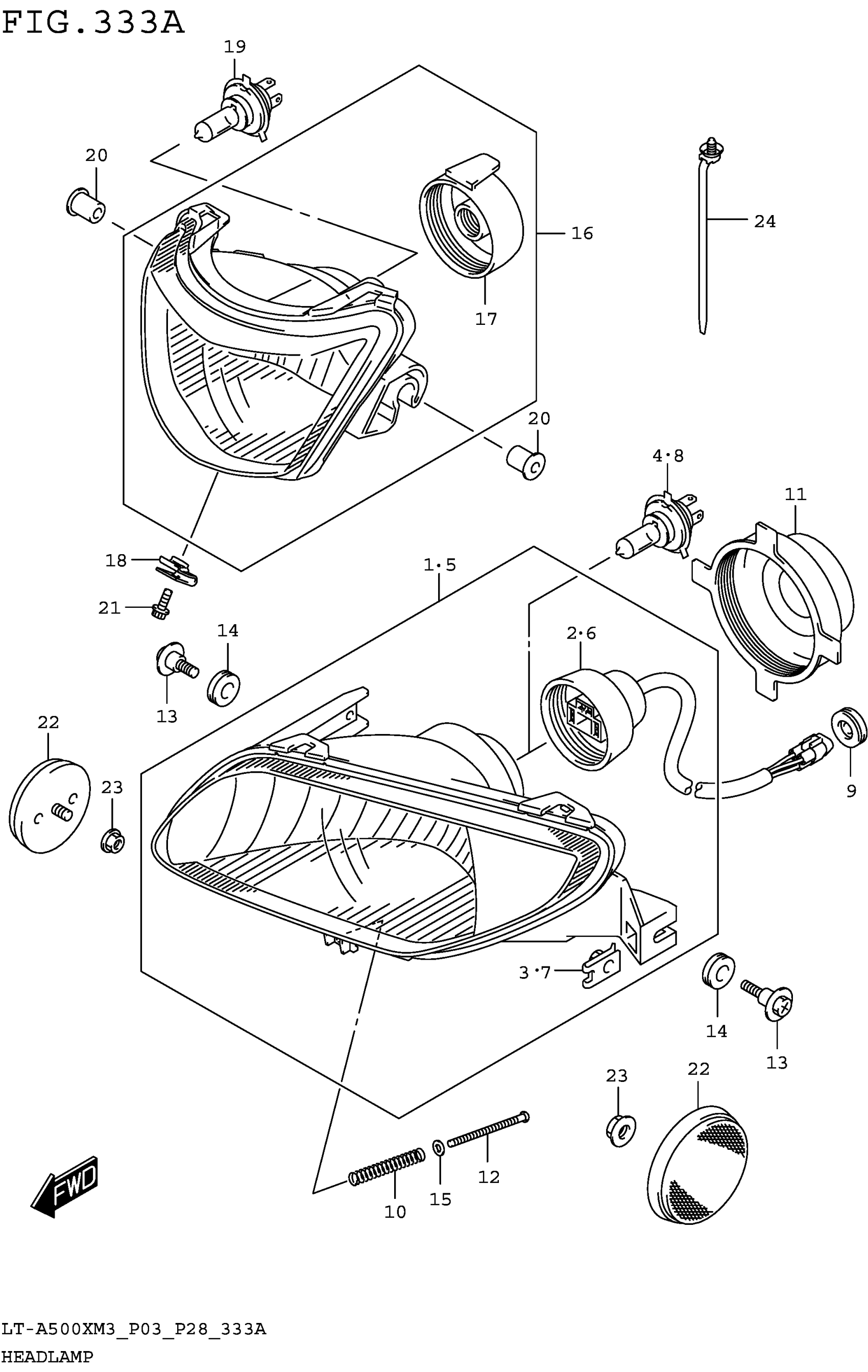

2023 Suzuki LT-A500XM3 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY RH

35100-31G92-999

1
Out of stock

2

.CORD ASSY RH

35171-31GM1

1
Out of stock

3

.NUT (M6)

35157-31G90

2
Out of stock

4

BULB (12V,35/35W)

09471-12241

—
Out of stock

5

HEADLAMP ASSY LH

35300-31G92-999

1
Out of stock

6

.CORD ASSY LH

35171-31GH1

1
Out of stock

7

.NUT (M6)

35157-31G90

2
Out of stock

8

BULB (12V,35/35W)

09471-12241

—
Out of stock

9

GROMMET

09308-07011

2
Out of stock

10

SPRING

35154-31300

2
Out of stock

11

COVER,HEADLAMP HOUSING

35174-31G00

2
Out of stock

12

SCREW (4X50)

09125-04031

2
Out of stock

13

SCREW (6X22.5)

09139-06118

4
Out of stock

14

CUSHION (10X20X10)

09320-10078

4
Out of stock

15

WASHER

08322-0104A

2
Out of stock

16

HEADLAMP ASSY

35100-31GB3-999

1
Out of stock

17

.COVER

35174-31GB0

1
Out of stock

18

NUT (M5)

09148-05052

1
Out of stock

19

BULB (12V35/35W,HS1(01750A))

09471-12101

1
Out of stock

20

CUSHION

09320-07020

2
Out of stock

21

BOLT

07120-0512B

1
Out of stock

22

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

23

NUT

08316-1005A

2
Out of stock

24

CLAMP (L:170)

09407-17403

2
Out of stock
