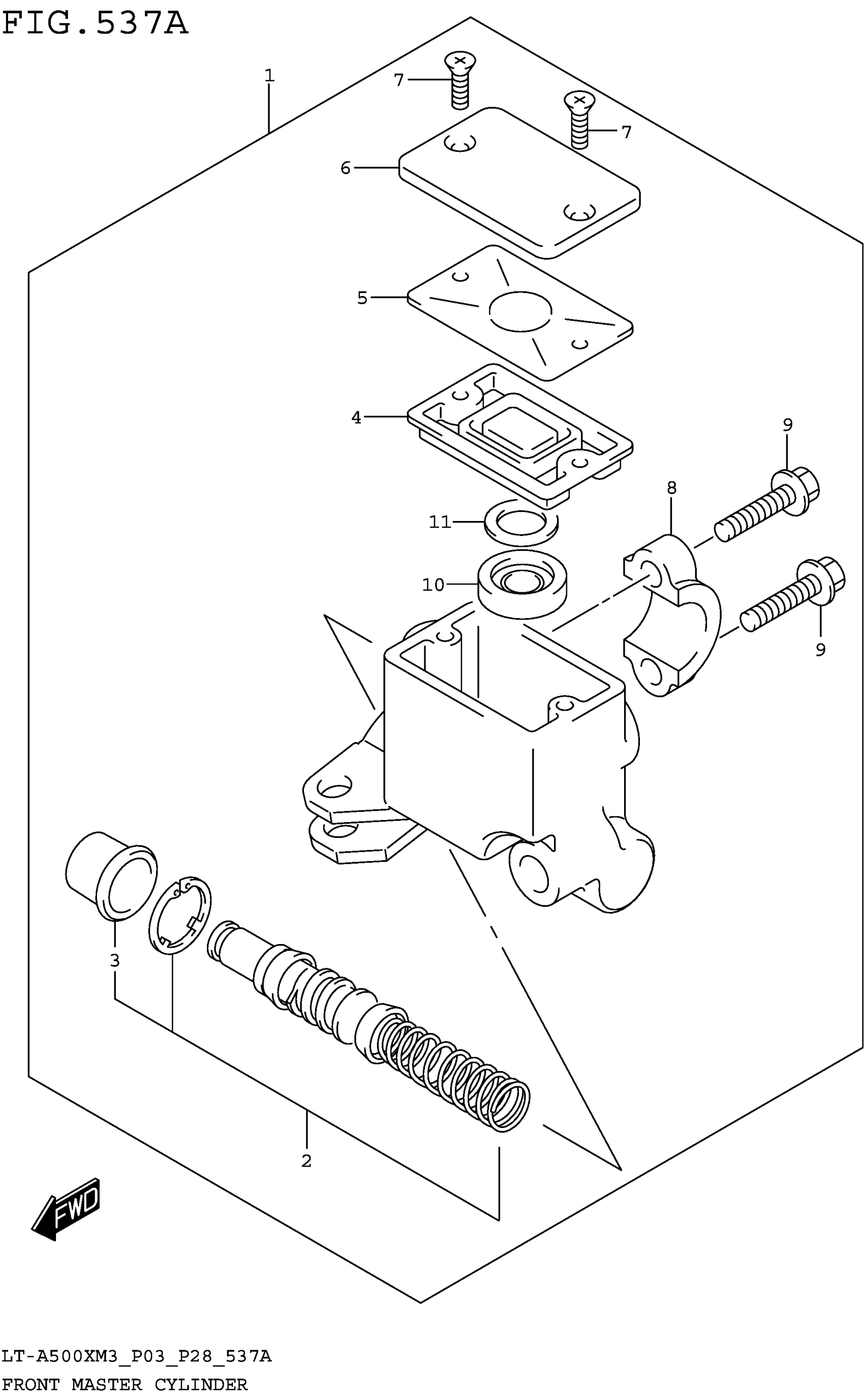

Suzuki LT-A500XM3 (2023) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-31D60

$210.41

2

.PISTON/CUP SET

59600-04810

$41.38

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-04700

$8.95

5

.PLATE,DIAPHRAGM

59668-14F00

$13.10

6

.CAP

59669-20H00

$14.33

7

.SCREW

69689-49300

$1.81

8

.HOLDER

59671-27C00

$19.22

9

.BOLT (6X22)

59675-06F10

$5.27

10

.SEPARATOR

59748-15400

$8.83

11

.PLATE

59749-15400

$2.80
