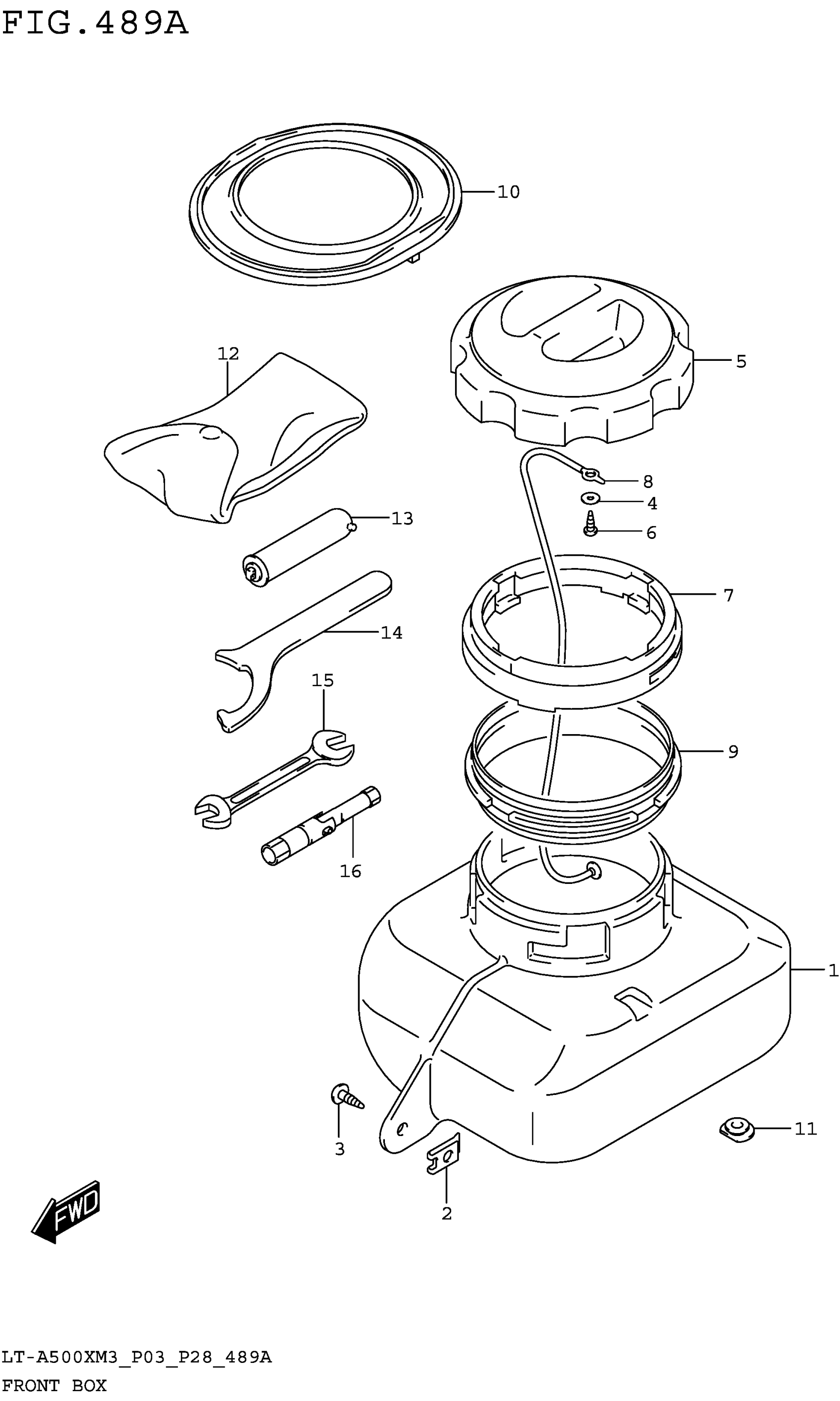

Suzuki LT-A500XM3 (2023) FRONT BOX Diagram

#

Description
Price

1

BODY, FRONT BOX

92111-31G10

$36.38

2

NUT (M5)

09148-05038

$2.01

3

SCREW

03541-0516A

$1.41

4

WASHER (5.2X16X1.0)

09160-05013

$1.30

5

LID,FRONT BOX This part replaces 92112-31G00.

92112-31G01

$25.21

6

SCREW

03511-0512B

$2.39

7

HOLDER,FRONT BOX This part replaces 92113-03G00.

92113-03G01

$73.33

8

STOPPER, FRONT BOX

92114-03G20

$8.02

9

CUSHION, FRONT BOX

92141-31G00

$24.00

10

CUSHION, FRONT BOX NO.1

92142-31G00

$20.32

11

CAP (OD:18)

09250-10033

$1.38

12

TOOL ASSY

09800-21103

$18.22

13

GAUGE ASSY,AIR PRESSUR

96200-18A02

$66.48

14

CLAMP,WRENCH

09822-00003

$9.79

15

SPANNER,OPEN (14X17)

09813-00031

Unavailable

16

SPANNER (14)

09816-00195

$21.45
