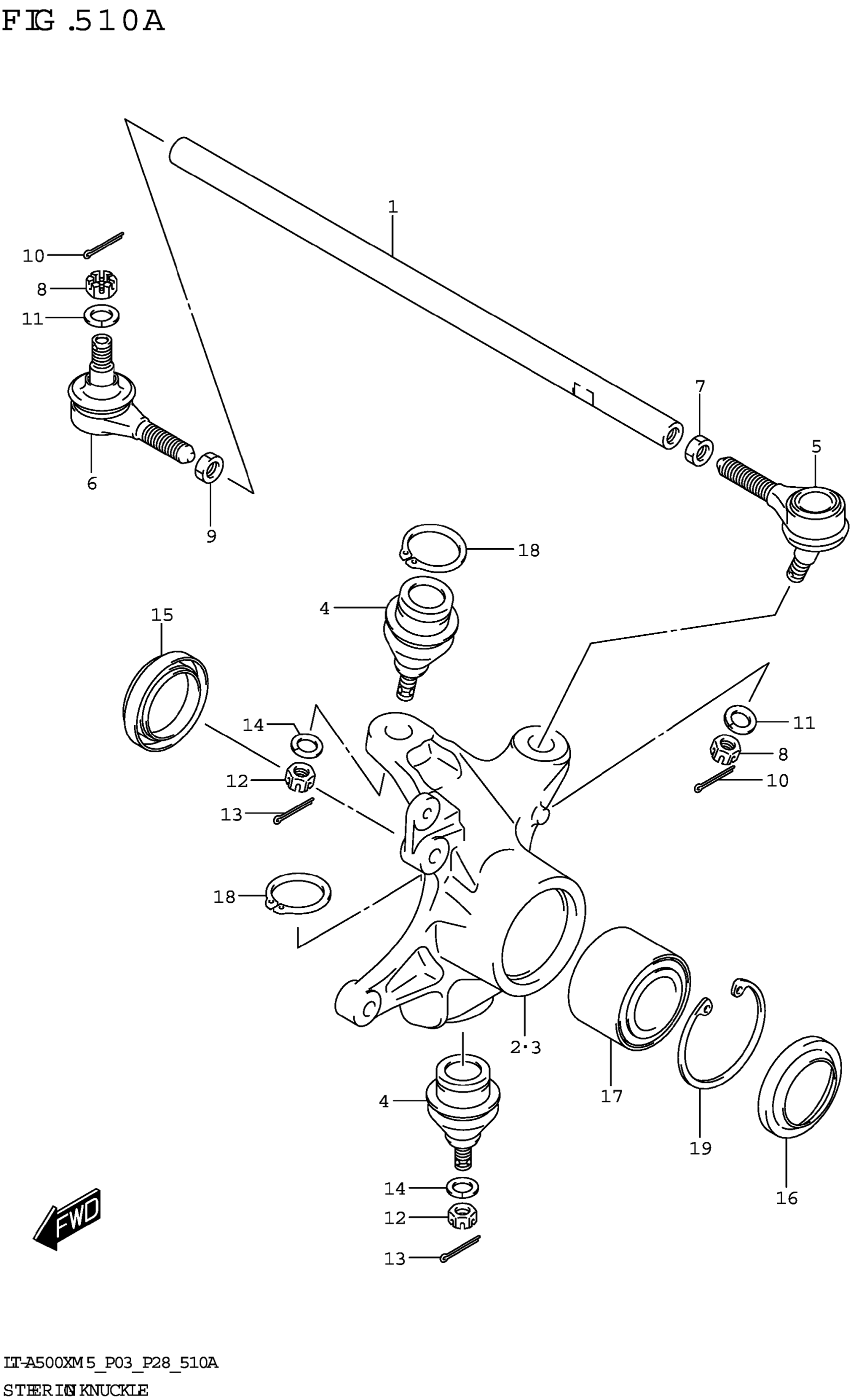

Find the part on the Steering Knuckle diagram for your 2025 Suzuki LT-A500XM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki LT-A500XM2 Steering Knuckle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE-ROD, STEERING

51281-43B00

2
Out of stock

2

KNUCKLE, STEERING RH

51231-34K00

1
Out of stock

3

KNUCKLE, STEERING LH

51241-34K00

1
Out of stock

4

END, KNUCKLE STEERING

51210-31G10

4
Out of stock

5

END.ROD RH

51260-45G00

2
Out of stock

6

END.ROD LH

51270-45G00

2
Out of stock

7

NUT, TIE-ROD

51283-09F00

2
Out of stock

8

NUT

08314-4010B

4
Out of stock

9

NUT

09140-12035

2
Out of stock

10

PIN

04111-2020A

4
Out of stock

11

WASHER (10.5X19X2.0)

09160-10082

4
Out of stock

12

NUT

08314-4010B

4
Out of stock

13

PIN

04111-2020A

4
Out of stock

14

WASHER (10.5X19X2.0)

09160-10082

4
Out of stock

15

OIL SEAL (38X55X8)

09283-38012

2
Out of stock

16

OIL SEAL (38X55X6)

09285-38002

2
Out of stock

17

BEARING, FRONT HUB

51259-31G10

2
Out of stock

18

CIRCLIP

08331-31309

4
Out of stock

19

CIRCLIP

08331-41559

2
Out of stock
