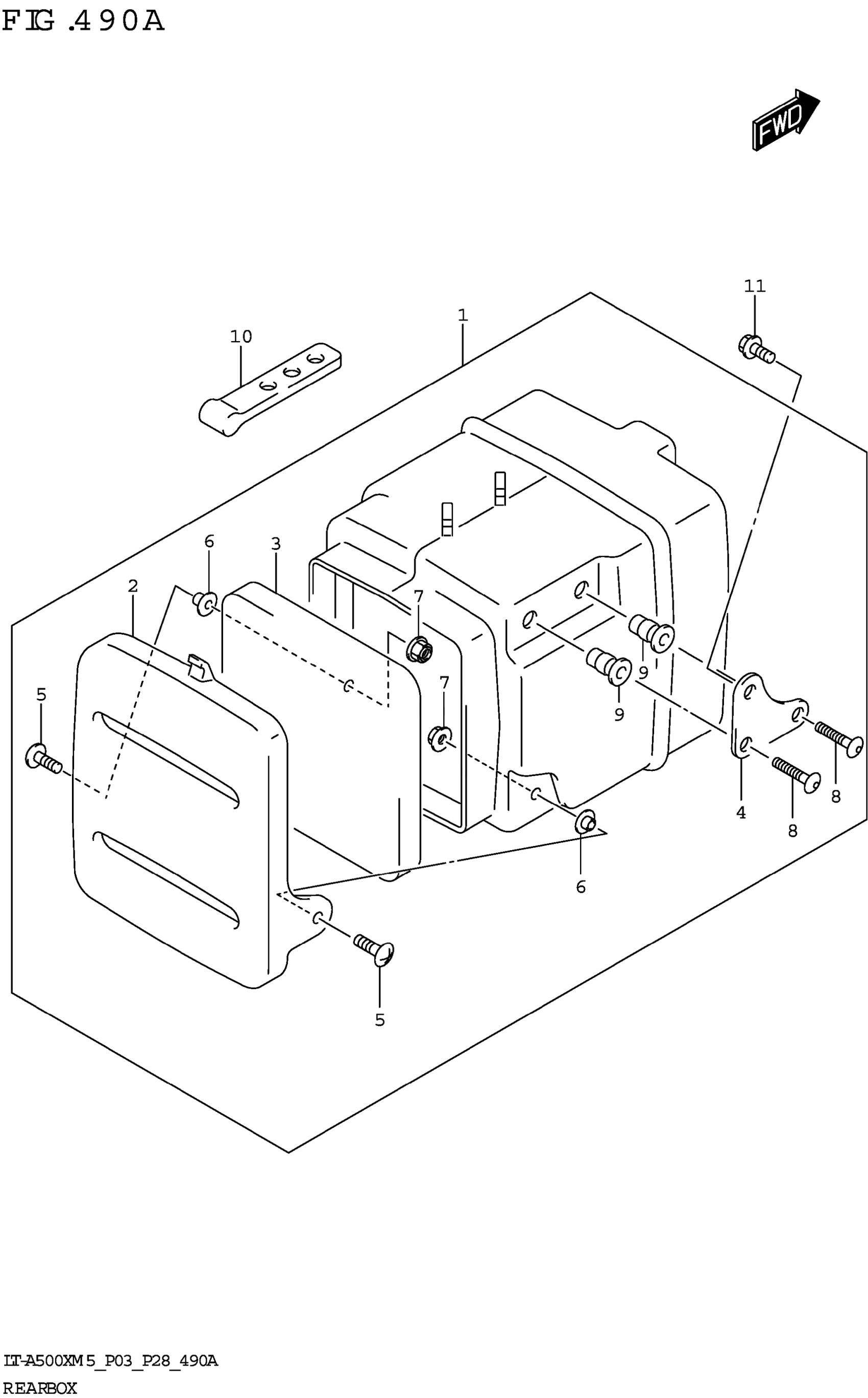

Suzuki LT-A500XM2 (2025) REAR BOX Diagram

#

Description
Price

1

BOX ASSY,REAR

93100-31GA2

$132.32

2

.LID,REAR BOX

93112-31G01

Unavailable

3

.CUSHION, REAR BOX

93114-31GA1

$18.53

4

.BRACKET, REAR BOX

93113-31G00

Unavailable

5

SCREW

02142-0616B

$1.80

6

WASHER This part replaces 09169-06045.

09169-06055

$2.02

7

NUT

08319-3106A

$2.01

8

SCREW

02142-0520B

$1.77

9

NUT (M5)

09159-05019

$6.44

10

BAND, REAR BOX

93191-09F20

$14.27

11

BOLT

01547-0610B

$2.47
