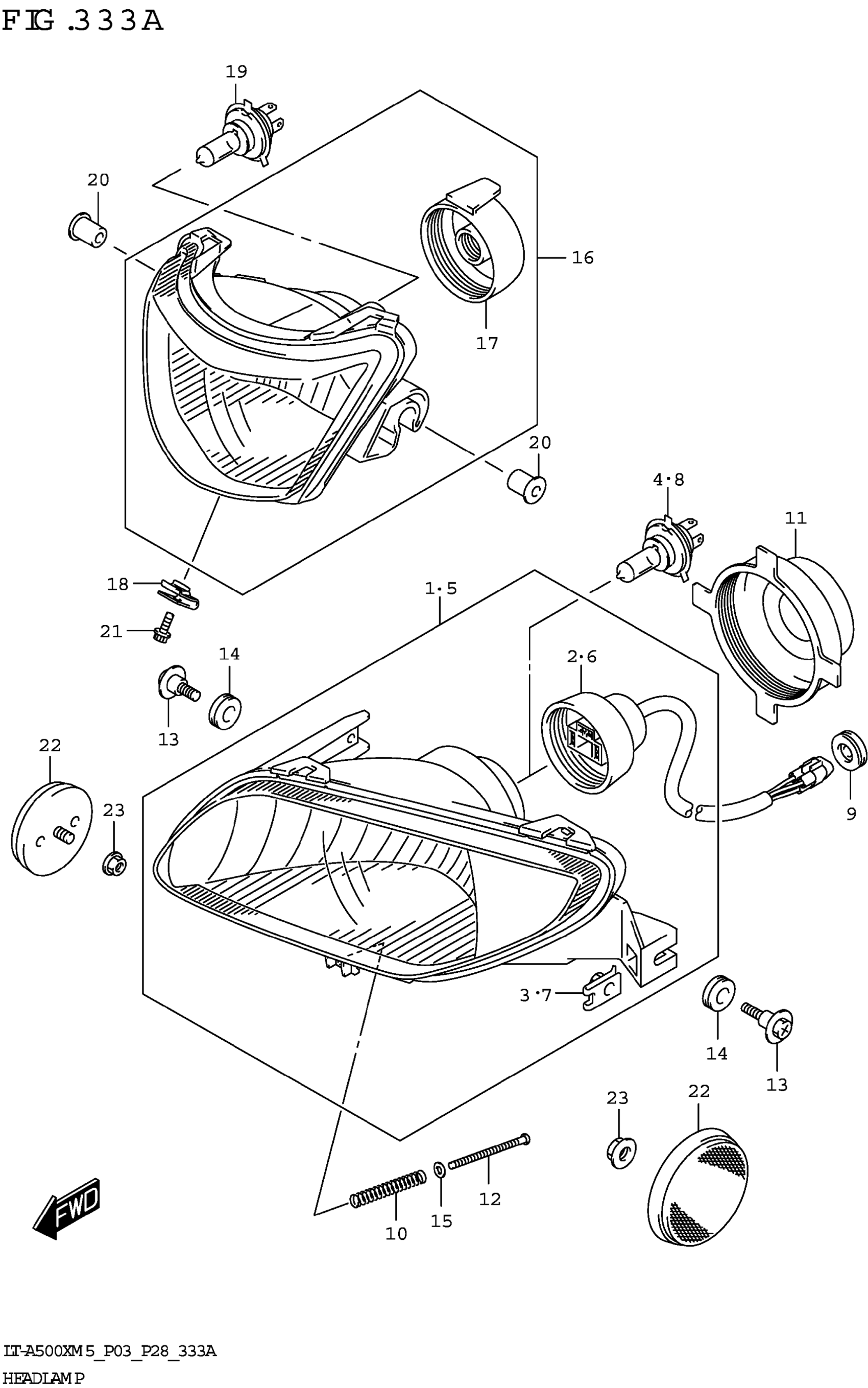

Suzuki LT-A500XM2 (2025) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY RH

35100-31G92-999

$92.66

2

.CORD ASSY RH

35171-31GM1

$33.97

3

.NUT (M6)

35157-31G90

$5.00

4

BULB (12V35/35W,HS1(01750A))

09471-12101

$61.01

5

HEADLAMP ASSY LH

35300-31G92-999

$92.66

6

.CORD ASSY LH

35171-31GH1

$43.43

7

.NUT (M6)

35157-31G90

$5.00

8

BULB (12V35/35W,HS1(01750A))

09471-12101

$61.01

9

GROMMET

09308-07011

$2.64

10

SPRING

35154-31300

$3.49

11

COVER,HEADLAMP HOUSING

35174-31G00

$9.99

12

SCREW (4X50)

09125-04031

$2.29

13

SCREW (6X22.5)

09139-06118

$3.05

14

CUSHION (10X20X10)

09320-10078

$3.81

15

WASHER

08322-0104A

$1.92

16

HEADLAMP ASSY

35100-31GB3-999

$71.16

17

.COVER

35174-31GB0

$13.65

18

NUT (M5)

09148-05052

$3.04

19

BULB (12V35/35W,HS1(01750A))

09471-12101

$61.01

20

CUSHION

09320-07020

$1.21

21

BOLT

07120-0512B

$2.61

22

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$13.94

23

NUT

08316-1005A

$2.19
