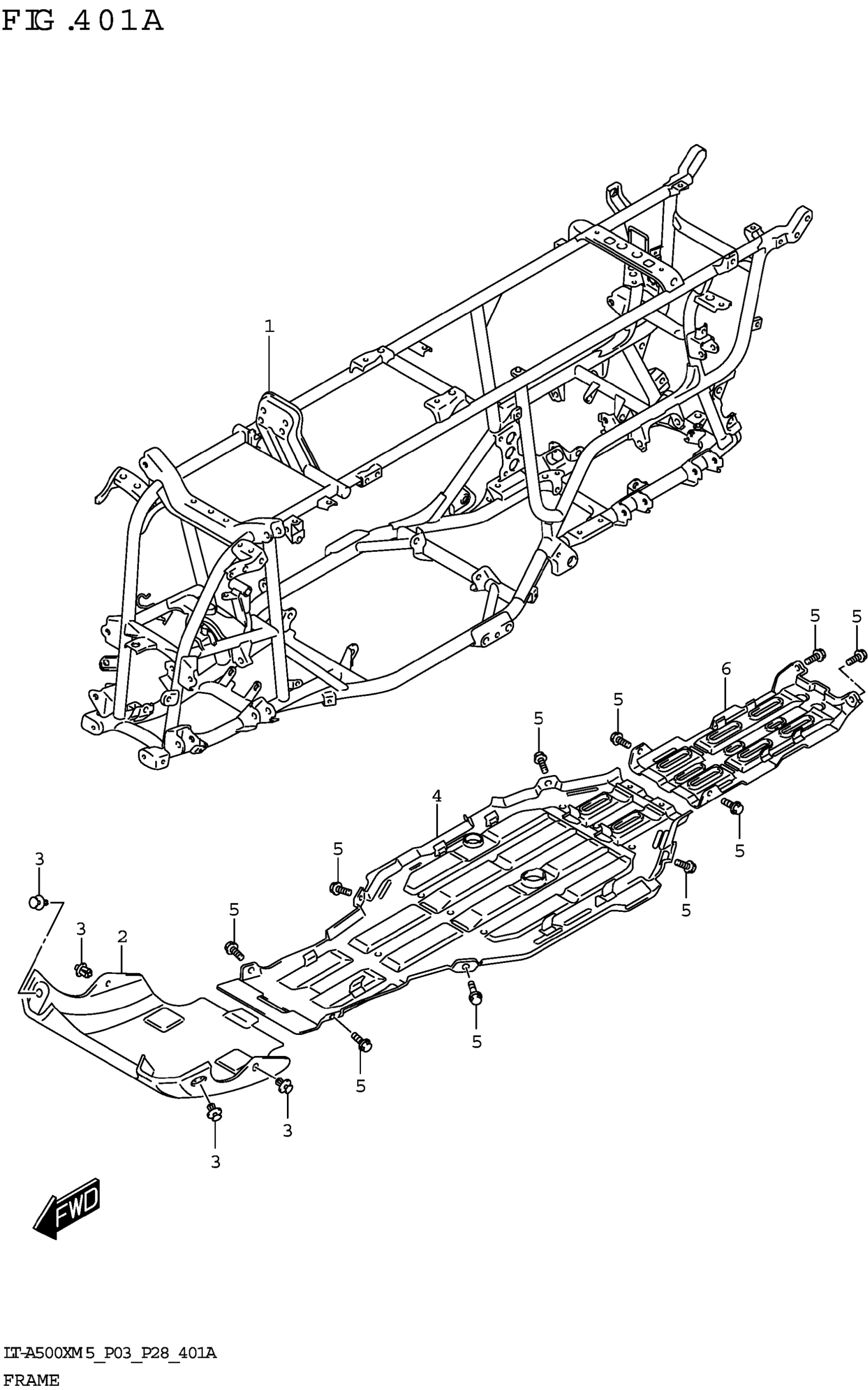

Suzuki LT-A500XM2 (2025) FRAME Diagram

#

Description

Price

1

FRAME

41100-34K01

Unavailable

2

PROTECTOR, FRONT (BLACK)

42521-31G00-291

$57.52

3

CLIP

09409-08008

$1.74

4

PROTECTOR, ENGINE

42511-31G04

$43.30

5

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.16

6

PROTECTOR, REAR

42531-31GB0

$63.12
