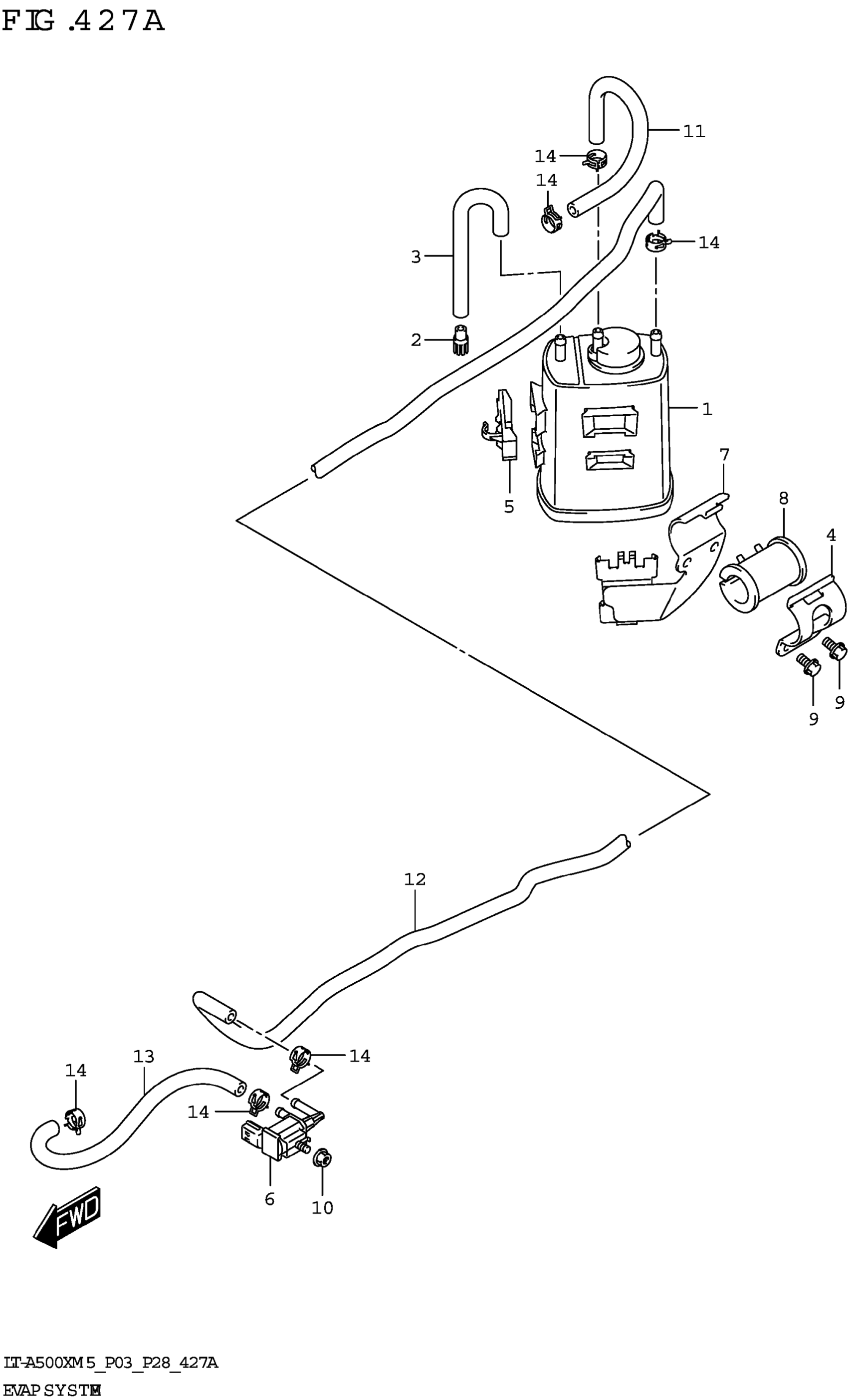

Find the part on the Evap System diagram for your 2025 Suzuki LT-A500XM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki LT-A500XM2 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CANISTER

18560-81AA0

1
Out of stock

2

FILTER, PURGE AIR SUCTION

18566-60G00

—
Out of stock

3

HOSE, CANISTER SUCTION

18567-72L00

1
Out of stock

4

HOLDER, CANISTER BRACKET

18578-34K00

1
Out of stock

5

CLAMP, CANISTER SUCTION

18581-72L00

1
Out of stock

6

VALVE,CANISTER PURGE

18117-52G10

1
Out of stock

7

BRACKET, CANISTER

18570-34K00

1
Out of stock

8

CUSHION, CANISTER BRACKET

18571-34K00

1
Out of stock

9

BOLT

01550-0612A

2
Out of stock

10

NUT (6X12)

08316-1006A

1
Out of stock

11

HOSE, CANISTER SURGE

18561-34K00

1
Out of stock

12

HOSE, CANISTER PURGE NO.1

18562-34K00

1
Out of stock

13

HOSE, CANISTER PURGE NO.2

18563-35K00

1
Out of stock

14

CLIP (ID:10.5,H:8)

09401-10409

6
Out of stock
