2022 Suzuki LT-A500XM2 Rear BOX Diagram

← All diagrams

Find the part on the Rear BOX diagram for your 2022 Suzuki LT-A500XM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

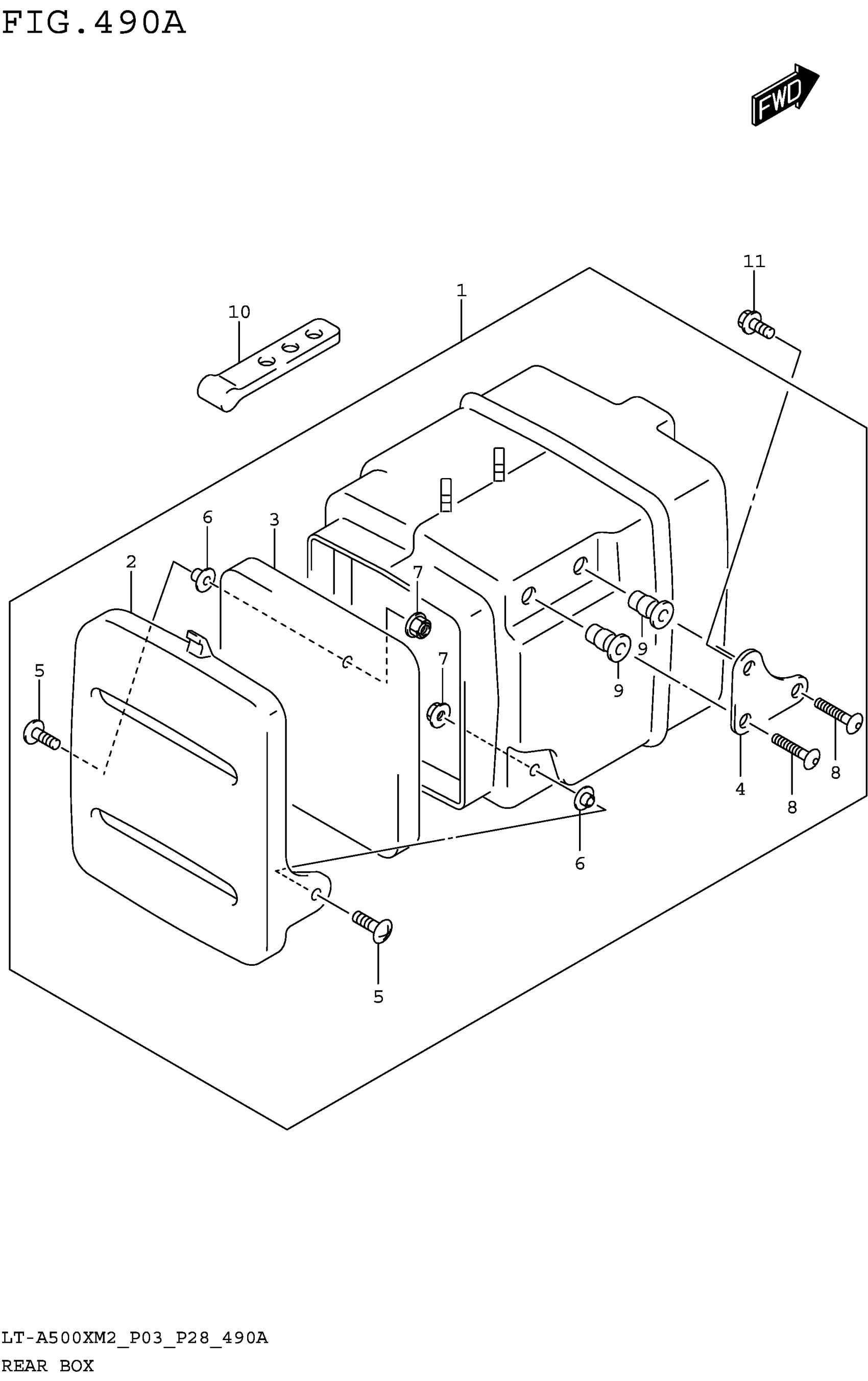

2022 Suzuki LT-A500XM2 Rear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOX ASSY,REAR This part replaces 93100-31GA1.

93100-31GA2

1
Out of stock

2

.LID, REAR BOX

93112-31G00

1

$25.70

In stock

3

.CUSHION, REAR BOX

93114-31GA1

1
Out of stock

4

.BRACKET, REAR BOX

93113-31G00

1
Out of stock

5

SCREW

02142-0616B

2
Out of stock

6

2

$2.43

In stock

7

NUT

08319-3106A

2
Out of stock

8

SCREW

02142-0520B

2
Out of stock

9

NUT (M5)

09159-05019

2
Out of stock

10

BAND, REAR BOX

93191-09F20

1
Out of stock

11

BOLT

01547-0610B

1
Out of stock
