Description

Price

1

GRILLE, FRONT This part replaces 53118-34K03.

53118-34K04

$140.20

2

EMBLEM, MARK S (CHROME)

77811-58J10-0PG

$11.52

3

CLIP

09409-08008

$1.74

4

HOUSING, FRONT LAMP RH This part replaces 53281-34K02.

53281-34K03

$13.65

5

HOUSING,FRT LAM This part replaces 53282-34K02.

53282-34K03-291

$30.93

6

BOLT (L:30)

01550-0630A

$2.31

7

WASHER (6.1X17.0X4.8)

09169-06073

$3.08

8

WASHER (6.5X24X1.6)

09169-06074

$7.49

9

CUSHION (11.5X32X12.2)

09320-11021

$3.77

10

SCREW (6X22.5)

09139-06118

$3.05

11

CUSHION (10X20X10)

09320-10078

$3.81

12

SCREW

03541-0516A

$1.37

13

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

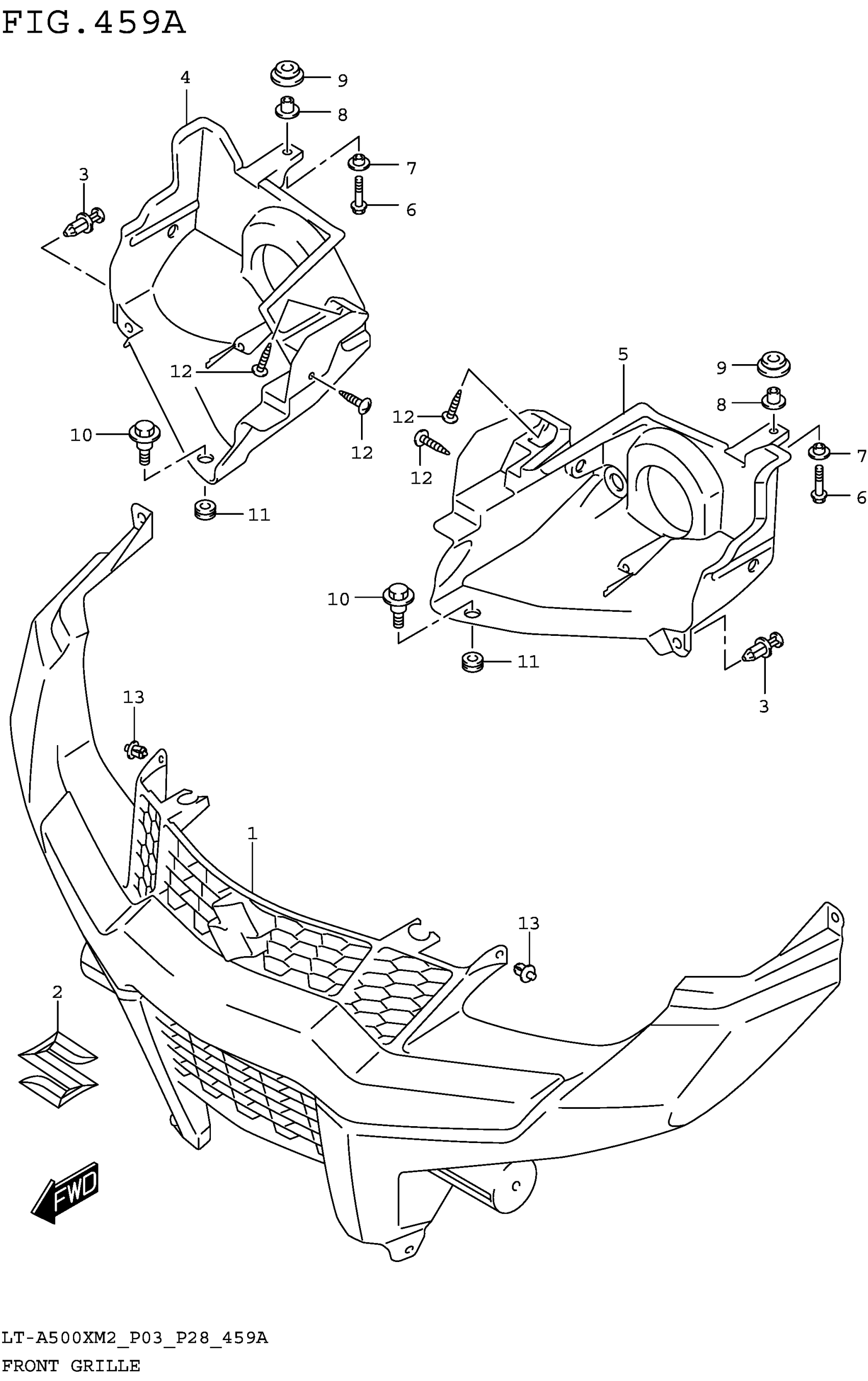

Suzuki LT-A500XM2 (2022) FRONT GRILLE Diagram
