2020 Suzuki LT-A500XM0 Shift Lever Diagram

← All diagrams

Find the part on the Shift Lever diagram for your 2020 Suzuki LT-A500XM0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

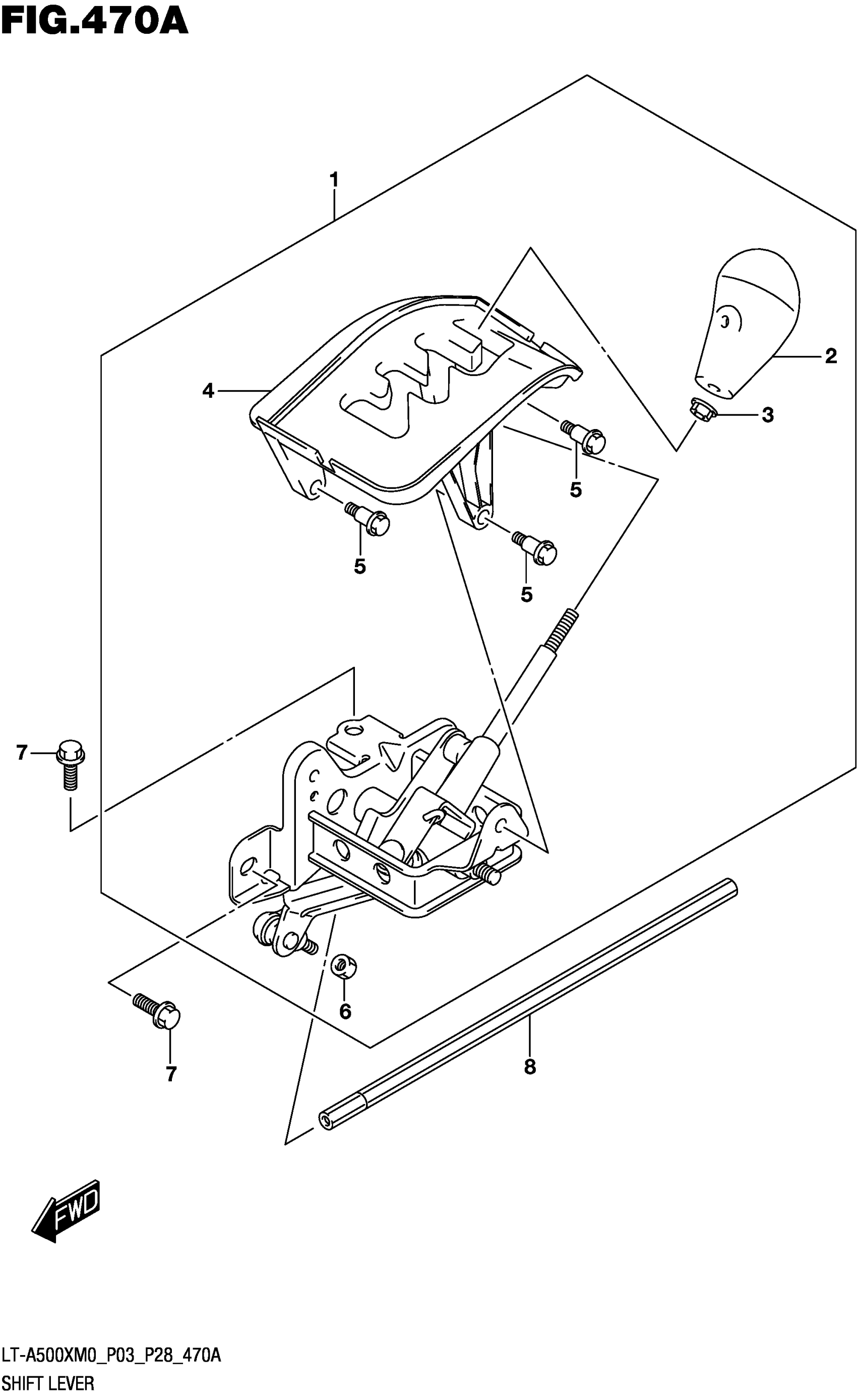

2020 Suzuki LT-A500XM0 Shift Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER ASSY, TRANSMISSION This part replaces 57800-31G21.

57800-31G22

1
Out of stock

2

.KNOB,T/M LEVER

57830-27H00

1
Out of stock

3

NUT

08316-1008B

1
Out of stock

4

.COVER ASSY, T/M LEVER GATE

57940-31G10

1
Out of stock

5

.BOLT (6X20)

09111-06243

3
Out of stock

6

NUT

09140-06025

1
Out of stock

7

BOLT (8X16)

01550-0816A

2
Out of stock

8

ROD, T/M LEVER

57911-31H00

1
Out of stock
