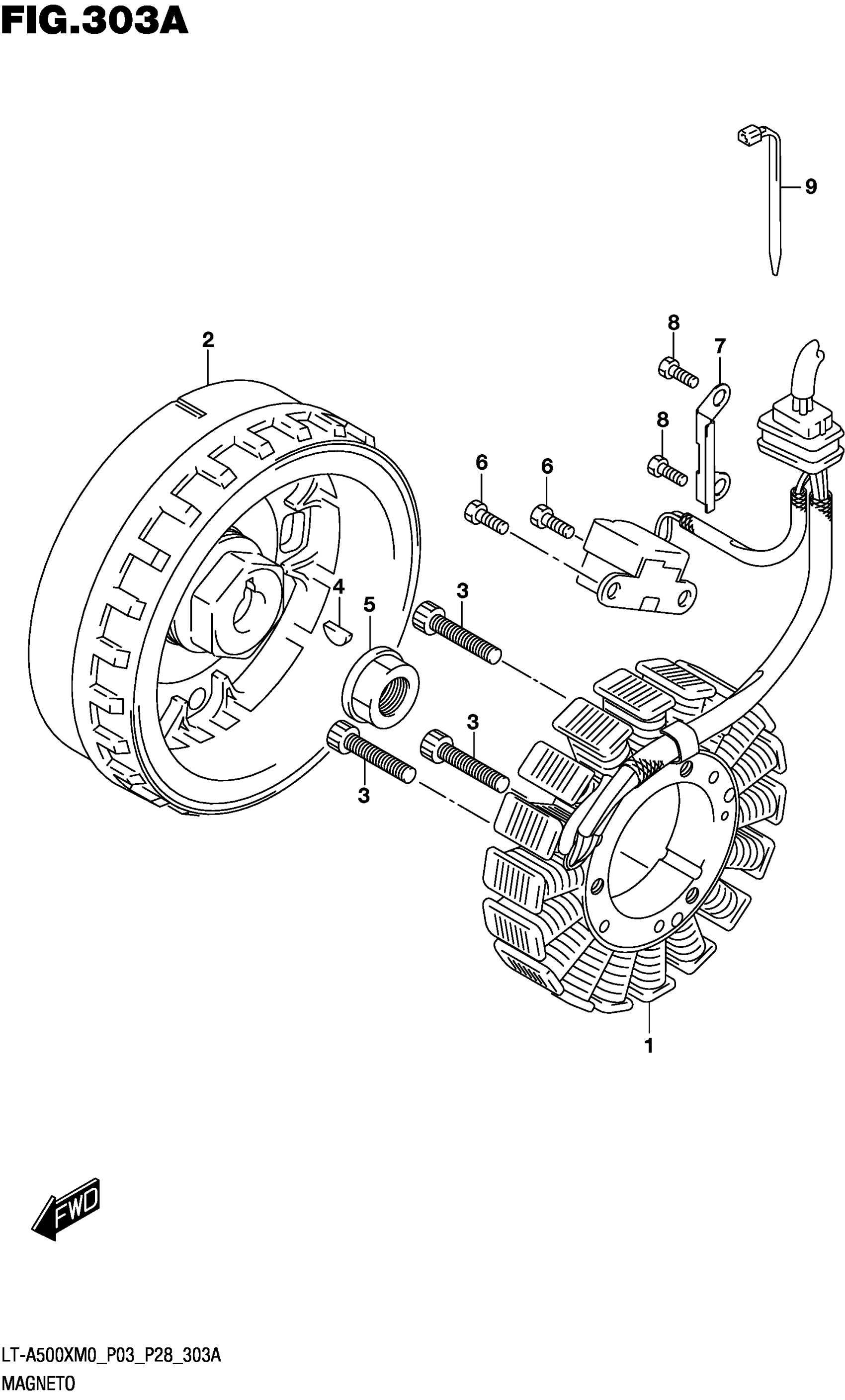

Suzuki LT-A500XM0 (2020) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY, MAGNETO

32101-35K00

$689.65

2

ROTOR ASSY

32102-11H00

$905.42

3

BOLT

07130-0635A

$2.90

4

KEY

09420-05007

$5.00

5

NUT,MAGNETO ROTOR

31792-11H00

$13.30

6

BOLT (5X10)

09100-05019

$2.10

7

CLAMP, MAGNETO LEAD

32371-11H00

$5.70

8

BOLT (5X10)

09100-05019

$2.10

9

CLAMP (L:95)

09407-11401

$2.87
