2020 Suzuki LT-A500XM0 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2020 Suzuki LT-A500XM0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

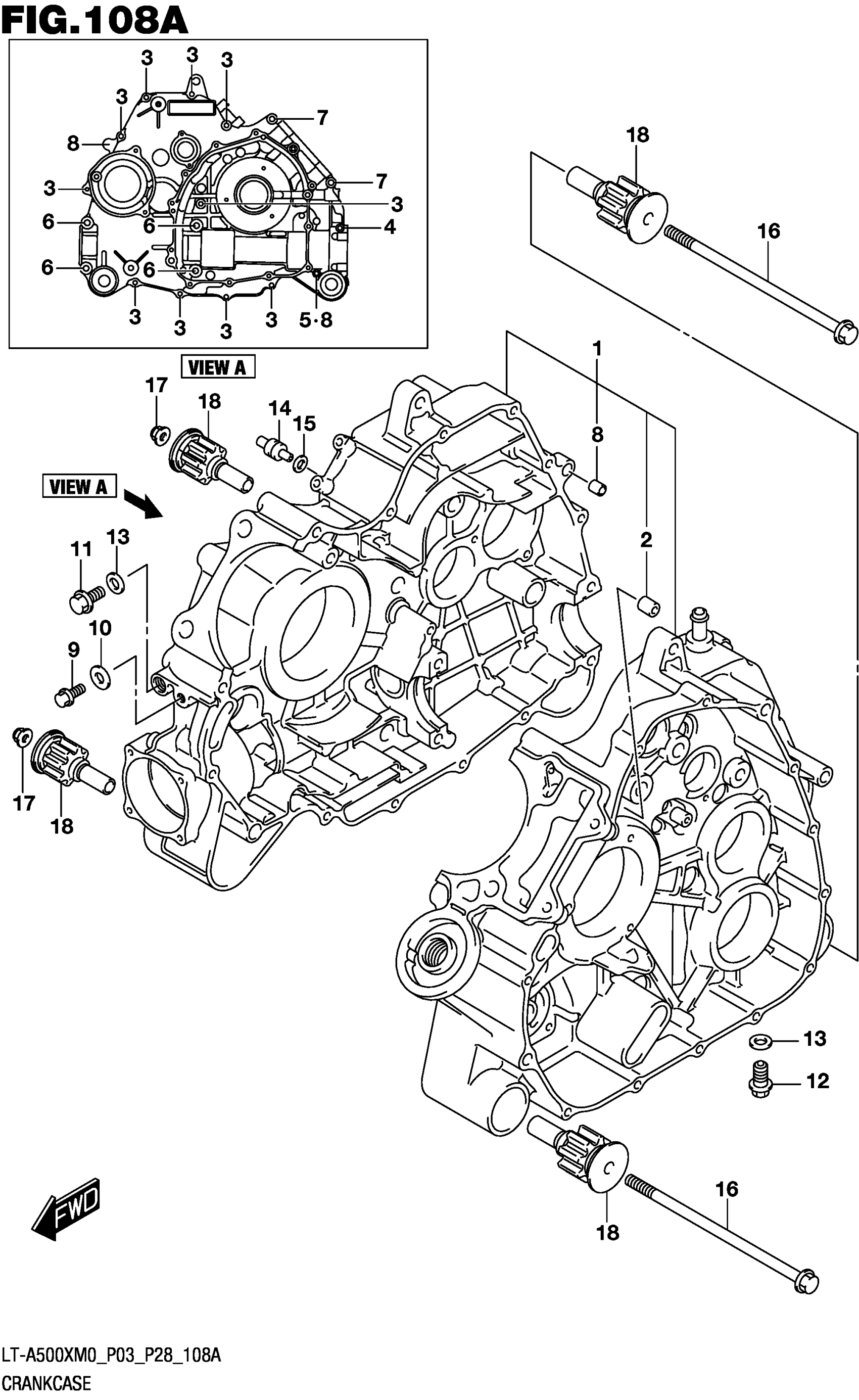

2020 Suzuki LT-A500XM0 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-11871

1
Out of stock

2

PIN (8.2X10X13)

09206-10016

1
Out of stock

3

BOLT

01547-0650A

10
Out of stock

4

.BOLT

01547-0680A

1
Out of stock

5

.BOLT

01547-0690A

1

$2.95

In stock

6

.BOLT

01550-0850A

4
Out of stock

7

BOLT

01550-0875A

2
Out of stock

8

PIN

04211-11169

2
Out of stock

9

BOLT (8X12)

01550-0812A

1
Out of stock

10

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

11

PLUG (12X10)

09247-12006

1
Out of stock

12

PLUG, DRAIN | OIL DRAIN This part replaces 09247-12102.

09247-12104

1
Out of stock

13

GASKET (12.1X16.2X3.7)

09168-12002

2
Out of stock

14

JET,T/M OIL GALLERY

09493-20014

1
Out of stock

15

O-RING (D:1.2,ID:4)

09280-04004

1
Out of stock

16

BOLT (10X195)

09103-10118

2
Out of stock

17

NUT (M10)

09159-10115

2
Out of stock

18

BUSH, ENG MTG

11651-31G10

4
Out of stock
