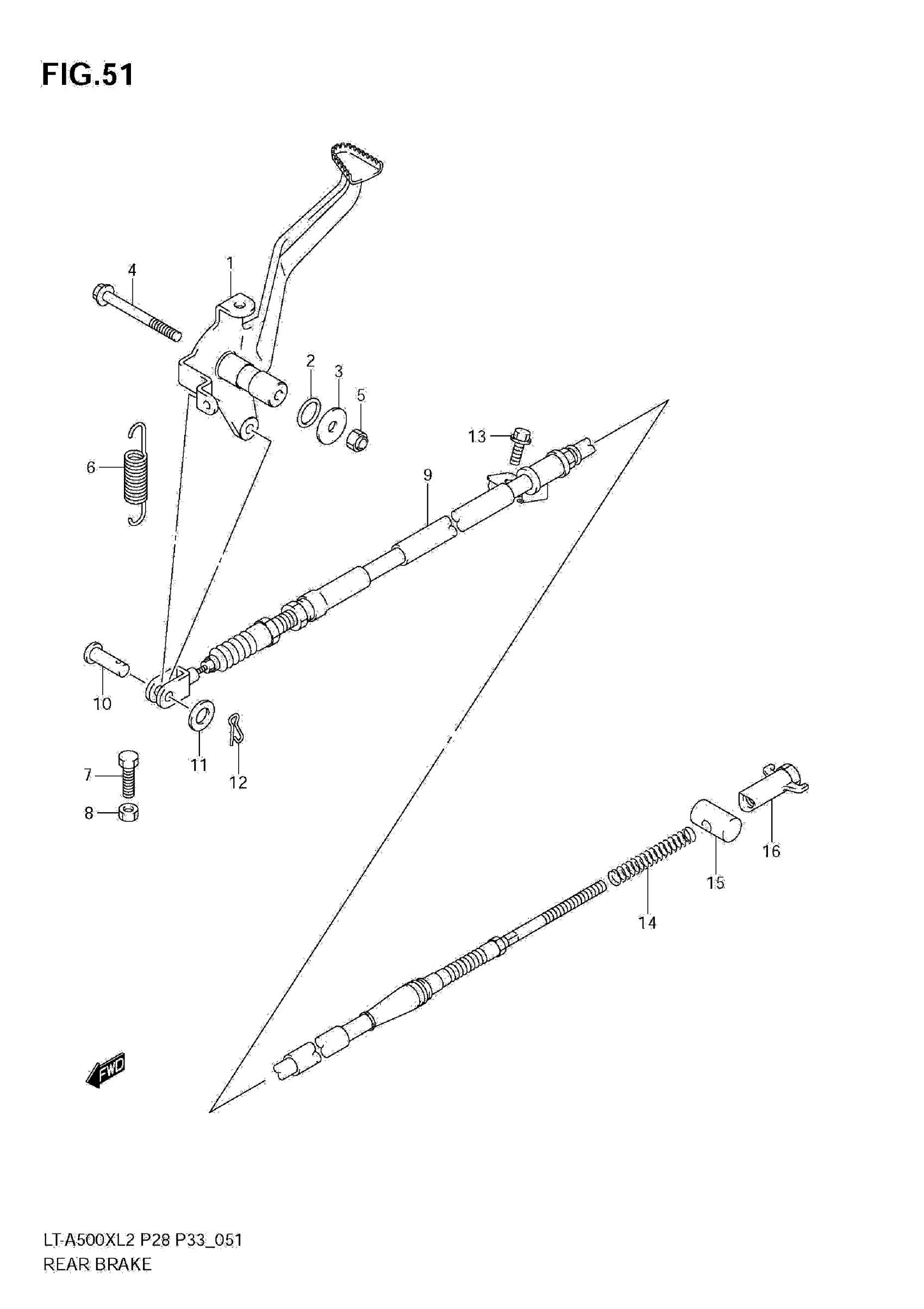

Suzuki LT-A500XLS2 (2012) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-31G00

$218.80

2

O RING (D:2.5,ID:13.8)

09280-14011

$4.44

3

WASHER (6.5X22X2.3)

09160-06138

$1.99

4

BOLT (6X65)

09103-06195

$4.35

5

NUT

08319-2106A

$1.97

6

SPRING

09443-12019

$4.19

7

BOLT

01500-0620A

$1.82

8

NUT

08310-0006A

$1.89

9

CABLE, REAR BRAKE

58510-31G00

$82.60

10

PIN

09200-05001

$1.52

11

WASHER

08322-0106B

$2.31

12

CLIP

09385-06012

$1.97

13

BOLT

01547-0616A

$2.09

14

SPRING

09440-08042

$2.80

15

PIN

09209-13006

$4.86

16

NUT

09150-06015

$3.35
