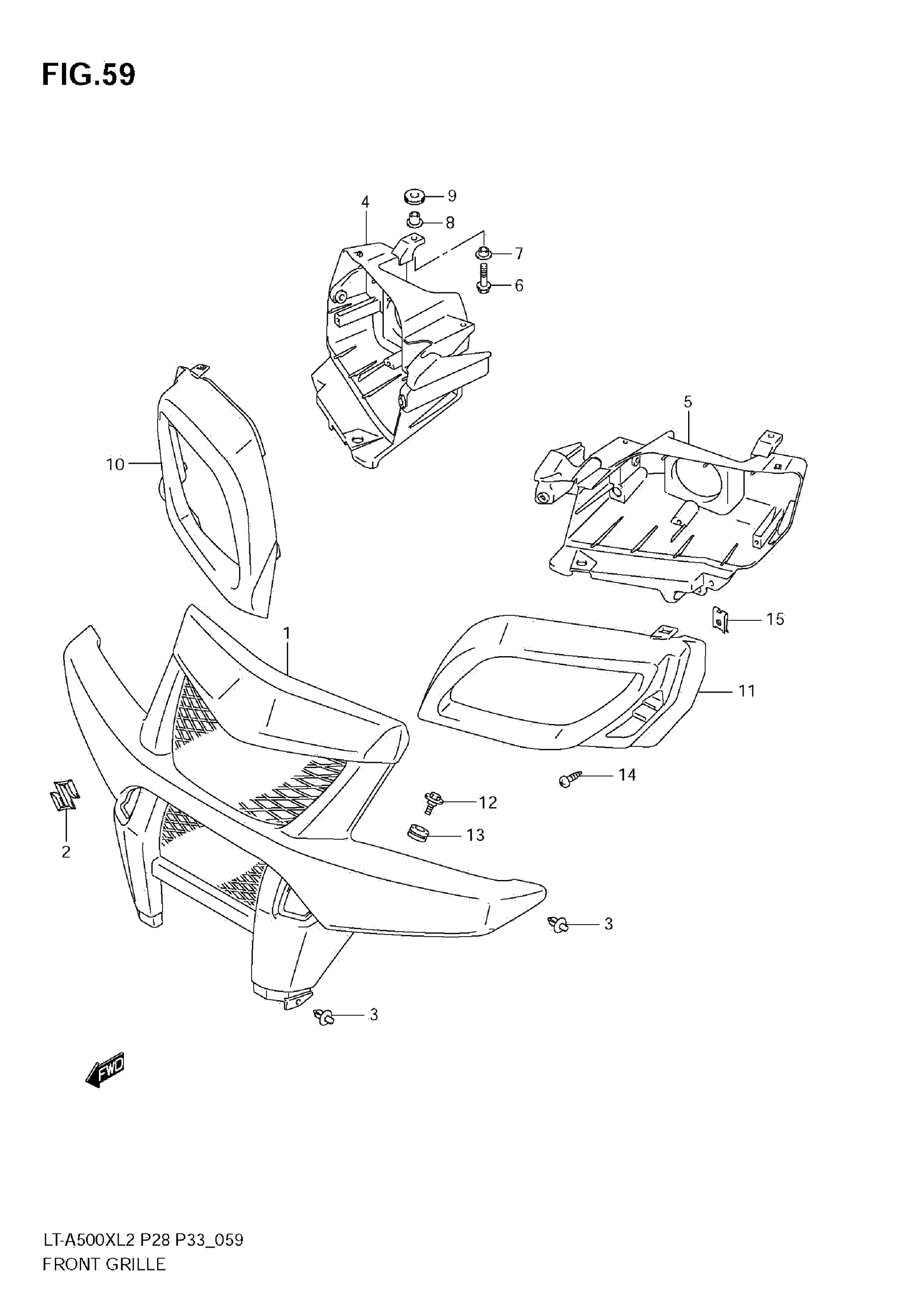

Find the part on the Front Grille diagram for your 2012 Suzuki LT-A500XLS2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A500XLS2 Front Grille Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRILLE,FRONT This part replaces 53118-31G01-291.

53118-31G05-291

1
Out of stock

2

EMBLEM, S

68151-03G40

1
Out of stock

3

CLIP

09409-08335

2
Out of stock

4

HOUSING,FRONT L This part replaces 53281-31G01-291.

53281-31G04-291

1
Out of stock

5

HOUSING, FRONT LH (BLACK)

53284-31G01-291

1
Out of stock

6

BOLT

01547-0630B

2
Out of stock

7

WASHER

09169-06073

2
Out of stock

8

WASHER (6.5X24X1.6)

09169-06074

2
Out of stock

9

CUSHION (11.5X32X12.2)

09320-11021

2
Out of stock

10

COVER,FRONT LAM This part replaces 53282-31G01-291.

53282-31G03-291

1
Out of stock

11

COVER,FRONT LAM This part replaces 53283-31G01-291.

53283-31G03-291

1
Out of stock

12

SCREW (6X22.5)

09139-06118

2
Out of stock

13

CUSHION

09320-10501

2
Out of stock

14

SCREW

03241-0516A

6
Out of stock

15

NUT

09148-05038

2
Out of stock
