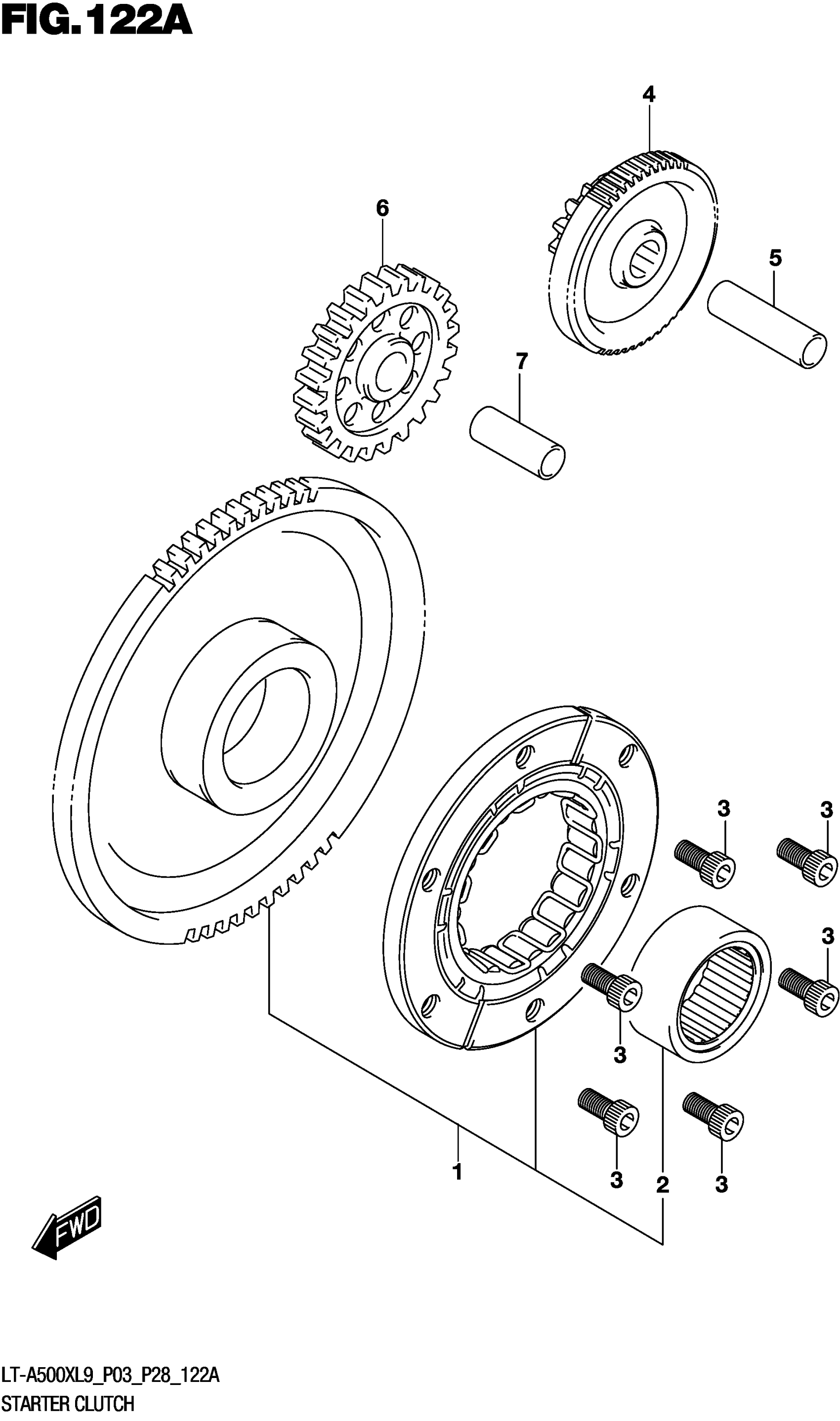

Suzuki LT-A500XL9 (2019) STARTER CLUTCH Diagram

#

Description
Price

1

CLUTCH SET, STARTER (NT:73)

12600-11810

$401.62

2

.BEARING (31X39X17.8)

09263-31009

$51.08

3

.BOLT (8X16)

09106-08190

$2.88

4

GEAR, STARTER IDLE NO.1

12611-11H00

$102.83

4

GEAR, STARTER IDLE NO.1

12611-11H00

$102.83

5

PIN (8X12X45.5)

09206-12006

$8.64

6

GEAR, STARTER IDLE NO.2

12612-31G00

$98.00

6

GEAR, STARTER IDLE NO.2

12612-31G00

$98.00

7

PIN (8X12X33)

09206-12007

$6.25
