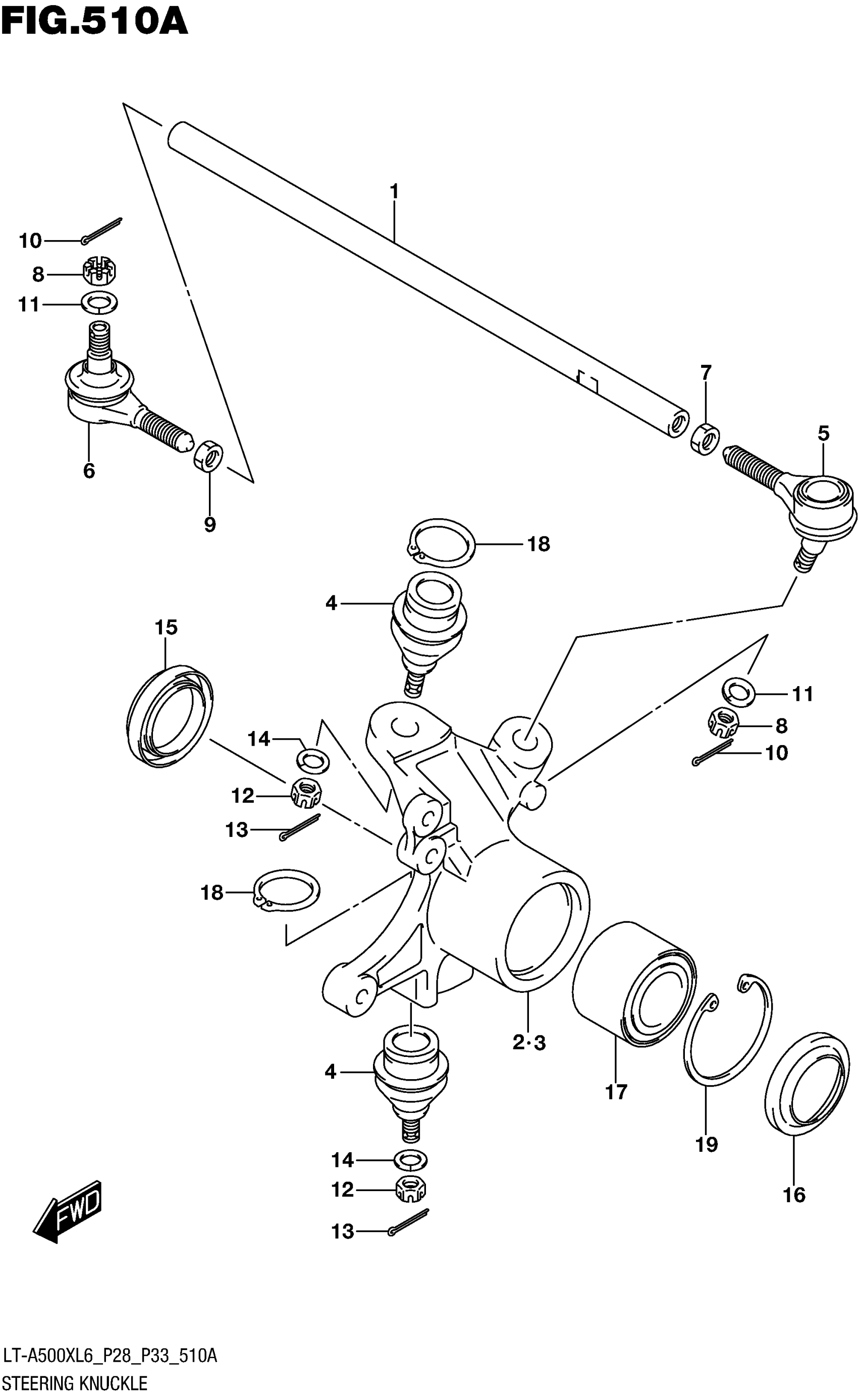

Find the part on the Steering Knuckle diagram for your 2016 Suzuki LT-A500XL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-A500XL6 Steering Knuckle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-31G01

2
Out of stock

2

KNUCKLE, STEERING RH

51231-11H00

1
Out of stock

3

KNUCKLE, STEERING LH

51241-11H00

1
Out of stock

4

END, KNUCKLE STEERING

51210-31G10

4
Out of stock

5

ROD, END RH

51260-31G10

2
Out of stock

6

ROD, END LH

51270-31G10

2
Out of stock

7

NUT

09140-12030

2
Out of stock

8

NUT

08314-4010B

4
Out of stock

9

NUT

09140-12035

2
Out of stock

10

PIN

04111-2020A

4
Out of stock

11

WASHER (10.5X19X2)

09160-10082

4
Out of stock

12

NUT

08314-4010B

4
Out of stock

13

PIN

04111-2020A

4
Out of stock

14

WASHER (10.5X19X2)

09160-10082

4
Out of stock

15

OIL SEAL (38X55X8)

09283-38012

2
Out of stock

16

OIL SEAL (38X55X6)

09285-38002

2
Out of stock

17

BEARING

51259-31G10

2
Out of stock

18

CIRCLIP

08331-31309

4
Out of stock

19

CLIP

08331-41559

2
Out of stock
