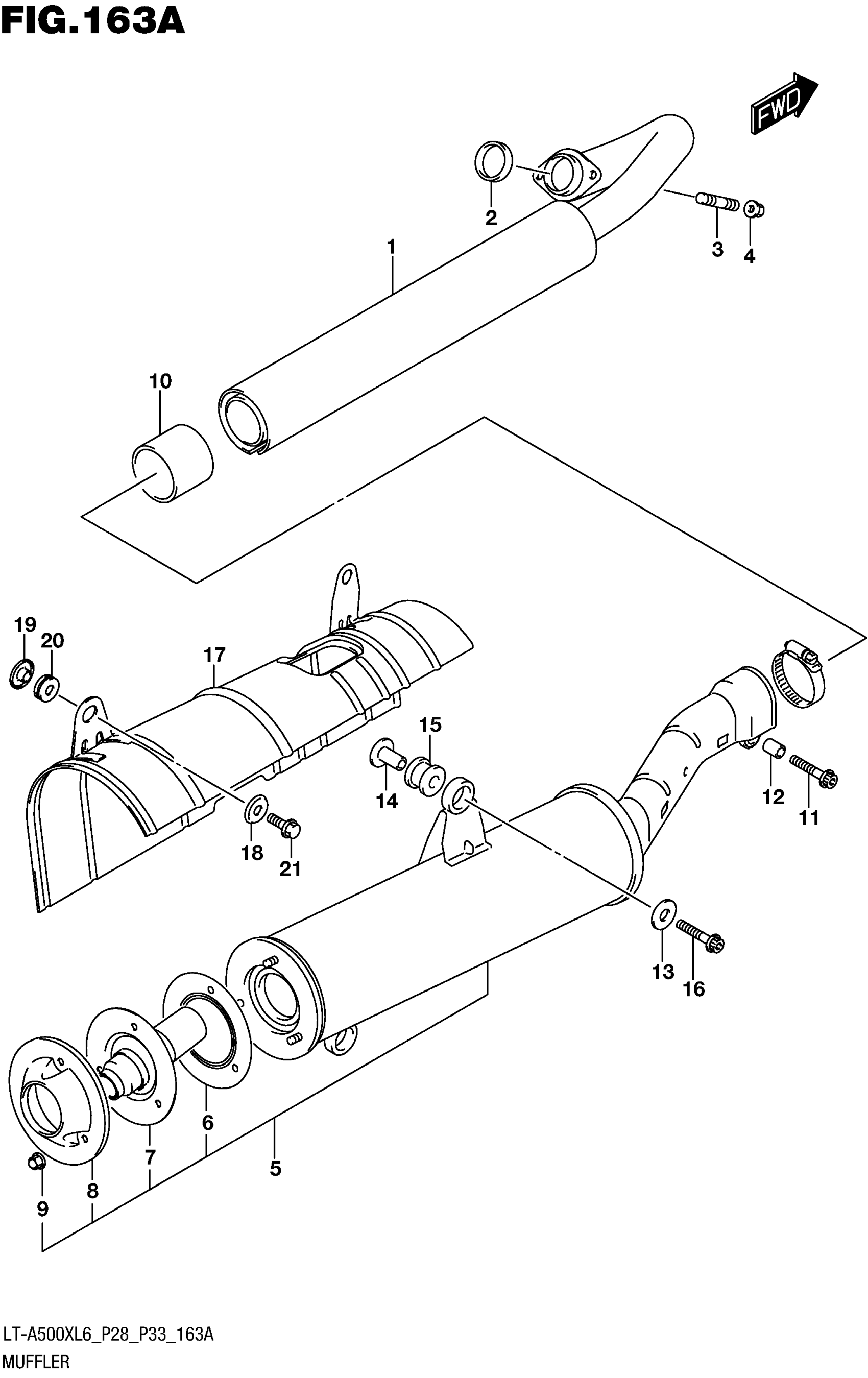

Suzuki LT-A500XL6 (2016) MUFFLER Diagram

#

Description
Price

1

PIPE ASSY, EXH This part replaces 14100-11H00.

14100-11H30

$196.27

2

.GASKET,EXHAUST

14181-18C00

$6.61

3

STUD BOLT

01421-0820A

$1.92

4

NUT

08319-3108A

$2.31

5

BODY,MUFFLER This part replaces 14310-11H10.

14310-11H31

$802.07

6

.GASKET

14770-11H00

$24.07

7

.ARRESTER

14850-11H10

$97.42

8

.PLATE

14852-11H00

Unavailable

9

.NUT

08313-20067

$2.43

10

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

$14.26

11

BOLT

07120-0835A

$3.25

12

SPACER

14424-07G01

$4.47

13

WASHER (8.5X30X2.3)

09160-08503

$2.53

14

SPACER (8.6X12X24.2)

09180-08152

$5.26

15

CUSHION

09320-12071

$8.37

16

BOLT

07120-0840A

$3.08

17

COVER, MUFFLER

14880-31G00

$215.27

18

WASHER, MUF COVER

14184-07G00

$1.93

19

SPACER, MUF COVER

14185-07G00

$3.53

20

CUSHION

09320-08069

$7.67

21

BOLT

01550-0616A

$1.97
