2015 Suzuki LT-A500XL5 Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2015 Suzuki LT-A500XL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

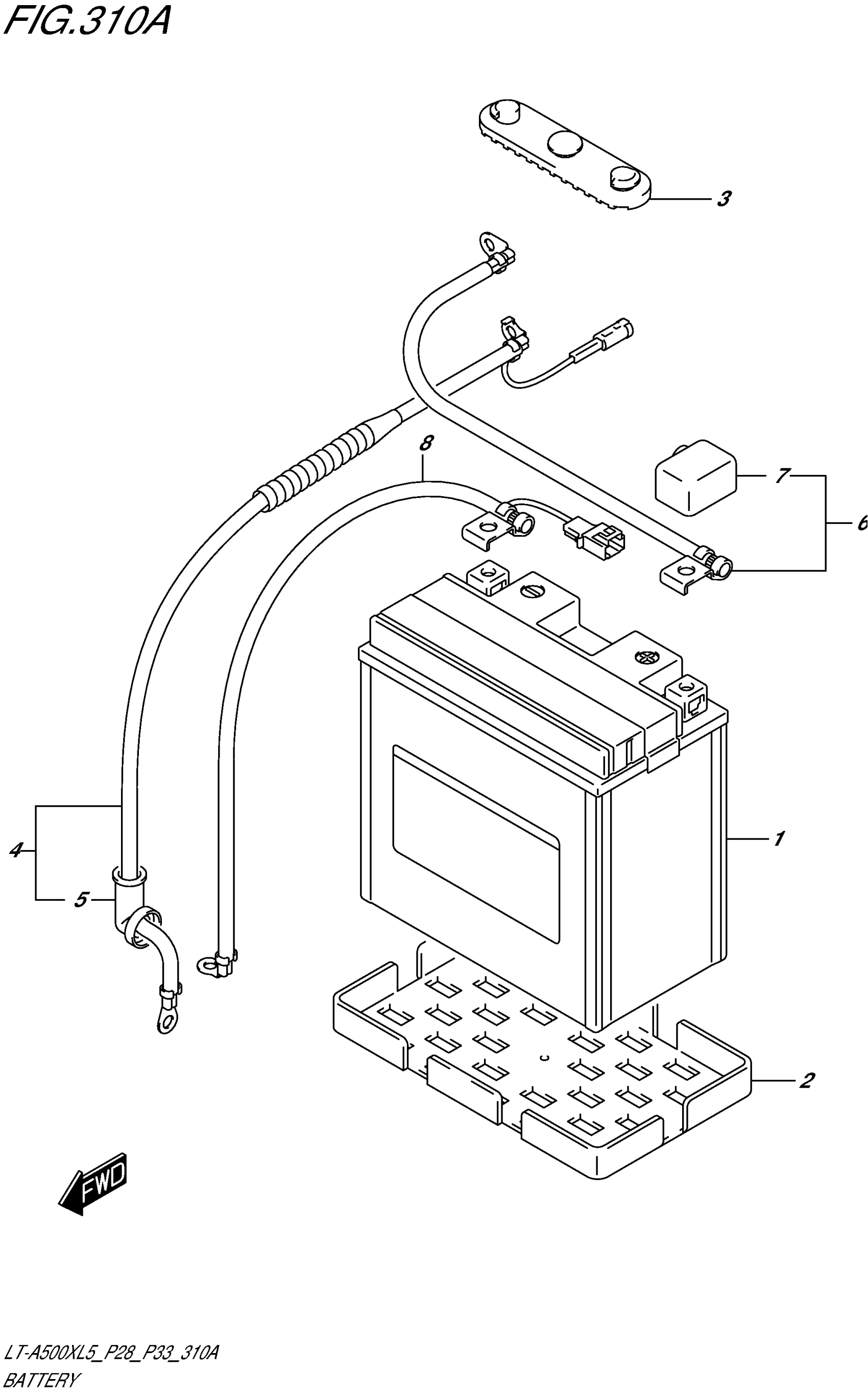

2015 Suzuki LT-A500XL5 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY This part replaces 33610-03G11.

33610-03G10

1
Out of stock

2

PROTECTOR,BATTERY

33652-16G00

1
Out of stock

3

PROTECTOR, BATTERY

33652-07G00

1
Out of stock

4

WIRE, STARTER MOTOR

33810-11H10

1
Out of stock

5

CAP, STARTER MOTOR LEAD

31861-48B10

1
Out of stock

6

WIRE, BATTERY PLUS

33820-31G00

1
Out of stock

7

CAP, BATTERY PLUS TERM

33624-10D00

1
Out of stock

8

WIRE, BATTERY MINUS

33860-31G10

1
Out of stock
