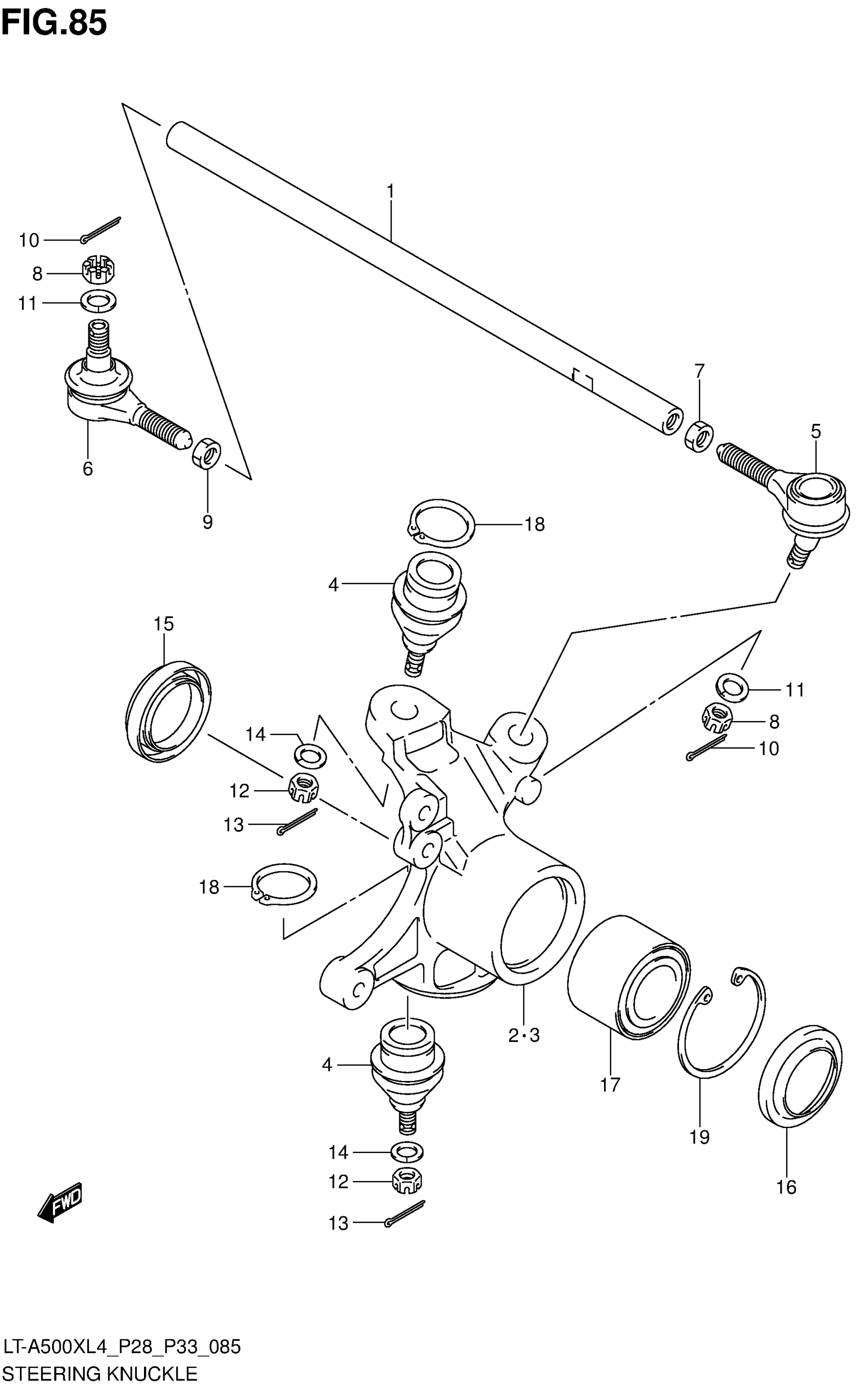

Suzuki LT-A500XL4 (2014) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-31G01

$45.48

2

KNUCKLE, STEERING RH

51231-11H00

$368.62

3

KNUCKLE, STEERING LH

51241-11H00

$368.62

4

END, KNUCKLE STEERING

51210-31G10

$62.90

5

ROD, END RH

51260-31G10

$53.46

6

ROD, END LH

51270-31G10

$51.97

7

NUT

09140-12030

$2.80

8

NUT

08314-4010B

$2.58

9

NUT

09140-12035

$2.80

10

PIN

04111-2020A

$1.25

11

WASHER (10.5X19X2)

09160-10082

$1.66

12

NUT

08314-4010B

$2.58

13

PIN

04111-2020A

$1.25

14

WASHER (10.5X19X2)

09160-10082

$1.66

15

OIL SEAL (38X55X8)

09283-38012

$13.70

16

OIL SEAL (38X55X6)

09285-38002

$12.97

17

BEARING This part replaces 51259-31G00.

51259-31G10

$97.27

18

CIRCLIP

08331-31309

$2.68

19

CLIP

08331-41559

$3.49
