2014 Suzuki LT-A500XL4 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2014 Suzuki LT-A500XL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

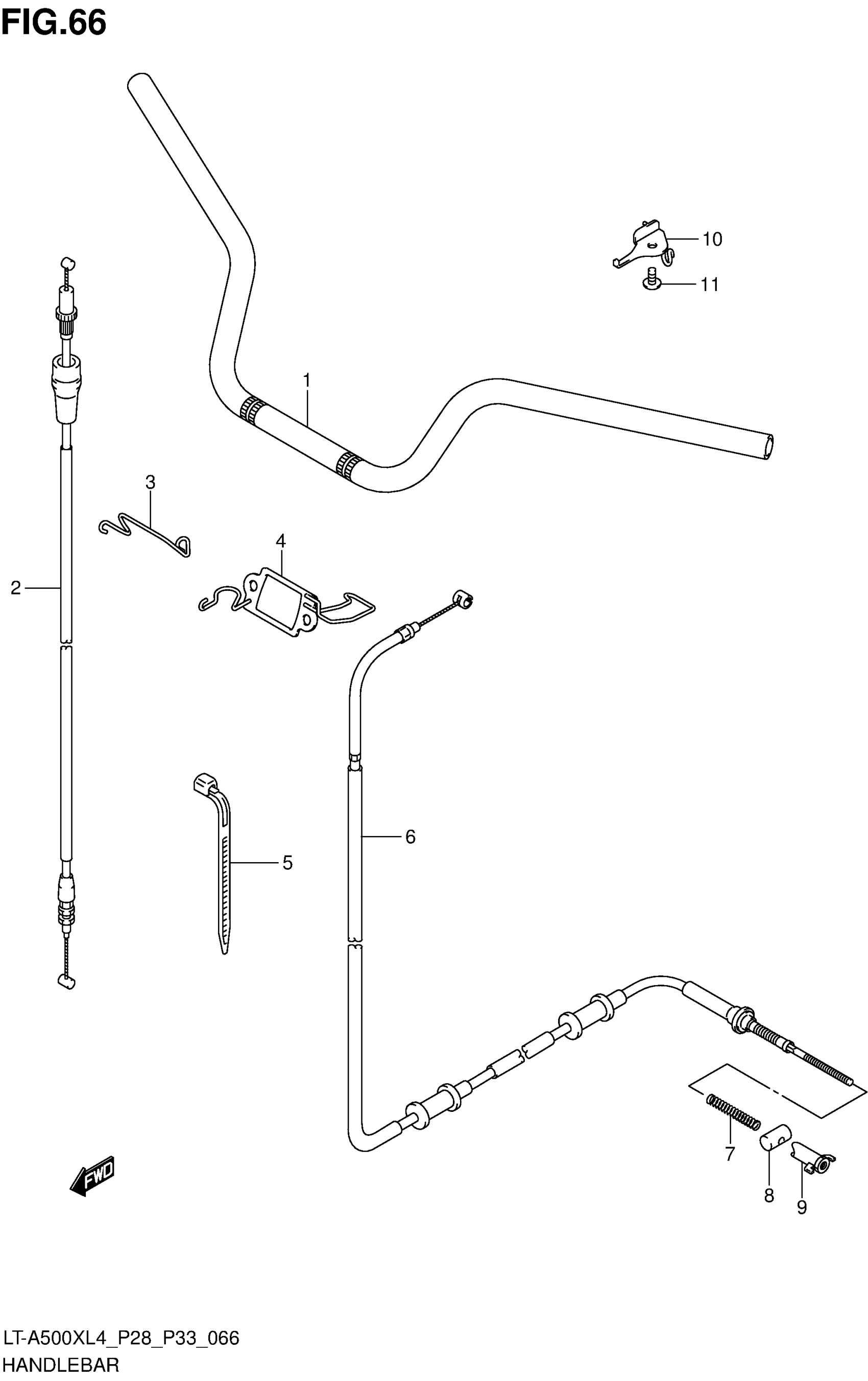

2014 Suzuki LT-A500XL4 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE BAR

56111-31G30

1
Out of stock

2

CABLE ASSY,THRO This part replaces 58300-31G10.

58300-31G11

1
Out of stock

3

GUIDE, THROTTLE CABLE

58626-31G00

1
Out of stock

4

GUIDE, CABLE

58620-31G00

1
Out of stock

5

CLAMP (L:165)

09407-18402

1
Out of stock

6

CABLE, PARKING BRAKE

58810-31G10

1
Out of stock

7

SPRING

09440-08042

1
Out of stock

8

PIN

09209-13006

1
Out of stock

9

NUT

09150-06015

1
Out of stock

10

GUIDE, PARKING CABLE

58620-31G10

1
Out of stock

11

SCREW

03541-0616B

1
Out of stock
