2013 Suzuki LT-A500XL3 Front BOX Diagram

← All diagrams

Find the part on the Front BOX diagram for your 2013 Suzuki LT-A500XL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

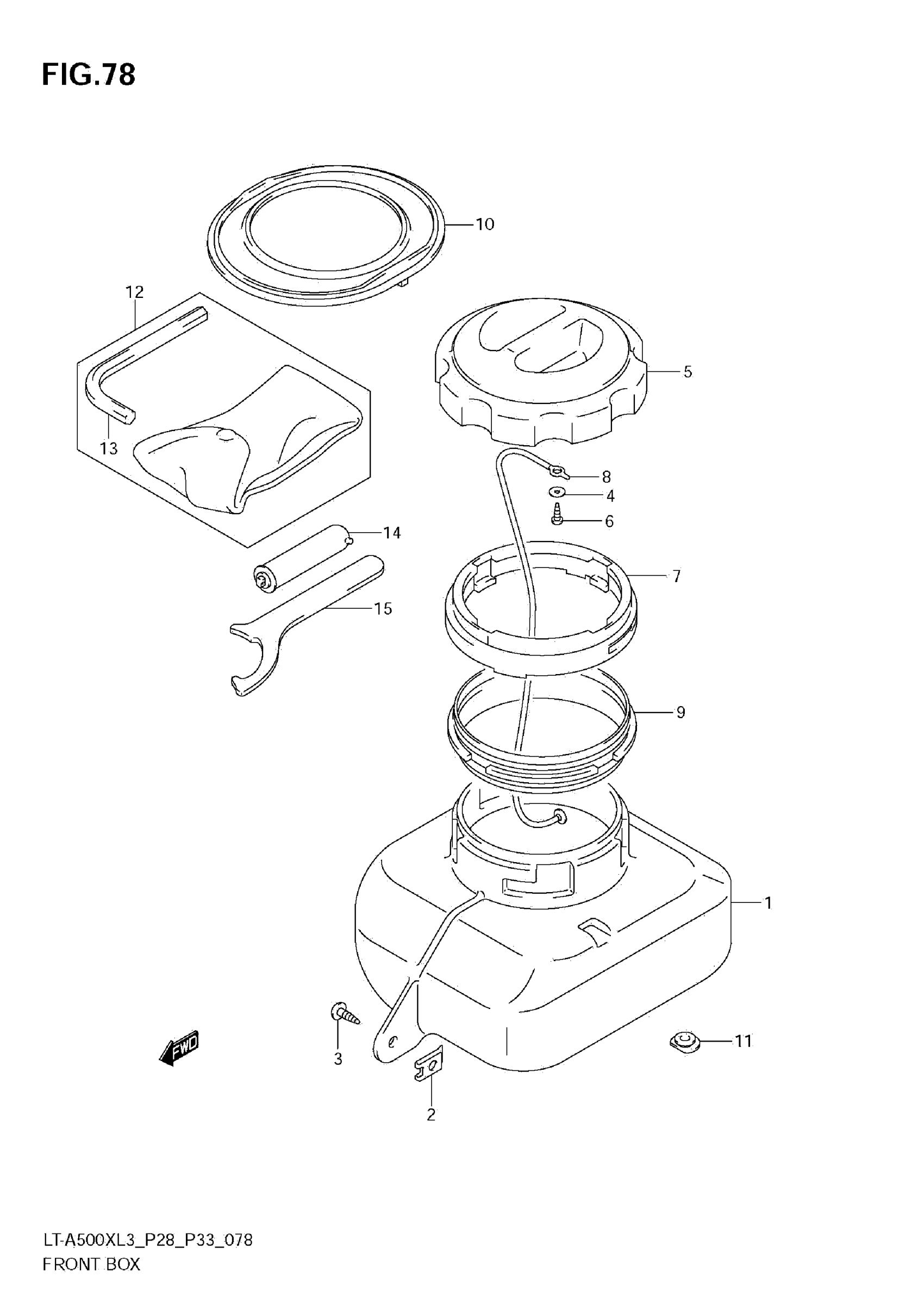

2013 Suzuki LT-A500XL3 Front BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, FRONT BOX

92111-31G10

1
Out of stock

2

NUT

09148-05038

1
Out of stock

3

SCREW

03541-0516A

1
Out of stock

4

WASHER (5.2X16X1)

09160-05013

1
Out of stock

5

LID,FRONT BOX This part replaces 92112-31G00.

92112-31G01

1
Out of stock

6

SCREW

03511-0512B

1
Out of stock

7

HOLDER,FRONT BOX This part replaces 92113-03G00.

92113-03G01

1
Out of stock

8

STOPPER, FRONT BOX

92114-03G20

1
Out of stock

9

CUSHION, FRONT BOX

92141-31G00

1
Out of stock

10

CUSHION, FRONT BOX NO.1

92142-31G00

1
Out of stock

11

CAP (OD:18) This part replaces 09250-10011.

09250-10033

1
Out of stock

12

TOOL ASSY This part replaces 09800-21055.

09800-21102

1
Out of stock

13

SPANNER, 4 HEXAGON

09816-00103

1
Out of stock

14

GAUGE ASSY,AIR PRESSUR

96200-18A02

1
Out of stock

15

CLAMP,WRENCH

09822-00003

1
Out of stock
