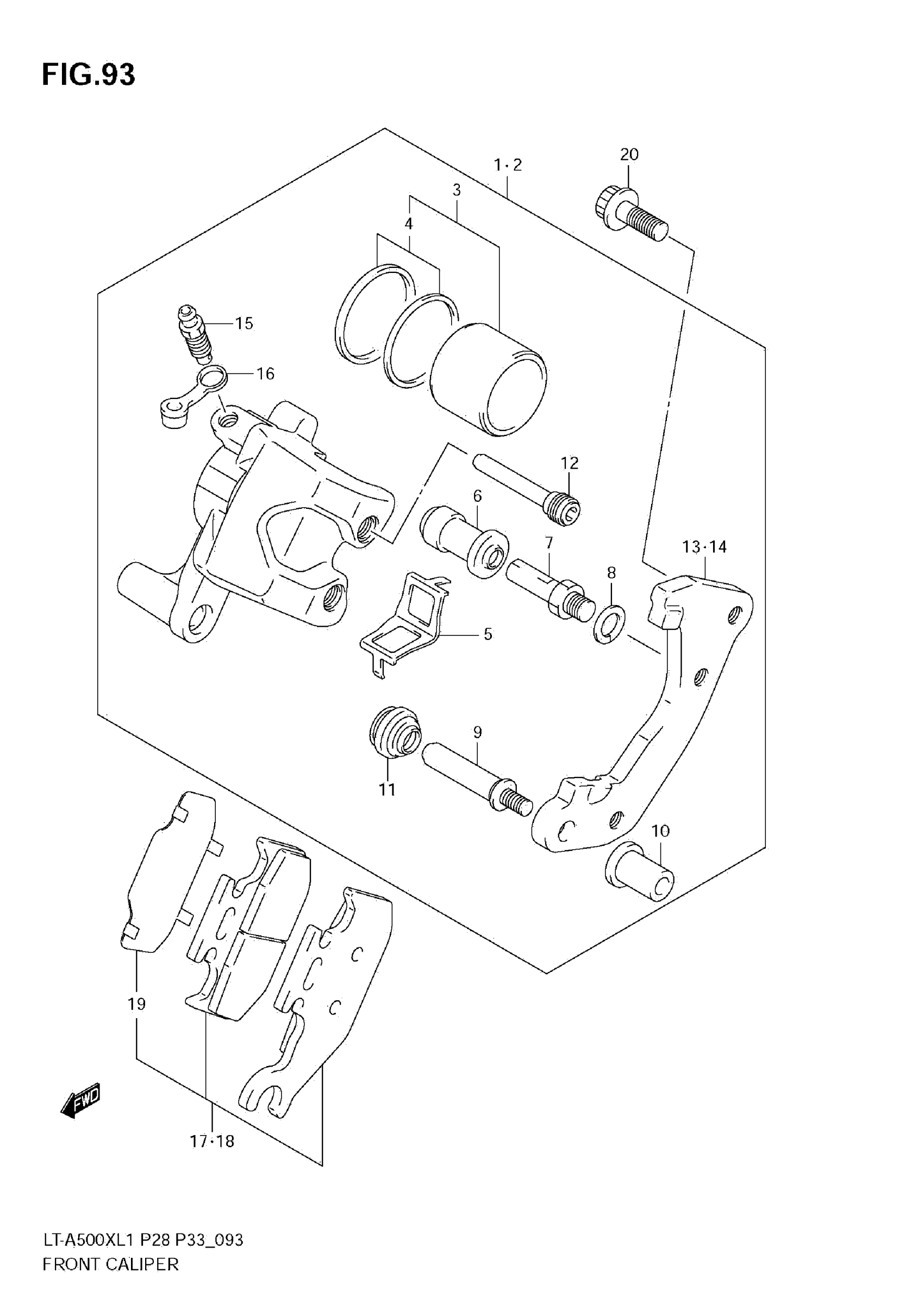

Suzuki LT-A500XL1 (2011) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-31G00-999

$363.38

2

CALIPER ASSY,FRONT,L

59300-31G01-999

$363.38

3

PISTON SET

59300-13810

$42.57

4

..SEAL SET,PISTON

69100-13820

$8.38

5

SPRING, PAD

59315-27C00

$15.83

6

BOOT

59386-13A00

$7.60

7

PIN

59382-13A00

$7.56

8

WASHER

59314-13A00

$2.28

9

PIN

59387-00B20

$18.25

10

NUT

59388-00B20

$20.13

11

BOOT

59303-14500

$5.29

12

.PIN,HANGER

59145-39D00

$24.33

13

BRACKET, RH

59151-31G00

$60.38

14

BRACKET, LH

59351-31G00

$60.38

15

BLEEDER

59121-01A00

$8.35

16

CAP

59122-01A00

$4.15

17

PAD & SHIM SET RH

59100-31850

$137.87

18

PAD & SHIM SET LH

59100-31860

$137.87

19

SHIM

69132-28C00

$10.68

20

BOLT (8X20)

09106-08176

$4.42
