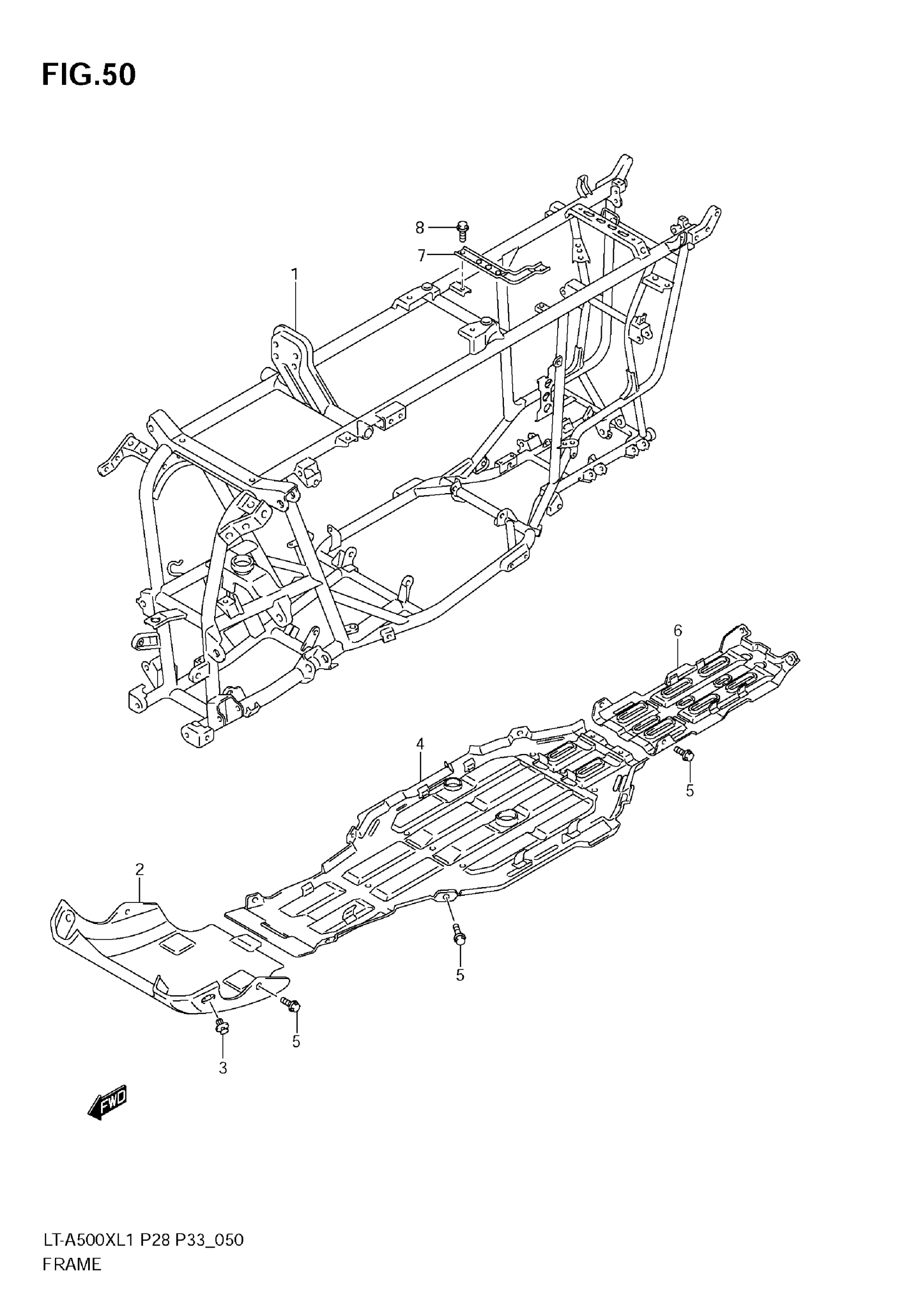

Suzuki LT-A500XL1 (2011) FRAME Diagram

#

Description

Price

1

FRAME (BLACK) This part replaces 41100-31GA3-019.

41100-31GD0-019

$1,879.15

2

PROTECTOR, FRONT (BLACK)

42521-31G00-291

$60.11

3

CLIP

09409-08335

$2.44

4

PROTECTOR, ENGINE This part replaces 42511-31G02.

42511-31G04

$45.25

5

SCREW (6X12)

09111-06085

$4.28

6

PROTECTOR, REAR This part replaces 42531-31G01.

42531-31G01-291

$30.93

7

PLATE, BATTERY This part replaces 41561-31G00.

41561-31G01

$8.17

8

BOLT

01550-0616A

$2.01
