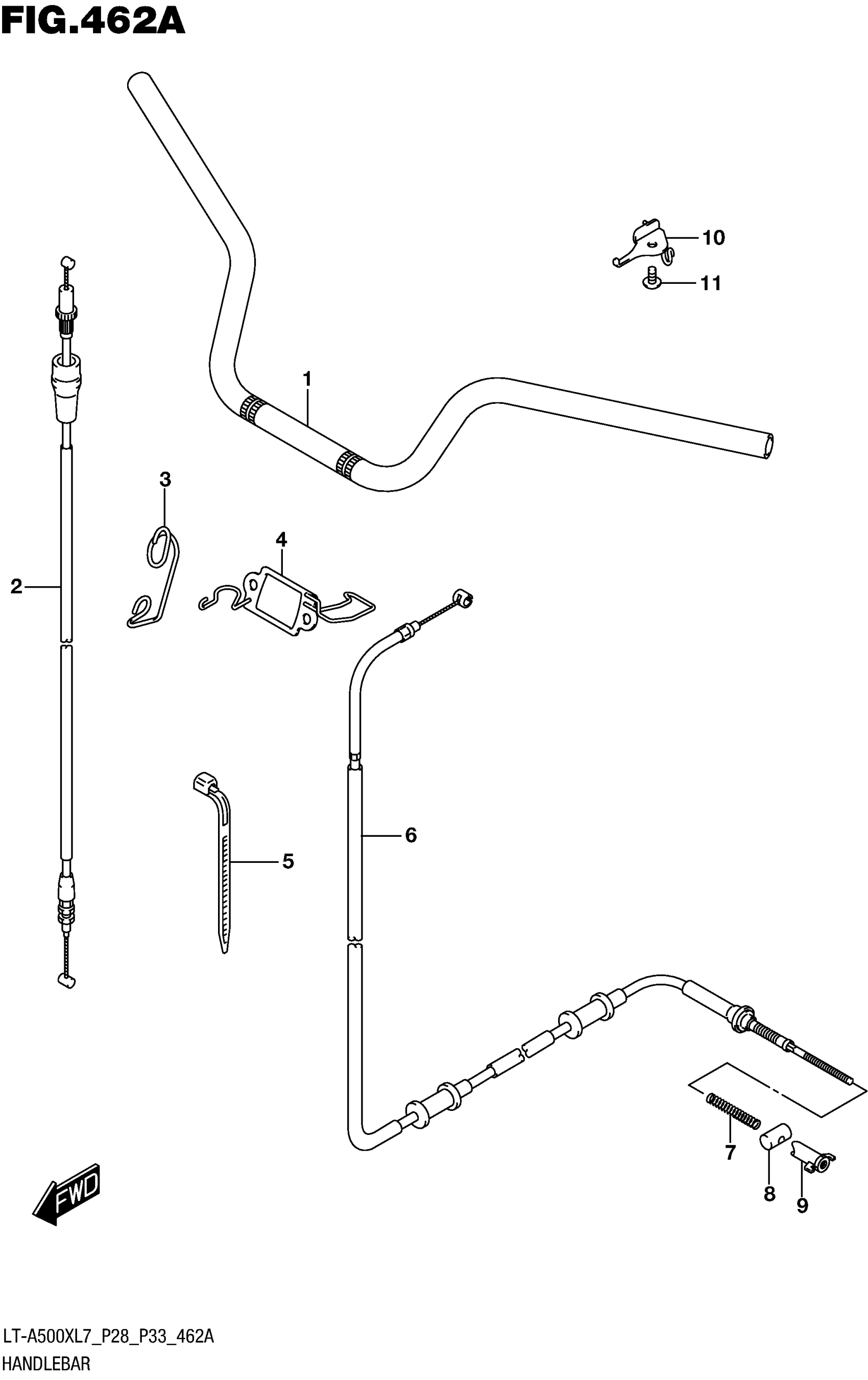

Suzuki LT-A500X AXI (RED, GREEN) (2017) HANDLEBAR Diagram

#

Description
Price

1

HANDLE BAR

56111-31G30

$67.70

2

CABLE ASSY,THRO This part replaces 58300-31G10.

58300-31G11

$52.15

3

GUIDE, THROTTLE CABLE

58626-31G20

$11.08

4

GUIDE, CABLE

58620-31G00

$31.90

5

CLAMP (L:165)

09407-18402

$2.21

6

CABLE,PARKING B This part replaces 58810-31G40.

58810-31G41

$61.55

7

SPRING

09440-08042

$2.80

8

PIN

09209-13006

$4.73

9

NUT

09150-06015

$3.26

10

GUIDE, PARKING CABLE

58620-31G10

$11.54

11

SCREW

03541-0616B

$3.00
